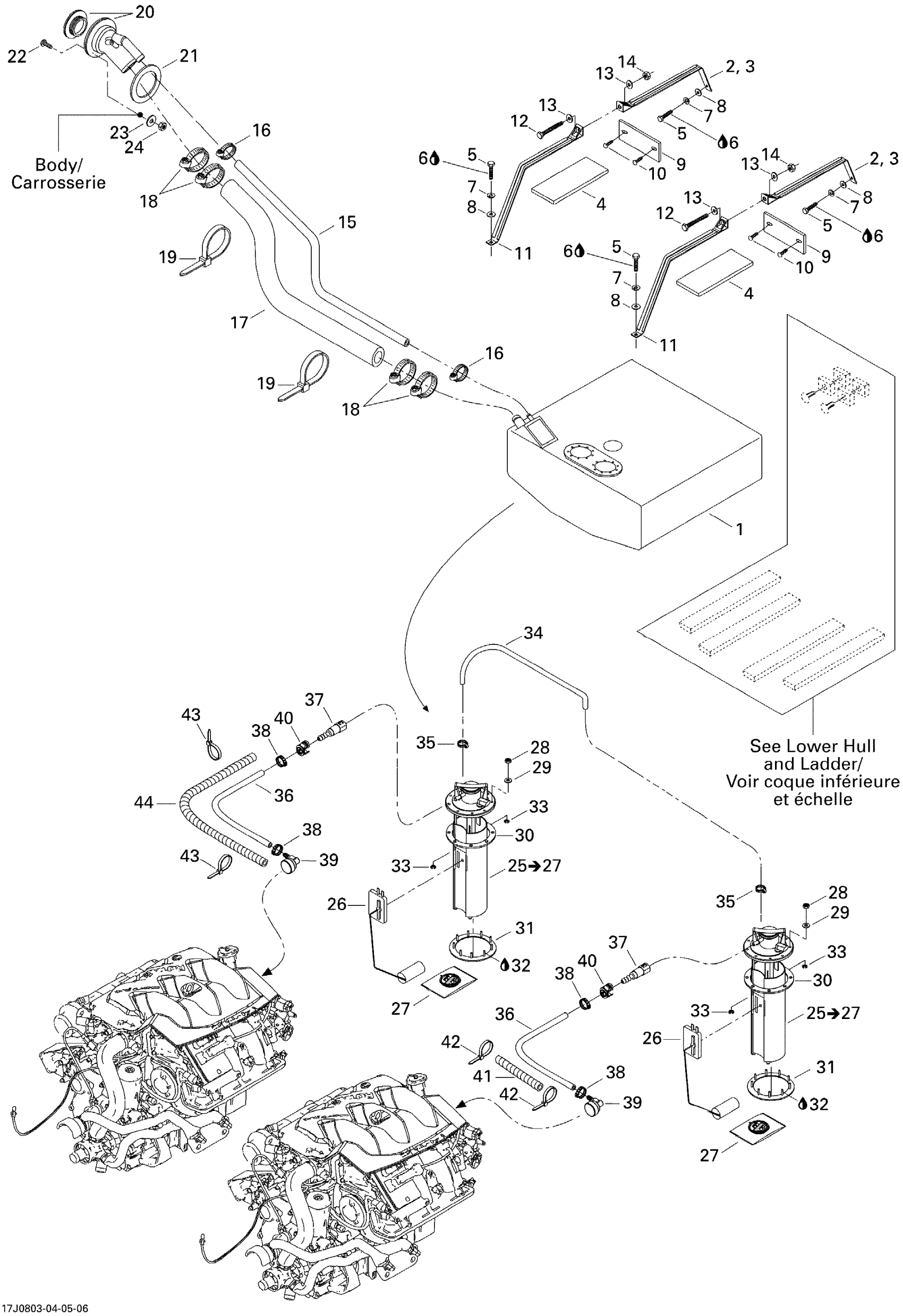

Sea-doo Speedster WAKE 430, 2008 02- Fuel System Diagram
#
1
FUEL TANK 42 GAL - C/U - Call your local BRP dealership This part replaces 204560364.
204560473
Unavailable
2
FUEL TANK STRAP - Call your local BRP dealership
204560235
Unavailable
3
PROTECTOR PAD - Call your local BRP dealership
293830044
Unavailable
4
NEOPRENE PAD - Call your local BRP dealership
204560191
Unavailable
5
Hex. Screw M8 X 30
207183060
$1.58
6
Loctite 271, 10 ml
293800005
$26.99
7
Lock Washer 8 mm, Stainless
234181601
$0.55
8
Flat Washer 8 mm, Stainless
234082600
$2.43
9
MUFFLER RUBBER PAD - Call your local BRP dealership
204060702
Unavailable
10
Black, Dart
293730006
$0.99
11
FUEL TANK STRAP - Call your local BRP dealership
204560270
Unavailable
12
HEX. SCREW M8 X 80 - Call your local BRP dealership
207188060
Unavailable
13
Flat Washer 8 mm, Stainless
234082600
$2.43
14
Hex. Elastic Nut M8
232581600
$1.48
15
HOSE 16 MM - Call your local BRP dealership
204560358
Unavailable
16
NORMA CLAMP - Call your local BRP dealership
293650069
Unavailable
17
FILLER NECK HOSE - Call your local BRP dealership
204560377
Unavailable
18
NORMA CLAMP - Call your local BRP dealership
293650174
Unavailable
19
Tie-Rap 180 mm
414115200
$0.11
20
FILLER NECK - Call your local BRP dealership
204560182
Unavailable
21
SPACER - Call your local BRP dealership This part replaces 275500801.
204560188
Unavailable
22
Phillips Screw M4 X 35
208643560
Unavailable
23
Flat Washer 4 mm
234040600
$0.55
24
Elastic Stop Nut M4
232541600
$1.15
25
FUEL PUMP MODULE ASS'Y - Call your local BRP dealership | Includes 23 to 25
204560418
Unavailable
26
Sensor Level
270600012
Unavailable
27
Fuel Filter, Bosch
219700368
$39.99
28
Elastic Stop Nut 5 mm
232551200
$1.47
29
Flat Washer 5 mm, Stainless
234052400
$2.85
30
Gasket
293250088
$14.99
31
C-Ring, 9 Studs
275500679
$77.49
32
Était/Was 293800038 Loctite 518, 50 ml
219704456
$53.99
33
Circlip 5 mm
293370002
$5.50
34
HOSE 1/4 - Call your local BRP dealership
204560178
Unavailable
35
Tridon Gear Clamp
293650170
$1.99
36
HOSE 5/16 - Call your local BRP dealership
204560396
Unavailable
37
CONNECTOR BOX - Call your local BRP dealership
275500428
Unavailable
38
Torro Hose Clamp
204130212
Unavailable
39
Elbow Fitting 90°
293710105
$14.22
40
STOPPER CONNECTOR - Call your local BRP dealership
275500429
Unavailable
41
SLIT CONDUIT, METER - Call your local BRP dealership
204550028
Unavailable
42
Tie Wrap 142 mm
293750002
$1.25
43
Tie Wrap 142 mm
293750002
$1.25
44
SLIT CONDUIT, METER - Call your local BRP dealership
204550028
Unavailable
