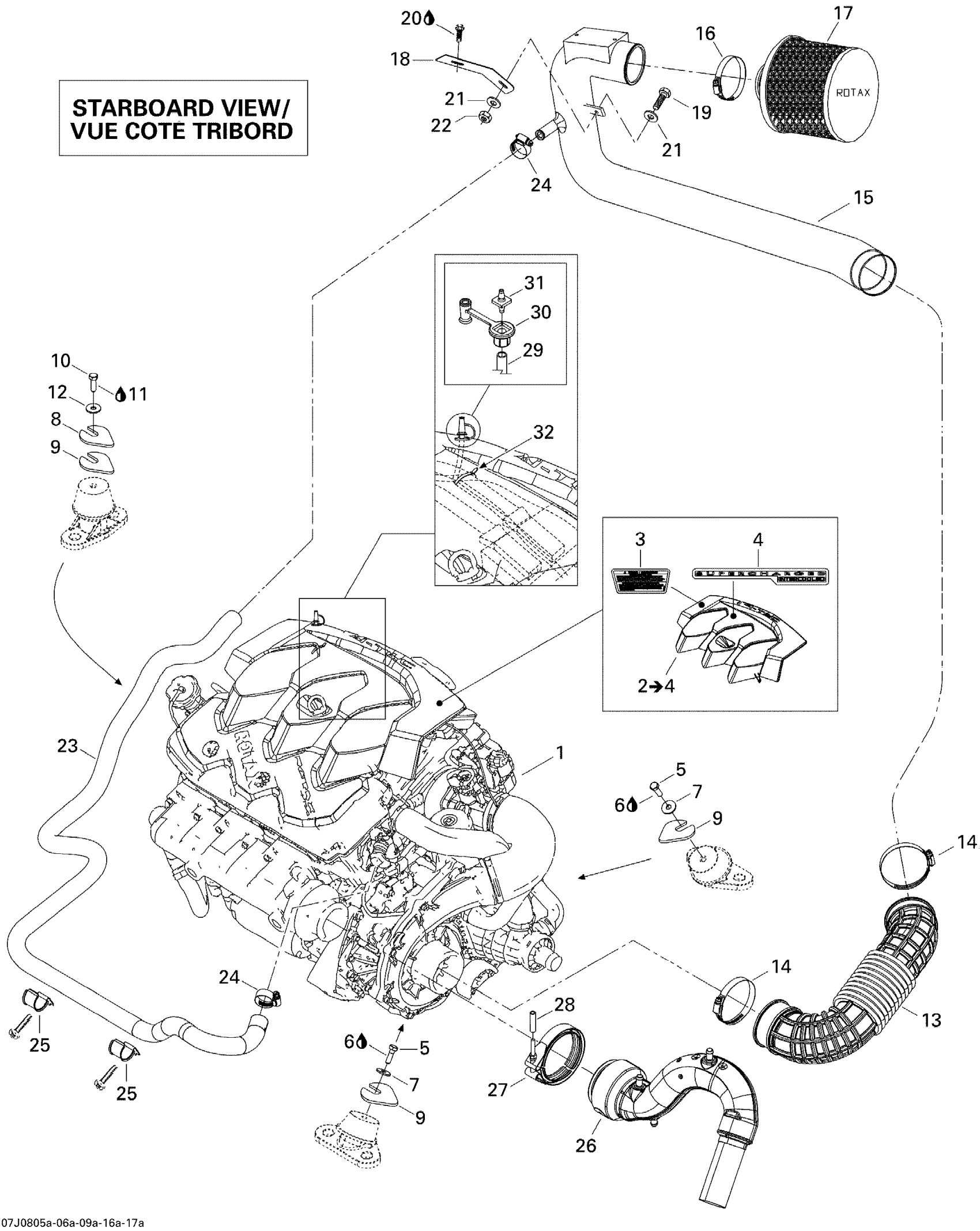

Sea-doo Speedster WAKE 430, 2008 Engine And Air Intake Silencer Edition 1 Diagram

#

Description
Price

1

Engine Long Block This part replaces 420150338.

420150394

$3,999.99

56

Engine Long Block This part replaces 420150338.

420150394

$3,999.99

2

COVER ASS'Y - Call your local BRP dealership | Includes 1 to 3 This part replaces 270000679.

270000677

Unavailable

3

WARNING DECAL, ENGINE OIL LEVEL - Call your local BRP dealership

219902674

Unavailable

4

IDENTIFICATION DECAL, MOTOR SCIC - Call your local BRP dealership

219902676

Unavailable

5

HEX. SCREW M8 X 25 - Call your local BRP dealership

207182560

Unavailable

6

Loctite 243, 10 ml

293800060

$20.77

7

Flat Washer 8 mm, Stainless

234082600

$1.98

8

SHIM 1.3 MM - Call your local BRP dealership

270000025

Unavailable

9

SHIM 0.4 MM - Call your local BRP dealership

270000024

Unavailable

10

HEX. SCREW M8 X 25 - Call your local BRP dealership

207182560

Unavailable

11

Loctite 243, 10 ml

293800060

$20.77

12

Flat Washer 8 mm, Stainless

234082600

$1.98

13

INTAKE HOSE - Call your local BRP dealership | Without Catalyst

273000188

Unavailable

14

TRIDON GEAR CLAMP - Call your local BRP dealership

293650061

Unavailable

15

INTAKE TUBE - Call your local BRP dealership

204250422

Unavailable

16

Tridon Clamp

293650179

$8.81

17

Air Filter This part replaces 204250436.

204250466

$111.77

18

BRACKET - Call your local BRP dealership | Without Catalyst

204250404

Unavailable

19

Hex. Forming Screw M6 X 20

207162060

$1.03

20

ADHESIVE LOCTITE 495 - Call your local BRP dealership

293800021

Unavailable

21

Flat Washer, Stainless/Neoprene

211200055

$0.66

22

Hex. Elastic Stop Nut M6

232561600

$0.92

23

FORMED HOSE - Call your local BRP dealership

270000808

Unavailable

24

Tridon Gear Clamp

293650051

$3.61

25

Retainer

275500664

$10.91

26

EXHAUST PIPE - Call your local BRP dealership

274001049

Unavailable

27

Exhaust Clamp This part replaces 274000959.

274001472

$45.47

28

Polyurethane Hose 10000Mm Long

219704410

$46.12

29

HOSE 3 MM - Call your local BRP dealership

270000469

Unavailable

30

GROMMET CAP - Call your local BRP dealership

293830120

Unavailable

31

CONNECTOR - Call your local BRP dealership

293710107

$0.93

32

Tie Wrap 142 mm

293750002

$0.88
