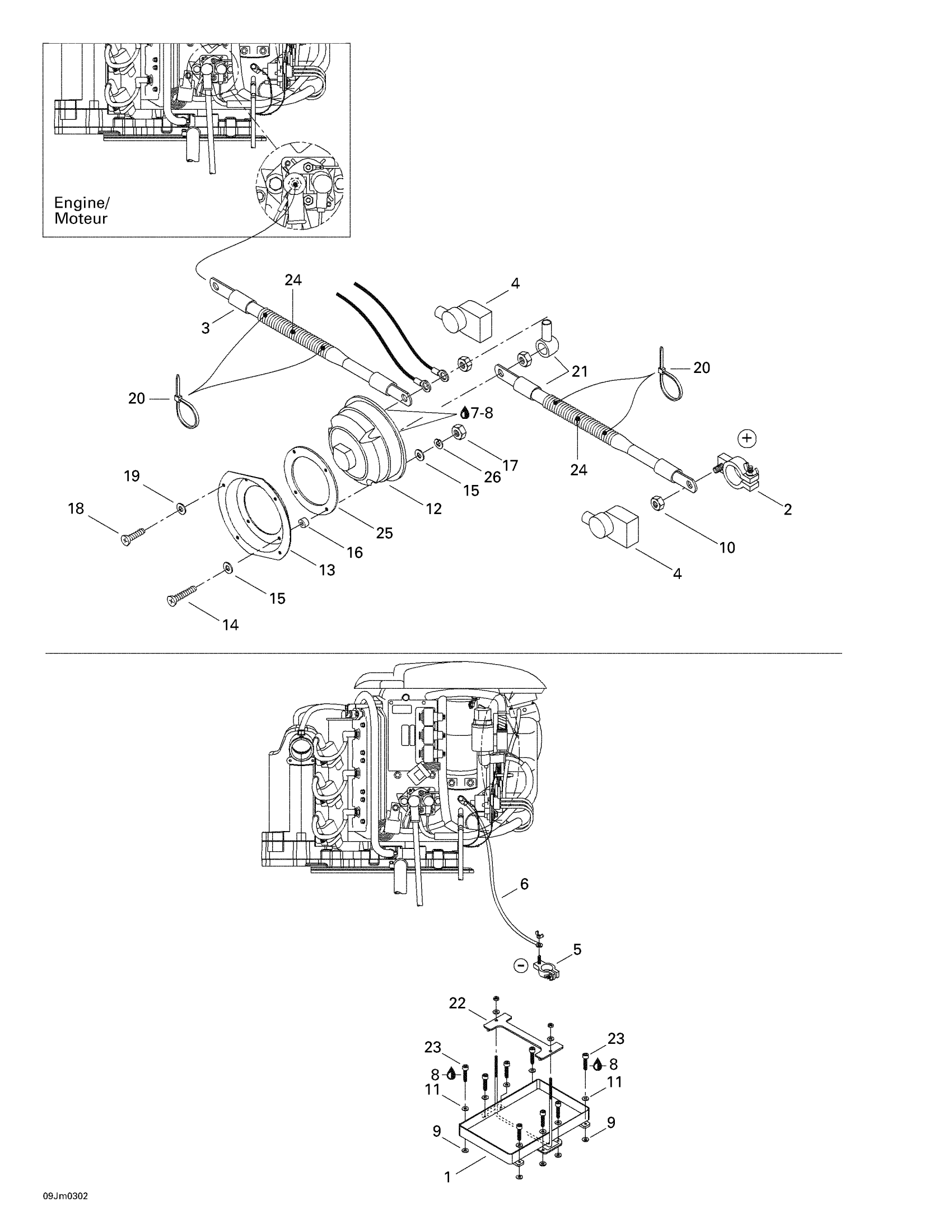

Sea-doo Speedster, 5772, 2003 Electrical System Diagram

#

Description
Price

1

BATTERY SUPPORT - Call your local BRP dealership

204471008

Unavailable

2

POSITIVE BATTERY POLE - Call your local BRP dealership

204470349

Unavailable

3

Positive Cable, Red

204470386

Unavailable

4

Red Boot

204470388

Unavailable

5

NEGATIVE BATTERY POLE - Call your local BRP dealership

204470348

Unavailable

6

Battery Ground Cable

204470389

Unavailable

7

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

8

Loctite 243, 10 ml

293800060

$21.49

9

FLAT WASHER, PLASTIC - Call your local BRP dealership

211200029

Unavailable

10

HEX. NUT 3/8-16 - Call your local BRP dealership

211100063

Unavailable

11

FLAT WASHER - Call your local BRP dealership

204100069

Unavailable

12

BATTERY SWITCH - Call your local BRP dealership

204470814

Unavailable

13

Switch Support

204470251

Unavailable

14

Phillips Screw M5 X 25

208455060

Unavailable

15

Flat Washer M5, Stainless

234051600

$0.77

16

NYLON SPACER - Call your local BRP dealership

204470330

Unavailable

17

Hex. Nut M5

232051600

$1.15

18

PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership

209642560

Unavailable

19

Flat Washer 4 mm, Stainless

234041600

$1.15

20

Tie Wrap 94 mm | 4X4

293750001

$1.03

21

Positive Switch Cable

204470387

Unavailable

22

TOP BATTERY SUPPORT - Call your local BRP dealership

204471290

Unavailable

23

Socket Head Screw M6 X 25

205062560

$1.69

24

SLIT CONDUIT, METER - Call your local BRP dealership

204550015

Unavailable

25

SWITCH ADAPTOR - Call your local BRP dealership

204470813

Unavailable

26

Helical Lock Washer M5

234151601

$1.15
