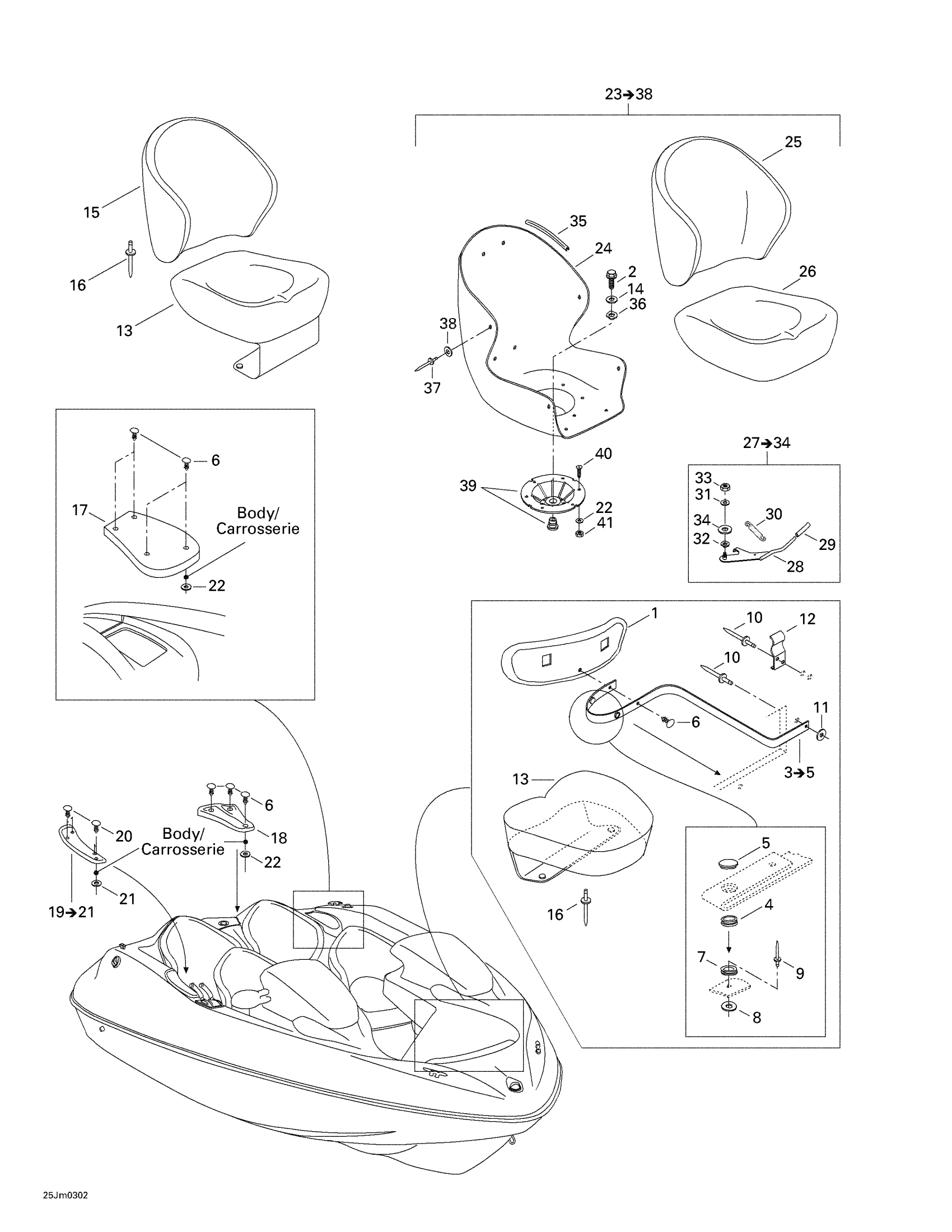

Sea-doo Speedster, 5772, 2003 09- Seats Diagram
#
1
Front Backrest Ass'y, Metallic Silver
204612492
Unavailable
2
SCREW-SHOULDER - Call your local BRP dealership
211000172
Unavailable
3
Retaining Strap Ass'y | Includes 2 to 4
204611446
Unavailable
4
SNAP BASE - Call your local BRP dealership | SE
204000083
Unavailable
5
SNAP COVER - Call your local BRP dealership
204000085
Unavailable
6
Black, Dart
293730006
$0.99
7
BOTTOM SNAP - Call your local BRP dealership
204000084
Unavailable
8
Flat Washer M3, Stainless
234032600
$0.55
9
RIVET_POP 1/8 X ,625 - Call your local BRP dealership
293150023
Unavailable
10
Pop Rivet 3/16"
293150043
$2.09
11
Flat Washer 5 mm, Stainless
234052600
$0.77
12
SEAT SUPPORT - Call your local BRP dealership
204613998
Unavailable
13
Seat Cushion , Metallic Silver
204612498
Unavailable
14
FLAT WASHER - Call your local BRP dealership
211200058
Unavailable
15
Backrest Cushion (Metallic Silver)
295501060
Unavailable
16
Pop Rivet 3/16"
293150013
$1.37
17
RH Armrest Ass'y, Orange
204612518
Unavailable
LH Armrest Ass'y, Orange
204612519
Unavailable
18
Center Armrest, Metallic Silver
204612521
Unavailable
19
Orange, Driver Armrest | Includes 18 to 20
204612523
Unavailable
20
Black, Dart
293730006
$0.99
21
Flat Washer M6, Stainless
234062600
$0.77
22
Flat Washer M6, Stainless
234062600
$0.77
23
Seat Ass'y | Includes 23 - 38.
204612525
Unavailable
24
Seat Base
204611146
Unavailable
25
Backrest Cushion, Metallic Silver
204612526
Unavailable
26
Seat Cushion , Metallic Silver
204612498
Unavailable
27
Lever Arm Ass’y
204610523
Unavailable
28
Lever Arm
204610524
Unavailable
29
Handle
204610348
Unavailable
30
SPRING - Call your local BRP dealership
204610349
Unavailable
31
Stainless Flat Washer M6
234061600
$0.33
32
Washer
211200059
Unavailable
33
Hex. Elastic Stop Nut M6
232561600
$1.15
34
Not Available As Spare Part - Friction Washer
Unavailable
35
TRIM, BLACK - Call your local BRP dealership
204610371
Unavailable
36
WASHER - Call your local BRP dealership
293200056
Unavailable
37
RIVET_POP 3/16 - Call your local BRP dealership This part replaces 204130014.
293150201
Unavailable
38
FLAT WASHER #10 - Call your local BRP dealership | Except STD
204100059
Unavailable
39
SWIVEL PLATE - Call your local BRP dealership
204610513
Unavailable
40
PHILLIPS SCREW M6 X 40 - Call your local BRP dealership
208564060
Unavailable
41
Hex. Elastic Stop Nut M6
232561600
$1.15
