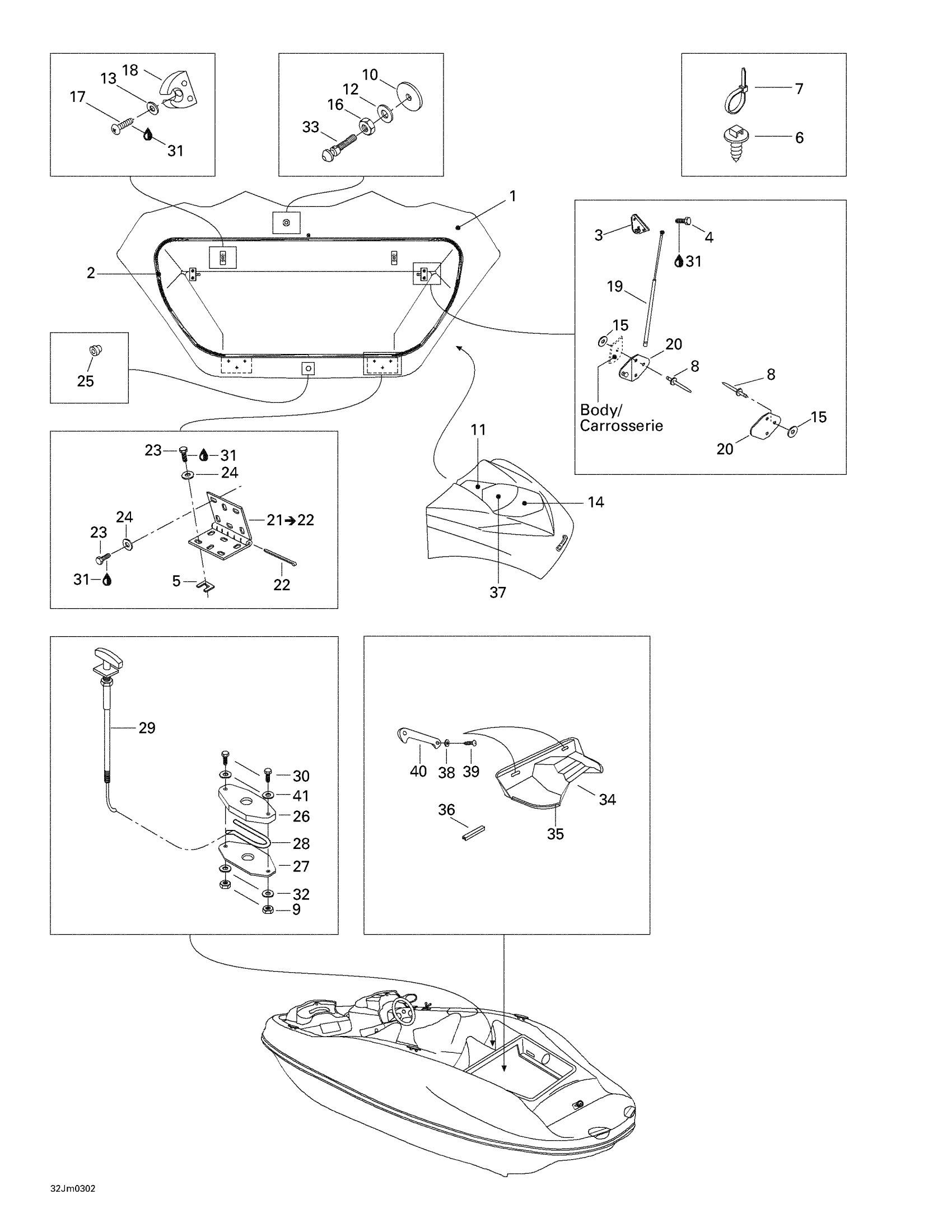

Sea-doo Speedster, 5772, 2003 Engine Compartment Diagram

#

Description
Price

1

Engine Cover

204071483

Unavailable

2

Was 293200017 Neoprene Seal

219704365

$149.99

3

Shock Bracket

204073074

$27.99

4

Hex. Screw M4 X 16 | Europe

207141660

$1.47

5

SPACER 3.2 MM - Call your local BRP dealership

204070047

Unavailable

SPACER 1.6 MM - Call your local BRP dealership

204070088

Unavailable

6

Mount Dart

293730040

$1.04

7

Tie-Rap 180 mm

414115200

$0.11

Tie Wrap 368 mm

293750008

$1.04

8

Pop Rivet 3/16"

293150043

$2.09

9

Hex. Elastic Stop Nut M6

232561600

$1.15

10

RUBBER WASHER - Call your local BRP dealership

291000628

Unavailable

11

Front Engine Cover Carpet

204070653

Unavailable

12

Flat Washer 10 mm, Stainless

234002600

$2.22

13

Flat Washer 4 mm

234040600

$0.55

14

Step Engine Cover Step Carpet

204070655

Unavailable

15

Flat Washer M5, Stainless

234051600

$0.77

16

Hex. Jam Nut M10

232100600

$2.22

17

PHILLIPS SCREW M4 X 25 - Call your local BRP dealership

208642560

Unavailable

18

Pole Support

291000642

Unavailable

19

RH RETAINER CYLINDER - Call your local BRP dealership

204071052

Unavailable

20

Body Cylinder Support

204070252

Unavailable

21

HINGE ASS'Y - Call your local BRP dealership | Includes 19 to 21

204070127

Unavailable

22

Cotter Pin M2.5 X 12

204070205

Unavailable

23

Hex. Screw M6 X 25

207162560

$1.47

24

Stainless Flat Washer M6

234061600

$0.33

25

GROMMET - Call your local BRP dealership

293720017

Unavailable

26

LATCH BASE - Call your local BRP dealership

204070037

Unavailable

27

LATCH COVER - Call your local BRP dealership

204070036

Unavailable

28

SPRING - Call your local BRP dealership

204070038

Unavailable

29

LATCH CABLE - Call your local BRP dealership

204070049

Unavailable

30

Hex. Screw M6 X 35

207163560

$1.49

31

Loctite 243, 10 ml

293800060

$21.49

32

Flat Washer M6, Stainless

234062600

$0.77

33

Latch Stud

204700001

Unavailable

34

Access Cover

204050420

Unavailable

35

Seal Tray 1000Mm Long

219704368

$13.99

36

Trim, Meter

204050213

Unavailable

37

Central Engine Cover Carpet

204070654

Unavailable

38

Flat Washer 4 mm, Stainless

234042600

$1.15

39

Hex. Flange Screw K40 X 16

241141660

$1.48

40

Black, Handle - Call your local BRP dealership

204050159

Unavailable

41

Stainless Flat Washer M6

234061600

$0.33
