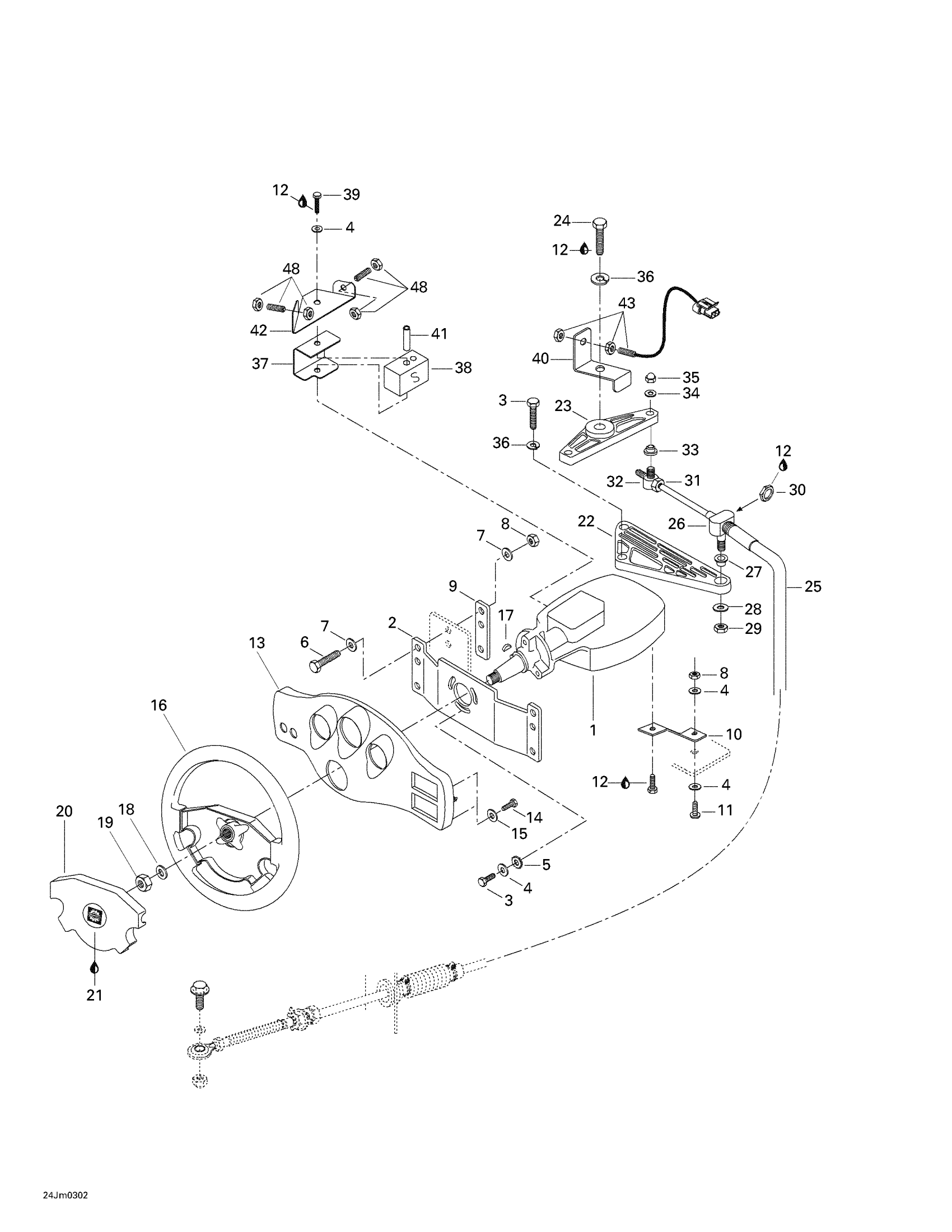

Sea-doo Speedster, 5772, 2003 07- Steering System Diagram
#
1
HELM ASS'Y - Call your local BRP dealership
204390244
Unavailable
2
Steering Support
204390247
Unavailable
3
HEX. SCREW 1/4-20 X 3/4?, SCOTCH GRIP - Call your local BRP dealership
211000050
Unavailable
4
Flat Washer M6, Stainless
234062600
$0.77
5
Serrated Lock Washer 8 mm
234481608
$1.15
6
Hex. Screw M6 X 30
207163060
$1.48
7
Stainless Flat Washer M6
234061600
$0.33
8
Hex. Elastic Stop Nut M6
232561600
$1.15
9
Reinforcement Plate
204390130
Unavailable
10
Steering Support
204390243
Unavailable
11
PHILLIPS SCREW M6 X 25 - Call your local BRP dealership
208662560
Unavailable
12
Loctite 243, 10 ml
293800060
$21.49
13
Fascia
204390209
Unavailable
14
Hex. Flange Screw K40 X 25
241142560
$2.64
15
Flat Washer 4 mm, Stainless
234042600
$1.15
16
STEERING, BLACK - Call your local BRP dealership
204390440
Unavailable
17
WOODRUFF KEY - Call your local BRP dealership
277000384
Unavailable
18
FLAT WASHER, STAINLESS - Call your local BRP dealership
211200006
Unavailable
19
LOCK NUT 1/2-20 - Call your local BRP dealership
211100021
Unavailable
20
Black, Steering Center
204390076
Unavailable
21
Était Was 413705800 Loctite 414 , 29.5 c.c
219704463
$27.99
22
Cable Support
204390125
Unavailable
23
HELM ARM - Call your local BRP dealership
204390250
Unavailable
24
HEX. SCREW 1/4-20 X 1?, SCOTCH GRIP - Call your local BRP dealership
211000054
Unavailable
25
STEERING CABLE - Call your local BRP dealership
204390212
Unavailable
26
PIVOT 3/8? - Call your local BRP dealership
277000461
Unavailable
27
Flanged Bushing
293350014
$12.99
28
Flat Washer 10 mm, Stainless
234001600
$1.15
29
LOCK NUT - Call your local BRP dealership
211100024
Unavailable
30
HEX. JAM NUT 5/8-18 - Call your local BRP dealership
204390053
Unavailable
31
HEX. NUT 5/16-24 - Call your local BRP dealership | Single HO Engine Models
277000439
Unavailable
32
PIVOT - Call your local BRP dealership
277000456
Unavailable
33
BUSHING - Call your local BRP dealership
293350012
Unavailable
34
FLAT WASHER - Call your local BRP dealership
211200019
Unavailable
35
NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership
212000005
Unavailable
36
Lock Washer 1/4”
211200025
$1.29
37
Bumper Support
204390245
Unavailable
38
Bumper
204390246
Unavailable
39
HEX. SCREW 1/4-20 X 2-1/2 - Call your local BRP dealership
204100014
Unavailable
40
Switch Mount
204390376
Unavailable
41
Bushing
204130004
Unavailable
42
Cam Switch
204390339
Unavailable
43
LOW SPEED CONTROL SENSOR ASS'Y - Call your local BRP dealership | Includes 46 to 50
204470631
Unavailable
44
Female Terminal Housing
204470634
Unavailable
45
Terminal Support
204470635
Unavailable
46
Wire Seal
204470641
Unavailable
47
Female Terminal
204470481
Unavailable
48
Low Speed Control Actuator
204470632
$42.99
