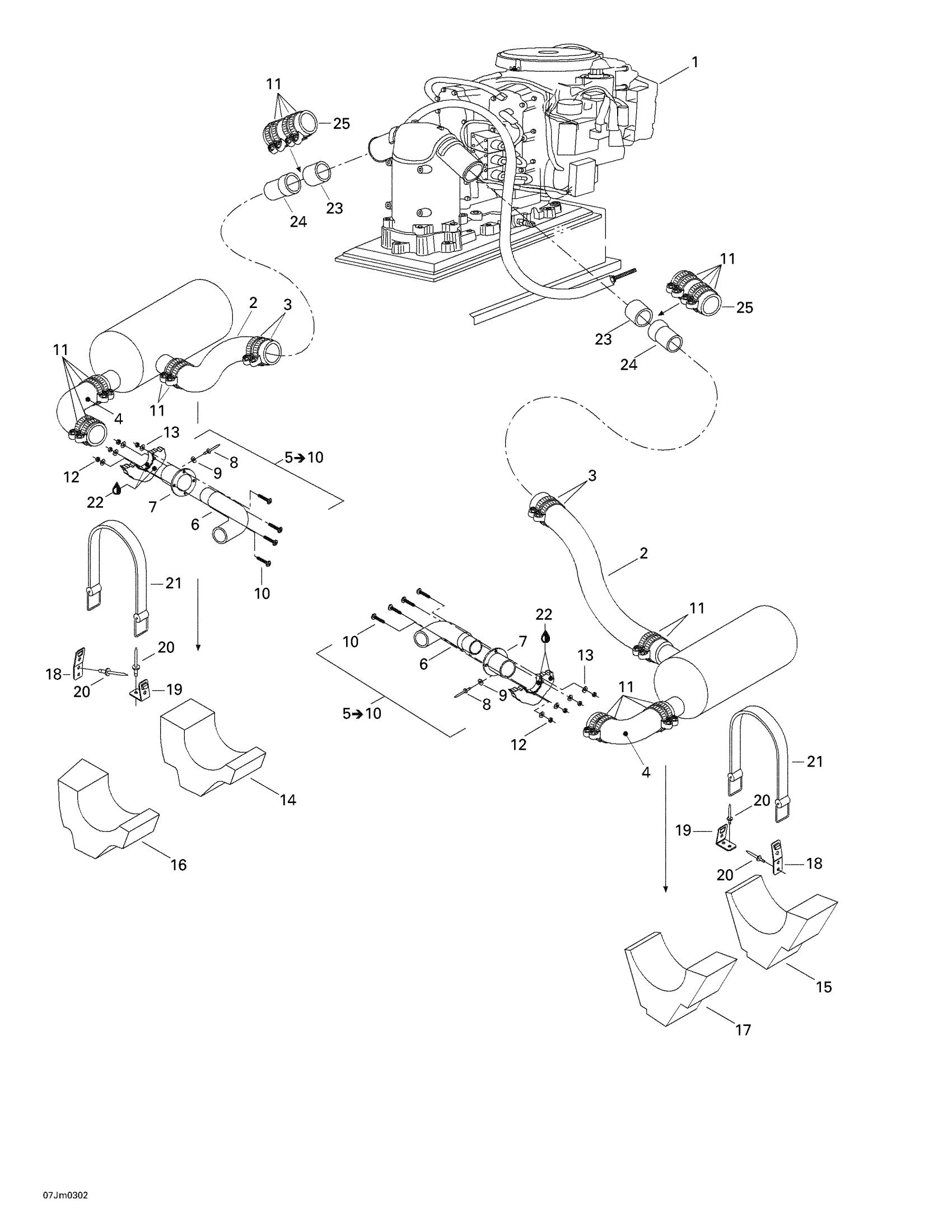

Sea-doo Speedster, 5772, 2003 01- Exhaust System Diagram
#
Description
Price
1
Not Available As Spare Part - Friction Washer
Unavailable
2
Exhaust Hose | 5171 (240 EFI)
204340406
Unavailable
3
Tridon Clamp
293650064
$8.29
4
Exhaust Hose
204340297
Unavailable
5
Not Available As Spare Part - Friction Washer
Unavailable
6
Exhaust Hose 90°
204340250
Unavailable
7
Exhaust Outlet
204340229
Unavailable
8
Pop Rivet 3/16"
293150043
$2.09
9
Flat Washer 5 mm, Stainless
234052600
$0.77
10
PHILLIPS SCREW M6 X 35 - Call your local BRP dealership
208663560
Unavailable
11
Tridon Clamp
293650112
$12.99
12
Hex. Elastic Stop Nut M6
232561600
$1.15
13
Flat Washer M6, Stainless
234062600
$0.77
14
Front Muffler Support (Port)
204340237
Unavailable
15
Front Muffler Support (Starboard)
204340199
Unavailable
16
Rear Muffler Support (Port)
204340238
Unavailable
17
Rear Muffler Support (Starboard)
204340200
Unavailable
18
STRAP CLIP - Call your local BRP dealership
293850024
Unavailable
19
Strap Clip 90°
204060017
Unavailable
20
Pop Rivet 3/16"
293150088
$0.99
21
STRAP - Call your local BRP dealership
293850022
Unavailable
22
Silicone Sealant 51388, 300 ml
296000309
$36.99
23
Exhaust Spacer
204340403
$30.49
24
Exhaust Adaptor
204340402
$59.49
25
Exhaust Hose, Meter
204340256
Unavailable
