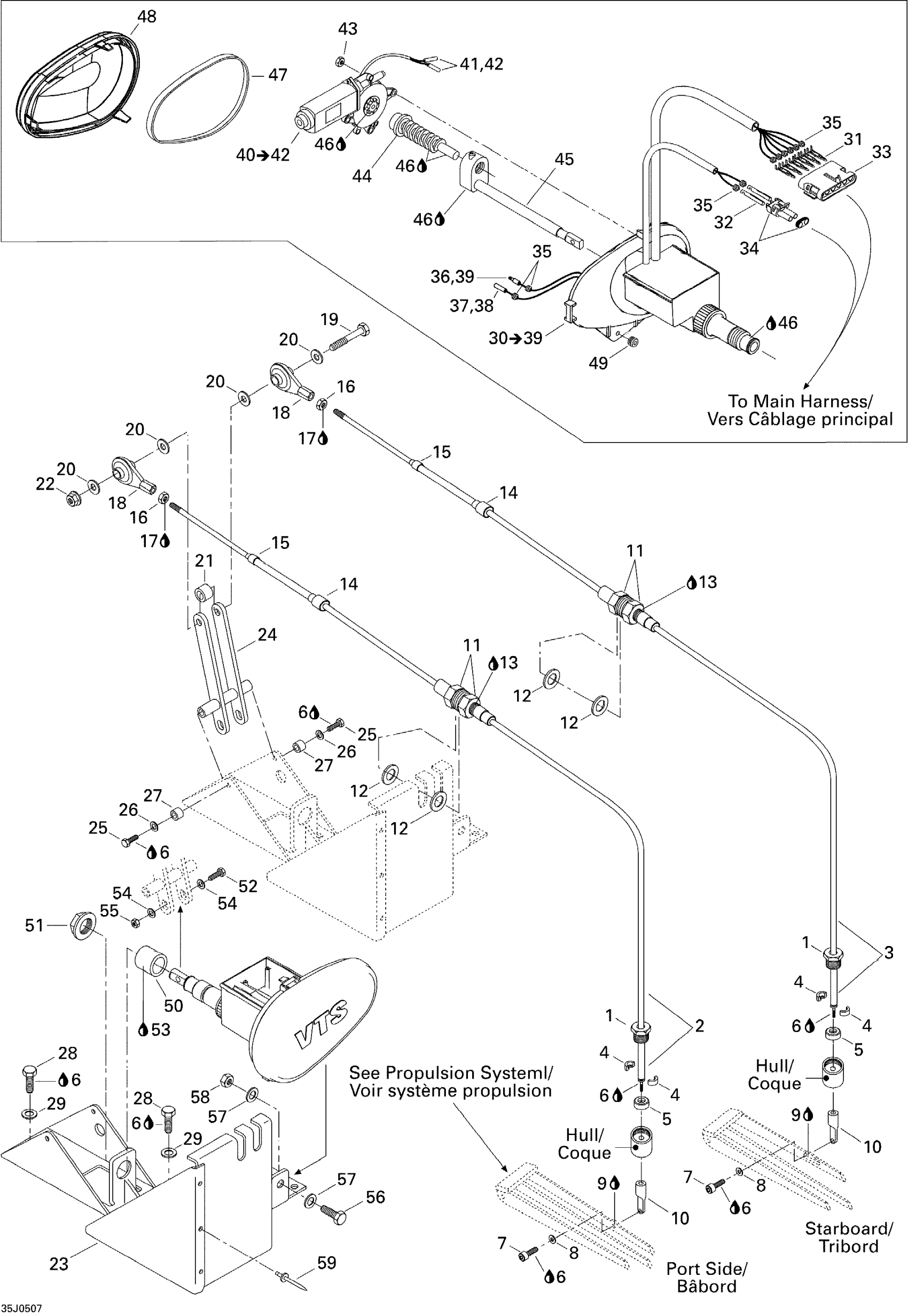

Sea-doo Speedster 200 Twin 4-TEC, 2005 Weedless System Diagram

#

Description
Price

1

Steering Cable Lock This part replaces 277000784.

277001729

$11.96

2

LH Weedless Cable, Port Side

204200113

Unavailable

3

RH Weedless Cable, Starboard

204200114

Unavailable

4

HALF RING - Call your local BRP dealership

204200009

Unavailable

5

THRU HULL SEAL - Call your local BRP dealership

204200118

Unavailable

6

Loctite 243, 10 ml

293800060

$21.49

7

Pivot Socket Screw M5 x 0.8

204100138

Unavailable

8

FLAT WASHER 5 MM - Call your local BRP dealership

234052100

$1.78

9

Jet Pump Bearing Grease, 110 G

293550032

Unavailable

10

Joint

204200006

Unavailable

11

Hex. Jam Nut

212100006

Unavailable

12

Flat Washer

213200017

Unavailable

13

Loctite 243, 10 ml

293800060

$21.49

14

Boot, Large

277000473

Unavailable

15

Boot, Small

277000466

Unavailable

16

Hex. Nut

212100005

$1.03

17

Loctite 243, 10 ml

293800060

$21.49

18

BALL JOINT - Call your local BRP dealership

277000153

Unavailable

19

Hex. Screw M6 X 70

207067060

$5.30

20

Flat Washer M6, Stainless

234062600

$0.73

21

NYLON SPACER - Call your local BRP dealership

204200112

Unavailable

22

Hex. Elastic Stop Nut M6

232561600

$1.06

23

Weedless Support Ass'y

204471003

Unavailable

24

Pivot-arm Ass'y

204471006

Unavailable

25

Hex. Screw M6 X 16

207161660

$1.40

26

Stainless Flat Washer M6

234061600

$0.28

27

SPACER 6.7 MM - Call your local BRP dealership

277000584

Unavailable

28

Hex. Screw M6 X 30

207163060

$1.43

29

Stainless Flat Washer M6

234061600

$0.28

30

V.T.S. HOUSING ASSY - Call your local BRP dealership | Includes 27 to 36

278001606

Unavailable

31

Male Terminal | XT Models

278000222

$2.93

32

Female Terminal

278000223

$2.93

33

FEMALE CONNECTOR, 6 CIRCUITS - Call your local BRP dealership

278000156

Unavailable

34

Male Connector, 2 Circuits

278000220

$12.66

35

Wire Seal

278000218

$4.00

36

Insulated Sheath

278001008

$3.10

37

Insulated Sheath

278001007

$3.12

38

Female Terminal | DS 650 X

278001009

$2.93

39

Male Terminal

278000230

$4.00

40

Windshield Motor

278002579

$211.91

41

Insulation Sheath

278000231

$4.75

42

Male Terminal

278000230

$4.00

43

Hex. Elastic Stop Nut M6

232561600

$1.06

44

Worm Screw

278000428

$13.24

45

Sliding Block Ass’y

278001698

$39.52

46

Synthetic Grease, 400 G

293550010

Unavailable

47

GASKET - Call your local BRP dealership

293200027

Unavailable

48

V.T.S. COVER - Call your local BRP dealership

278000595

Unavailable

49

GROMMET - Call your local BRP dealership

293720015

Unavailable

50

ABS SPACER - Call your local BRP dealership

204470857

Unavailable

51

SPECIAL NUT M27 - Call your local BRP dealership

211100020

Unavailable

52

Hex. Screw M6 X 40

207164060

$3.15

53

Jet Pump Bearing Grease, 110 G

293550032

Unavailable

54

Flat Washer M6, Stainless

234062600

$0.73

55

Hex. Elastic Stop Nut M6

232561600

$1.06

56

Hex. Screw M8 X 30

207183060

$1.49

57

Flat Washer M8, Stainless

234080600

$1.43

58

Hex. Elastic Nut M8

232581600

$1.43

59

Pop Rivet 3/16"

293150039

$1.31
