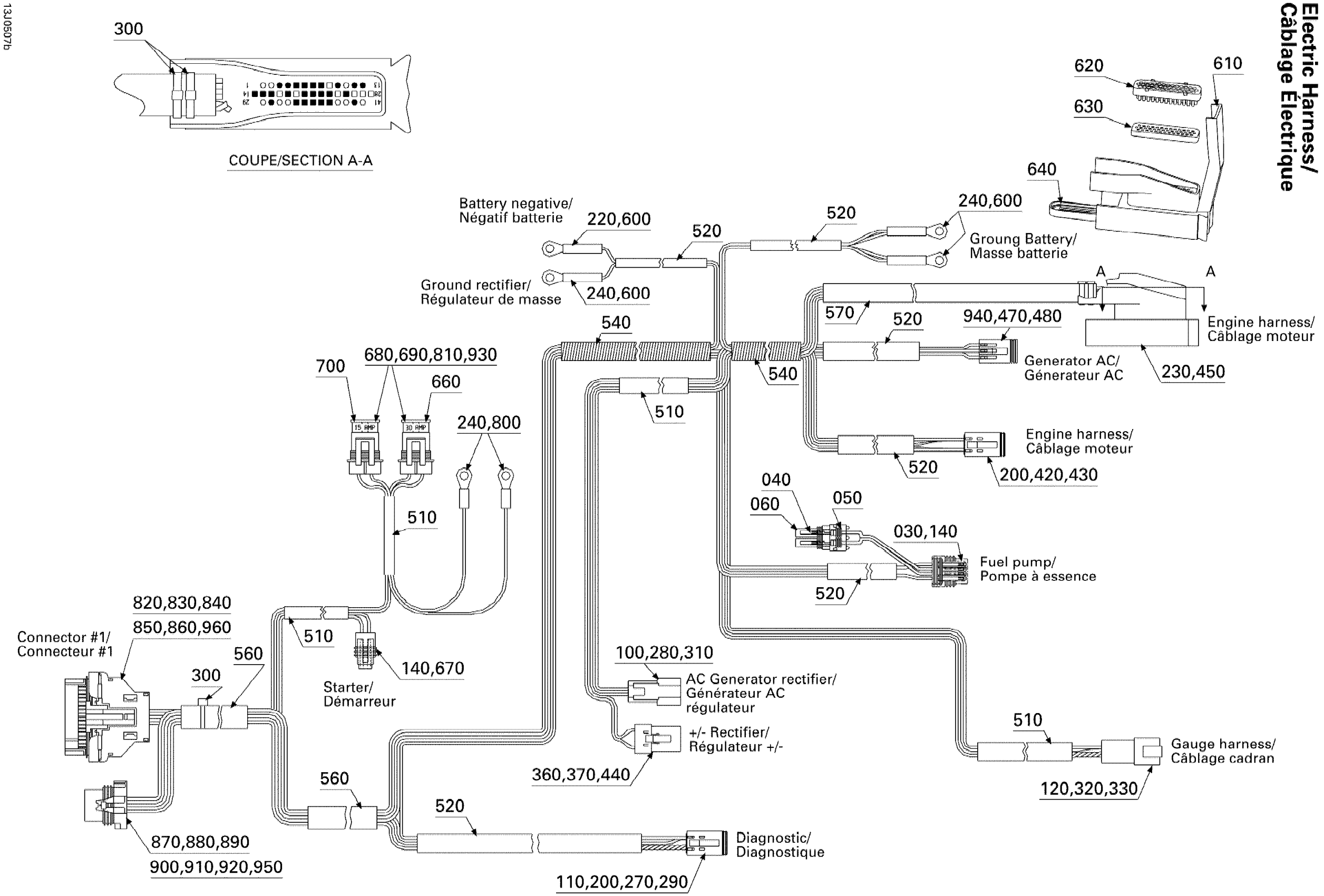

Sea-doo Speedster 200 Twin 4-TEC, 2005 Electrical Harness 2 Diagram

#

Description
Price

1

Engine Harness | Starboard

204470811

Unavailable

30

MALE CONNECTOR, 4 CIRCUITS - Call your local BRP dealership

278001308

Unavailable

40

Female Terminal

278000223

$3.19

50

Wire Seal

278000218

$4.39

60

Male Connector, 2 Circuits

278000220

$15.49

100

Male Terminal

515175823

$4.55

110

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

$21.99

120

Male Terminal

278000631

$4.39

140

Female Terminal

278001114

$3.19

200

Female Terminal

278000632

$2.09

220

Open Barrel Terminal

278001392

$4.79

230

MALE HOUSING, 41 CIRCUITS - Call your local BRP dealership

278001751

Unavailable

240

Open Barrel Terminal

278001392

$4.79

270

Sealing Cap

293000052

$3.19

280

Male Lock, 3 Circuits

409207600

$3.19

290

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable

300

Tie Wrap 142 mm

293750002

$1.25

310

Male Housing

278002378

$13.99

320

Male Connector, 12 Circuits

409015800

Unavailable

330

MALE LOCK, 12 CIRCUITS - Call your local BRP dealership

409015600

Unavailable

360

Female Terminal Housing, 2 Circuits

278001673

$23.49

370

Female Lock, 2 Circuits

278001671

$3.58

420

Male Connector, 4 Circuits | CE

278000739

$19.49

430

Male Lock, 4 Circuits | CE

278000738

$3.09

440

Female Terminal

515175567

$7.69

450

FEMALE TERMINAL - Call your local BRP dealership

278001750

Unavailable

470

CONNECTOR_FEMALE 3 CAVITIES - Call your local BRP dealership

278002375

$30.99

480

Female Lock

409207200

$4.39

510

Not Available As Spare Part - Friction Washer

Unavailable

520

Not Available As Spare Part - Friction Washer

Unavailable

540

Not Available As Spare Part - Friction Washer

Unavailable

560

Not Available As Spare Part - Friction Washer

Unavailable

570

Not Available As Spare Part - Friction Washer

Unavailable

600

Not Available As Spare Part - Friction Washer

Unavailable

610

Not Available As Spare Part - Friction Washer

Unavailable

620

Not Available As Spare Part - Friction Washer

Unavailable

630

Not Available As Spare Part - Friction Washer

Unavailable

640

Not Available As Spare Part - Friction Washer

Unavailable

660

Fuse, 20 Amperes

409003900

$3.28

670

Male Connector, 2 Circuits

278001113

$16.86

680

Fuse Holder

278001325

$8.79

690

Female Terminal

710000357

$7.69

700

Fuse, 15 Amperes

278000343

$3.28

800

Not Available As Spare Part - Friction Washer

Unavailable

810

Fuse Holder Cap

278001326

$7.69

820

Not Available As Spare Part - Friction Washer

Unavailable

830

SEAL WIRE - Call your local BRP dealership

710000394

Unavailable

840

Not Available As Spare Part - Friction Washer

Unavailable

850

FEMALE HOUSING - Call your local BRP dealership

710000395

Unavailable

860

Female Terminal

515175806

$0.99

870

Not Available As Spare Part - Friction Washer

Unavailable

880

Not Available As Spare Part - Friction Washer

Unavailable

890

Not Available As Spare Part - Friction Washer

Unavailable

900

Wire Seal

278000218

$4.39

910

Not Available As Spare Part - Friction Washer

Unavailable

920

WIRE SEAL - Call your local BRP dealership

278001505

Unavailable

930

Cushion

278000805

$3.28

940

FEMALE TERMINAL - Call your local BRP dealership

278001661

Unavailable

950

Not Available As Spare Part - Friction Washer

Unavailable

960

Plug

515175812

$2.19
