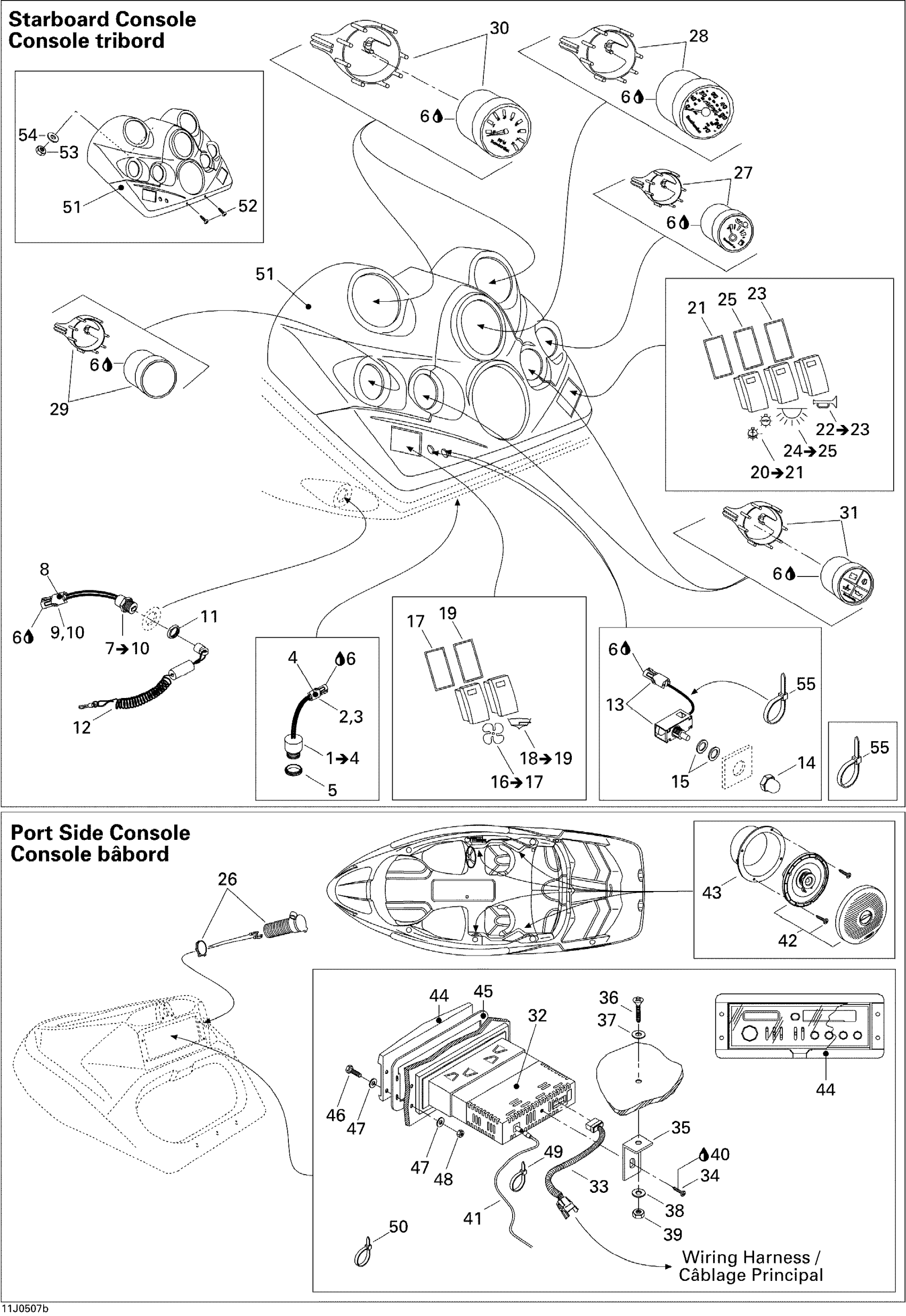

Sea-doo Speedster 200 Twin 4-TEC, 2005 Electrical Accessories 2 Diagram

#

Description
Price

1

Buzzer Ass'y

204470913

$92.99

2

Male Terminal | XT Models

278000222

$3.19

3

Wire Seal

278000218

$4.39

4

Female Housing, 2 Circuits

278000217

$9.59

5

Buzzer Nut

278000707

Unavailable

6

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

7

Safety Switch This part replaces 278002325.

278002773

$114.99

8

Male Housing, 3 Circuits

278000273

$9.59

9

Wire Seal

278000218

$4.39

10

Female Terminal

278000223

$3.19

11

Safety Nut (DESS Switch)

278002963

$3.28

12

Safety Lanyard, Antitheft This part replaces 278001543.

278002199

$84.99

13

IGNITION SWITCH - Call your local BRP dealership

278000621

Unavailable

14

IGNITION SWITCH CAP, RED - Call your local BRP dealership

278000565

Unavailable

15

FLAT WASHER - Call your local BRP dealership

204100027

Unavailable

16

VENTILATION SWITCH ASS'Y - Call your local BRP dealership

204470011

Unavailable

17

Gasket

204470132

Unavailable

18

BILGE PUMP SWITCH ASS'Y - Call your local BRP dealership

204470099

Unavailable

19

Gasket

204470132

Unavailable

20

LIGHT SWITCH ASS'Y - Call your local BRP dealership

204470100

Unavailable

21

Gasket

204470132

Unavailable

22

HORN SWITCH ASS'Y - Call your local BRP dealership

204470101

$49.99

23

Gasket

204470132

Unavailable

24

COURTESY LIGHT SWITCH ASS'Y - Call your local BRP dealership

204470102

Unavailable

25

Gasket

204470132

Unavailable

26

DC Outlet

710001248

$37.99

27

FUEL GAUGE - Call your local BRP dealership

204470956

Unavailable

28

Speed Gauge

204470957

$479.99

29

GAUGE CAP - Call your local BRP dealership

204470969

Unavailable

30

TACHOMETER GAUGE - Call your local BRP dealership

204470958

$409.99

31

ENGINE WARNING GAUGE - Call your local BRP dealership

204470959

Unavailable

32

Compact Disk Stereo

204470946

Unavailable

33

Stereo Adaptor Harness

204470930

Unavailable

34

Pan Head Screw M5x8

204100148

Unavailable

35

RADIO SUPPORT - Call your local BRP dealership

204470837

Unavailable

36

PHILLIPS SCREW M6 X 20 - Call your local BRP dealership

208662060

Unavailable

37

Stainless Flat Washer M6

234061600

$0.33

38

Flat Washer M6, Stainless

234062600

$0.77

39

Hex. Elastic Stop Nut M6

232561600

$1.15

40

Loctite 243, 10 ml

293800060

$21.49

41

Antenna

204470931

Unavailable

42

Speaker, White

204470948

Unavailable

43

SPEAKER COVER ASS'Y - Call your local BRP dealership

204470982

Unavailable

44

Radio Cover

204470266

Unavailable

45

RADIO COVER GASKET - Call your local BRP dealership

204470257

Unavailable

46

Socket Screw M4 X 25

205442560

$1.15

47

Flat Washer 4 mm

234040600

$0.55

48

Elastic Stop Nut M4

232541600

$1.15

49

Tie Wrap 94 mm | 4X4

293750001

$1.03

50

Tie Wrap 142 mm

293750002

$1.25

51

Fascia Ass'y | Speedster , TOWER

204470997

Unavailable

52

SCREW-TAPP.TRUSS HD.PH.M4.2X25 - Call your local BRP dealership

202000203

Unavailable

53

NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership

212000005

Unavailable

54

Flat Washer 8 mm, Stainless

234082600

$2.43

55

Tie Wrap 142 mm

293750002

$1.25
