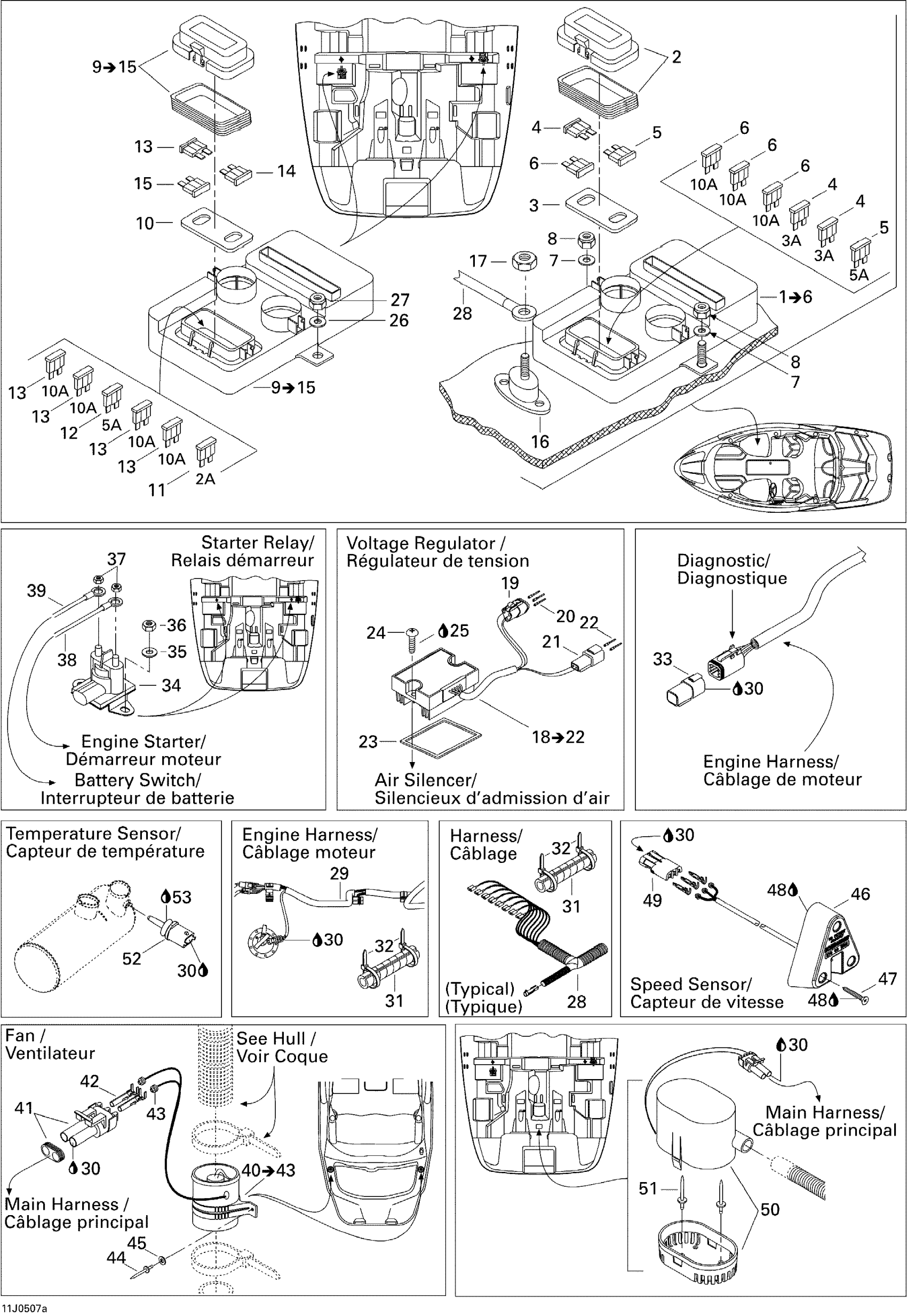

Sea-doo Speedster 200 Twin 4-TEC, 2005 10- Electrical Accessories 1 Diagram

#

Description
Price

1

TWIN ENGINE INTERFACE - Call your local BRP dealership | Includes 1 to 6, North America

204471262

Unavailable

2

FUSE COVER - Call your local BRP dealership | Includes 2 to 3, North America This part replaces 278001618.

278002102

$36.99

3

COVER BUSHING - Call your local BRP dealership | North America

278001719

Unavailable

4

FUSE, 3 AMPERES - Call your local BRP dealership | CE

278001196

Unavailable

5

Fuse, 5 Amperes | CE

278000344

$3.28

6

Fuse, 10 Amperes | North America

278001197

$2.21

7

Flat Washer M6, Stainless

234062600

$0.77

8

Hex. Elastic Stop Nut M6

232561600

$1.15

9

FUSE BLOCK - Call your local BRP dealership | Includes 17 to 24

204470770

Unavailable

10

COVER BUSHING - Call your local BRP dealership | North America

278001719

Unavailable

11

FUSE, 2 AMPERES - Call your local BRP dealership

278001442

Unavailable

12

Fuse, 5 Amperes | CE

278000344

$3.28

13

Fuse, 10 Amperes | North America

278001197

$2.21

14

Fuse, 20 Amperes

409003900

$3.28

15

Fuse, 30 Amperes

410917200

$3.28

16

Ground Post

204470715

Unavailable

17

HEX. ELASTIC NUT 3/8 - Call your local BRP dealership

204100032

Unavailable

18

REGULATOR - Call your local BRP dealership | Includes 11 to 15

278001969

$174.99

19

CONNECTOR_FEMALE 3 CAVITIES - Call your local BRP dealership

278002375

$30.99

20

Female Terminal

278000632

$2.09

21

Mâle Terminal Housing, 2 Circuits

278001674

$30.49

22

Male Terminal

515175568

$9.12

23

SEAL - Call your local BRP dealership

293250123

Unavailable

24

PHILLIPS SCREW M6 X 30 - Call your local BRP dealership

208663060

Unavailable

25

Loctite 271, 10 ml

293800005

$26.99

26

Flat Washer M6, Stainless

234062600

$0.77

27

Hex. Elastic Stop Nut M6

232561600

$1.15

28

Accessory Harness

204470903

Unavailable

29

Engine Harness | Starboard

204470811

Unavailable

30

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

31

SLIT CONDUIT, METER - Call your local BRP dealership

204550015

Unavailable

32

Tie Wrap 142 mm

293750002

$1.25

33

Diagnostic Connector

278002704

$19.49

34

Starter Relay

278003012

$42.49

35

Flat Washer M6, Stainless

234062600

$0.77

36

Hex. Elastic Stop Nut M6

232561600

$1.15

37

Hex. Elastic Stop Nut M6

232561600

$1.15

38

Red Cable

204470852

Unavailable

39

RED CABLE - Call your local BRP dealership

204470853

Unavailable

39

RED CABLE - Call your local BRP dealership | Starboard

204470838

Unavailable

40

Fan Ass'y | Includes 44 to 47

204470108

$144.99

41

Male Connector, 2 Circuits

278000220

$15.49

42

Female Terminal

278000223

$3.19

43

Wire Seal

278000218

$4.39

44

Pop Rivet 3/16"

293150008

$0.50

45

Flat Washer 5 mm, Stainless

234052600

$0.77

46

Speed Sensor

278001993

$169.99

47

PHILLIPS SCREW #10 X 7/8 - Call your local BRP dealership

211000021

Unavailable

48

Silicone Sealant 51388, 300 ml

296000309

$36.99

49

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.85

50

Bilge Pump

204471431

Unavailable

51

RIVET_POP 5/32 - Call your local BRP dealership

293150029

Unavailable

52

Temperature Sensor

278002895

$39.99

53

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99
