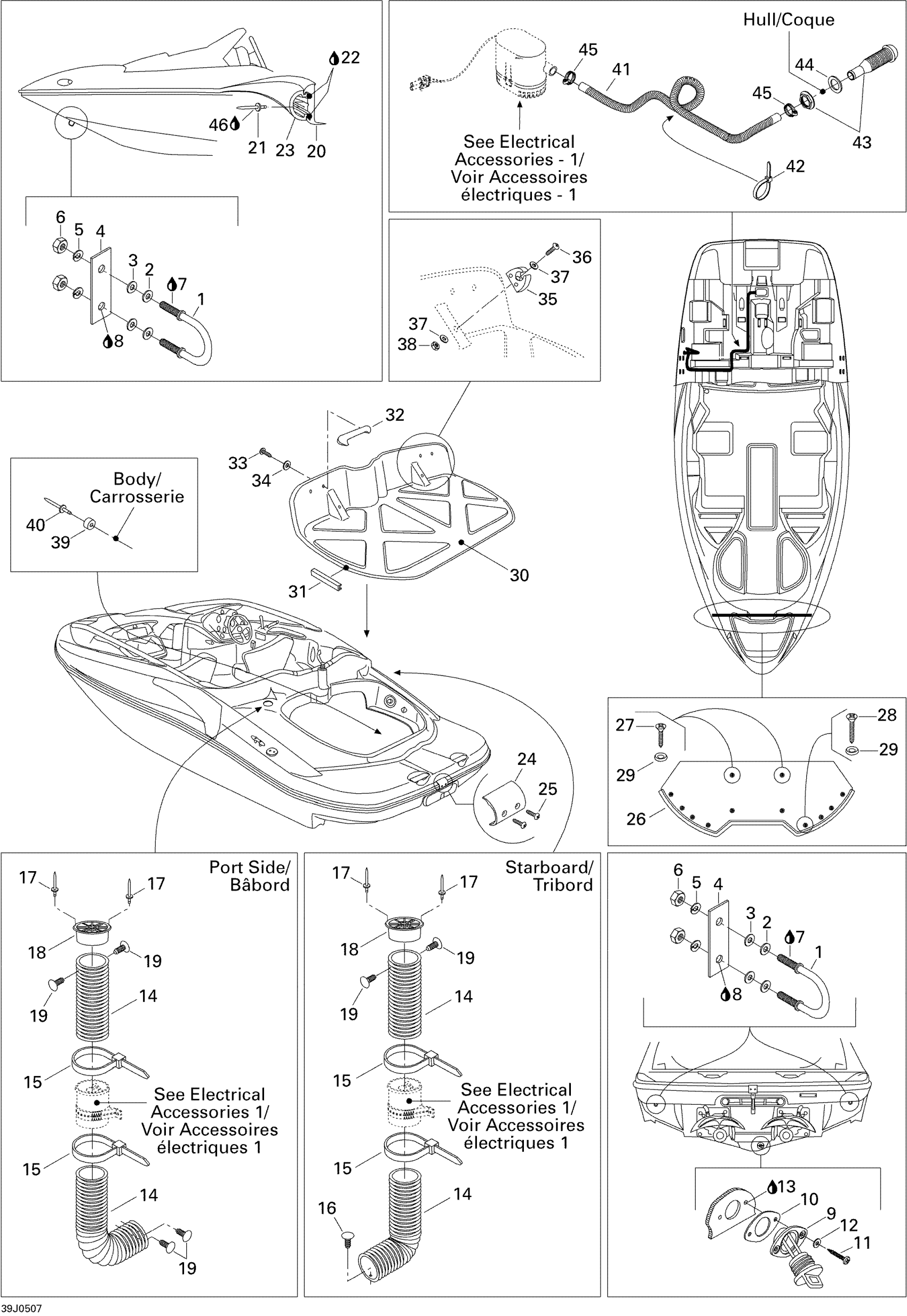

Sea-doo Speedster 200 Twin 4-TEC, 2005 09- Hull Diagram
#
1
U-CLAMP - Call your local BRP dealership
292000063
Unavailable
2
Flat Washer M8.5 x 18
293050001
$3.07
3
FLAT WASHER, PLASTIC - Call your local BRP dealership
211200029
Unavailable
4
RETAINING PLATE - Call your local BRP dealership
291000307
Unavailable
5
Lock Washer 8 mm, Stainless
234181601
$0.55
6
Hex. Nut M8
232081600
$1.47
7
Loctite 271, 10 ml
293800005
$26.99
8
Silicone Sealant 51388, 300 ml
296000309
$36.99
9
Drain Plug
292000187
$14.49
10
GASKET - Call your local BRP dealership
293250030
Unavailable
11
PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership
209642560
Unavailable
12
Flat Washer 4 mm, Stainless
234041600
$1.15
13
Silicone Sealant 51388, 300 ml
296000309
$36.99
14
Was 204050122 Vent Hose 4"
219704358
$25.99
15
Tie Wrap 368 mm
293750008
$1.04
16
Black, Dart
293730006
$0.99
17
RIVET_POP 1/8 X ,750 - Call your local BRP dealership
293150036
Unavailable
18
VENT - 4 OPEN / WHT. - Call your local BRP dealership This part replaces 204050533.
204050803
Unavailable
19
Black, Dart
293730006
$0.99
20
Bumper, Black
204050467
Unavailable
21
Pop Rivet 3/16"
293150013
$1.37
22
Silicone Sealant 51388, 300 ml
296000309
$36.99
23
Bumper Trim, Black
204050463
Unavailable
24
BUMPER COVER, BLACK - Call your local BRP dealership
204050031
Unavailable
25
Phillips Tapping Screw M4.2 X 32
209943260
$1.47
26
TRIM LOCK, METER - Call your local BRP dealership
204130079
Unavailable
27
Phillips Tapping Screw M4.2 X 32
209943260
$1.47
28
PHILLIPS TAPPING SCREW M4.8 X 51 - Call your local BRP dealership
250000087
Unavailable
29
FINITION WASHER - Call your local BRP dealership
204100057
Unavailable
30
ENGINE ACCESS COVER - Call your local BRP dealership
269700130
Unavailable
31
Seal Tray 1000Mm Long
219704368
$13.99
32
Black, Handle - Call your local BRP dealership
204050159
Unavailable
33
Hex. Flange Screw K40 X 16
241141660
$1.48
34
Flat Washer 4 mm, Stainless
234042600
$1.15
35
Pole Support
291000642
Unavailable
36
PHILLIPS SCREW M4 X 25 - Call your local BRP dealership
208642560
Unavailable
37
Flat Washer 4 mm
234040600
$0.55
38
Elastic Stop Nut M4
232541600
$1.15
39
Rubber Stopper
293830043
Unavailable
40
RIVET - Call your local BRP dealership
293150065
Unavailable
41
BILGEFLEX HOSE 3/4, BLACK, METER - Call your local BRP dealership
291001206
Unavailable
42
Tie-Rap 180 mm
414115200
$0.11
43
Fitting
293710162
$13.49
44
GASKET - Call your local BRP dealership This part replaces 293250251.
293250006
Unavailable
45
Tridon Clamp
293650016
$10.99
46
Silicone Sealant 51388, 300 ml
296000309
$36.99
