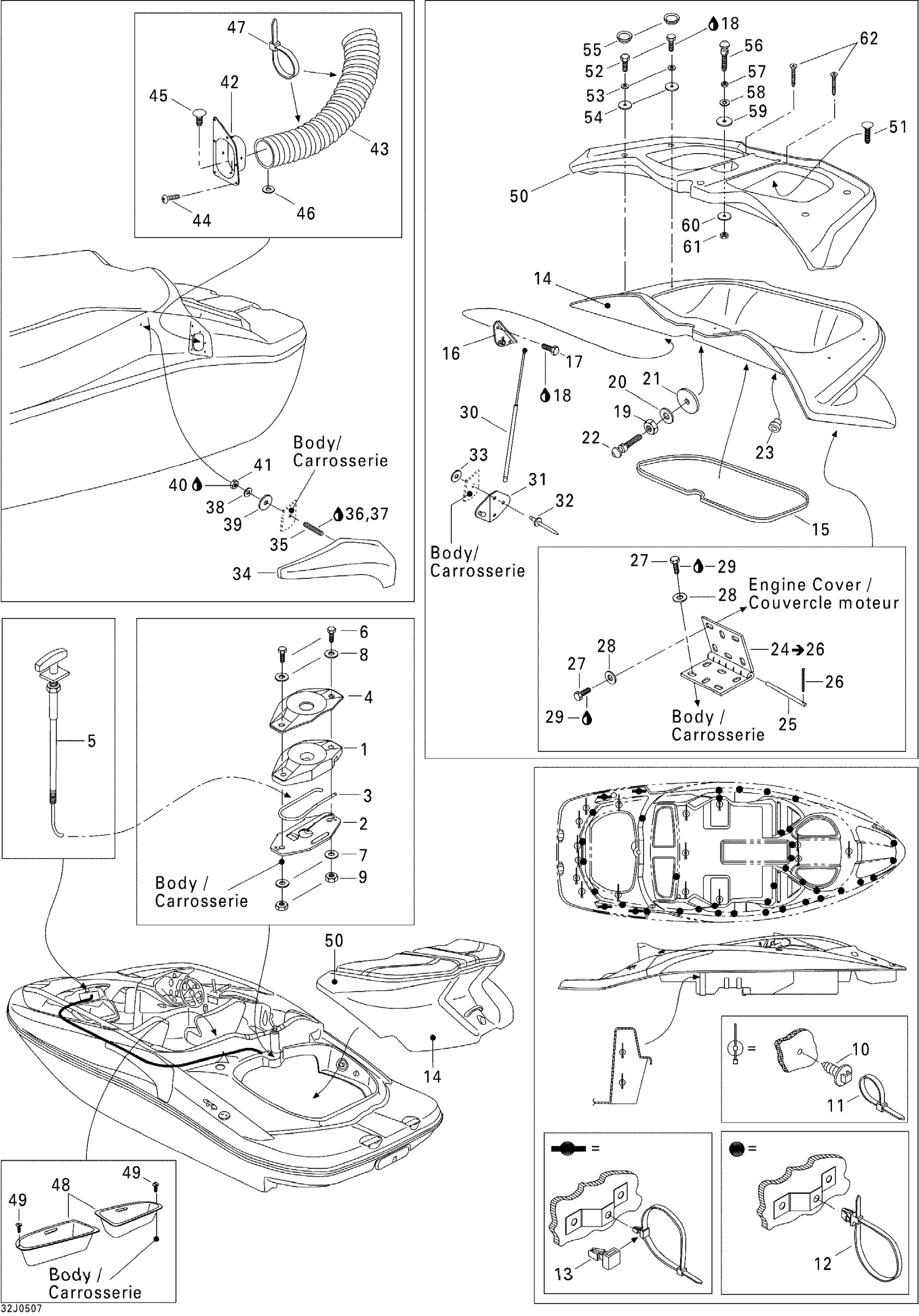

Sea-doo Speedster 200 Twin 4-TEC, 2005 09- Engine Compartment And Accessories Diagram

#

Description
Price

1

LATCH BASE - Call your local BRP dealership

204070037

Unavailable

2

LATCH COVER - Call your local BRP dealership

204070036

Unavailable

3

SPRING - Call your local BRP dealership

204070038

Unavailable

4

LATCH PROTECTOR - Call your local BRP dealership

204070952

Unavailable

5

LATCH CABLE - Call your local BRP dealership

204070049

Unavailable

6

Hex. Screw M6 X 35

207163560

$1.49

7

Flat Washer M6, Stainless

234062600

$0.77

8

Stainless Flat Washer M6

234061600

$0.33

9

Hex. Elastic Stop Nut M6

232561600

$1.15

10

Mount Dart

293730040

$1.04

11

Tie-Rap 180 mm

414115200

$0.11

12

TIE RAP WITH DART - Call your local BRP dealership

204130098

Unavailable

13

DART, BLACK - Call your local BRP dealership

204130099

Unavailable

14

Engine Cover

204072181

Unavailable

15

D-SEAL RUBBER - Call your local BRP dealership

204130083

Unavailable

16

SHOCK BRACKET - Call your local BRP dealership

204070065

Unavailable

17

Hex. Screw M4 X 16 | Europe

207141660

$1.47

18

Loctite 243, 10 ml

293800060

$21.49

19

Hex. Jam Nut M10

232100600

$2.22

20

Flat Washer 10 mm, Stainless

234002600

$2.22

21

RUBBER WASHER - Call your local BRP dealership

291000628

Unavailable

22

Latch Stud

291001420

Unavailable

23

GROMMET - Call your local BRP dealership

293720017

Unavailable

24

HINGE ASS'Y - Call your local BRP dealership | Includes 19 to 21

204070127

Unavailable

25

HINGE ROD - Call your local BRP dealership

204070204

Unavailable

26

Cotter Pin M2.5 X 12

204070205

Unavailable

27

Hex. Screw M6 X 25

207162560

$1.47

28

Stainless Flat Washer M6

234061600

$0.33

29

Loctite 243, 10 ml

293800060

$21.49

30

GAS SHOCK - Call your local BRP dealership | Port Side

204071964

Unavailable

30

GAS SHOCK - Call your local BRP dealership

204071959

Unavailable

31

SHOCK BRACKET - Call your local BRP dealership

204070065

Unavailable

32

RIVET_POP 3/16 - Call your local BRP dealership This part replaces 204130014.

293150201

Unavailable

33

Flat Washer M5, Stainless

234051600

$0.77

34

Inlet Vent Cover, Port Side | Port Side

204072184

Unavailable

34

Inlet Vent Cover, Starboard | Starboard

204072185

Unavailable

35

Set Screw 1/4-20

204100142

Unavailable

36

Was 293800041 Loctite Primer 7649

219704458

$39.99

37

Loctite 271, 10 ml

293800005

$26.99

38

Lock Washer 1/4”

211200025

$1.29

39

FLAT WASHER 9/32? - Call your local BRP dealership

204100089

Unavailable

39

WASHER-FENDER/S.S. - Call your local BRP dealership

204100139

Unavailable

40

Loctite 243, 10 ml

293800060

$21.49

41

HEX. NUT 1/4 - Call your local BRP dealership

211100026

Unavailable

42

INLET VENT, PORT SIDE - Call your local BRP dealership

204071856

Unavailable

42

INLET VENT, STARBOARD - Call your local BRP dealership

204071857

Unavailable

43

Was 204050122 Vent Hose 4"

219704358

$25.99

44

TAPPING SCREW M4.2 X 19 - Call your local BRP dealership

250000090

Unavailable

45

Black, Dart

293730006

$0.99

46

Flat Washer M6, Stainless

234062600

$0.77

47

Tie Wrap 368 mm

293750008

$1.04

48

REAR STORAGE TRAY, PORT SIDE - Call your local BRP dealership

204071858

Unavailable

48

REAR STORAGE TRAY, STARBOARD - Call your local BRP dealership

204073076

Unavailable

49

SLOTTED BOLT 1/4?-20 X 1? - Call your local BRP dealership

204100095

Unavailable

50

Spoiler

204613003

Unavailable

51

Dart

293730021

$7.79

52

Hex. Screw M6 X 25, Scotch Grip | With Catalyst

207362560

$1.47

53

Flat Washer M6, Stainless

234062600

$0.77

54

Flat Washer 10 mm, Stainless

234002600

$2.22

55

PLUG 1-1/2, BLACK - Call your local BRP dealership

204130065

Unavailable

56

LATCH STUD - Call your local BRP dealership

291000689

Unavailable

57

Hex. Jam Nut M10

232100600

$2.22

58

Flat Washer 10 mm, Stainless

234002600

$2.22

59

RUBBER WASHER - Call your local BRP dealership

291000628

Unavailable

60

Flat Washer 10 mm, Stainless

234002600

$2.22

61

HEX. ELASTIC NUT M10 - Call your local BRP dealership

232501600

Unavailable

62

PHILLIPS TAPPING SCREW #10 X 1-1/4 - Call your local BRP dealership

204100164

Unavailable
