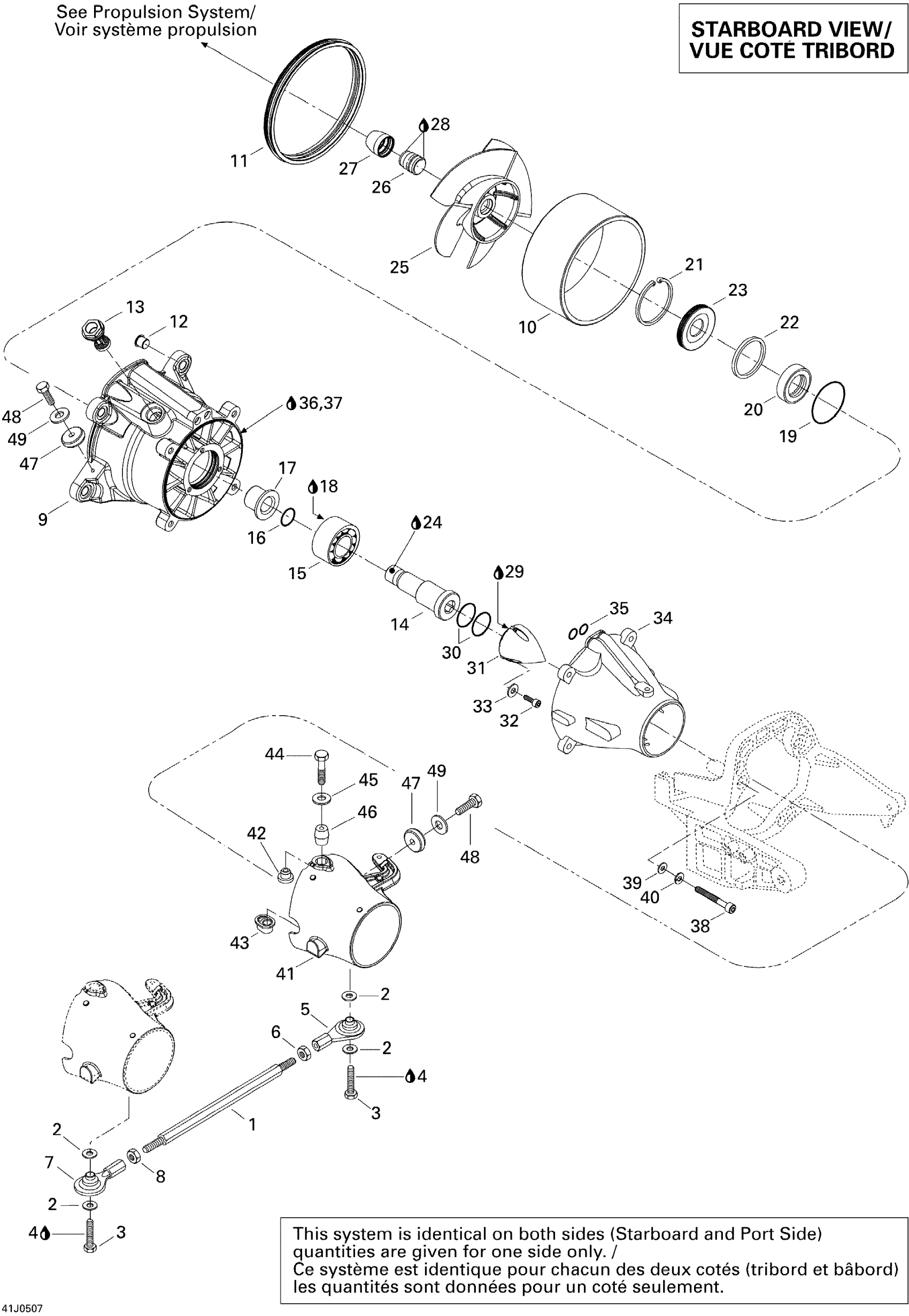

Sea-doo Speedster 200 Twin 4-TEC, 2005 05- Pump Diagram
#
1
LINK ROD - Call your local BRP dealership
204120255
Unavailable
2
Stainless Flat Washer M6
234061600
$0.33
3
Hex. Screw M6 X 25
207162560
$1.47
4
Loctite 243, 10 ml
293800060
$21.49
5
BALL JOINT - Call your local BRP dealership
204120074
Unavailable
6
HEX. NUT 5/16-24 - Call your local BRP dealership | Single HO Engine Models
277000439
Unavailable
7
BALL JOINT - Call your local BRP dealership
204120075
Unavailable
8
HEX. NUT 5/16-24 - Call your local BRP dealership
211100034
Unavailable
9
Impeller Housing
267000084
Unavailable
10
Wear Ring
267000419
$84.99
11
Neoprene Seal
293200087
$12.63
12
Bushing
267000093
$9.59
13
Plug | Includes 370z to 370z1
267000282
$19.49
14
Impeller Shaft
267000054
$116.49
15
Angled Bearing This part replaces 267000030.
267000900
$80.99
16
O-Ring
505070315
$2.85
17
Shaft Sleeve
267000318
$134.99
18
Jet Pump Bearing Grease, 110 G
293550032
Unavailable
19
O-Ring
293300090
$7.20
20
Seal
271002071
$33.99
21
Circlip
293370038
$8.79
22
Spacer
271001393
$8.59
23
Oil Seal
293200089
$19.99
24
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership
219704461
Unavailable
25
Impeller Assy This part replaces 267000115.
267000673
$391.99
26
IMPELLER BOOT - Call your local BRP dealership
271001152
Unavailable
27
IMPELLER RING - Call your local BRP dealership
271001153
Unavailable
28
Synthetic Grease, 400 G
293550010
Unavailable
29
Jet Pump Bearing Grease, 110 G
293550032
Unavailable
30
O-Ring
293300086
$3.59
31
Impeller Cover
267000262
$21.99
32
Socket Head Screw M6 X 20, Scotch Grip
205562060
$0.76
33
Stainless Flat Washer M6
234061600
$0.33
34
VENTURI, BLACK - Call your local BRP dealership
271001485
Unavailable
35
O-Ring
293300013
$8.18
36
Was 293800041 Loctite Primer 7649
219704458
$39.99
37
Était/Was 293800038 Loctite 518, 50 ml
219704456
$53.99
38
SOCKET HEAD SCREW M8 X 120, SCOTCHGRIP - Call your local BRP dealership
231182060
Unavailable
39
Flat Washer M8.5 x 18
293050001
$3.07
40
Lock Washer 8 mm, Stainless
234181601
$0.55
41
STEERING NOZZLE, BLACK - Call your local BRP dealership
271001787
Unavailable
42
Venturi Bushing
293900001
$7.62
43
Plastic Bushing
293900010
$9.59
44
SCREW-SPECIAL M8 - Call your local BRP dealership
211000047
Unavailable
45
Flat Washer M8.5 x 18
293050001
$3.07
46
Sleeve
271001816
$14.99
47
Anode Zinc
271001813
$18.99
48
Hex. Screw M6 X 20, Scotch Grip
207362060
$1.47
49
Stainless Flat Washer M6
234061600
$0.33
