Partiron

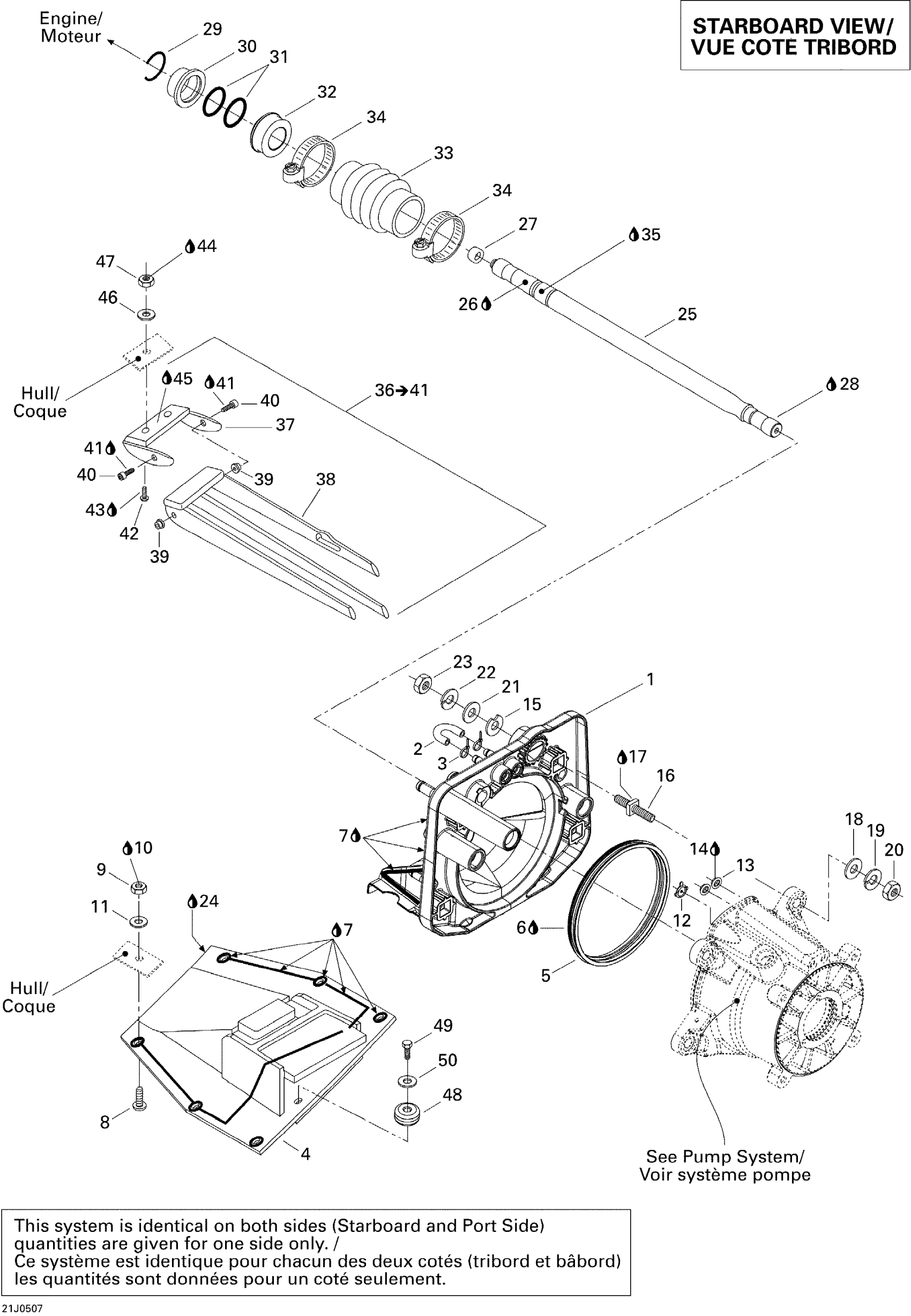

Sea-doo Speedster 200 Twin 4-TEC, 2005 Propulsion Diagram

#

Description
Price

1

PUMP SUPPORT - Call your local BRP dealership

204120252

Unavailable

2

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$31.31

3

Tie Wrap 94 mm | 4X4

293750001

$0.96

4

Ride Plate, Port Side

204120286

Unavailable

4

Ride Plate, Starboard

204120287

Unavailable

5

Neoprene Seal

293200087

$10.55

6

Glue Tube, Loctite 454, 20 G

413708300

$58.18

7

Instant Gasket

219701421

$51.99

8

PHILLIPS SCREW M6 X 40 - Call your local BRP dealership

208564060

Unavailable

9

Hex. Elastic Stop Nut M6

232561600

$1.06

10

Silicone Sealant 51388, 300 ml

296000309

$36.99

11

Flat Washer M6, Stainless

234062600

$0.73

12

Reducer This part replaces 291001887.

291004649

$14.43

13

Watertight Seal

293250084

$6.67

14

Était/Was 293800038 Loctite 518, 50 ml

219704456

$48.48

15

Shim 0.3 mm

272000053

$9.21

15

NEEDS DESCRIPTION This part replaces 204120067.

0460011

Unavailable

16

Square Stud

250300022

$17.88

17

Était/Was 293800038 Loctite 518, 50 ml

219704456

$48.48

18

Flat Washer

211200051

$1.54

19

Helicoidal Lock Washer M10 | XT Models

234101601

$1.06

20

HEX. NUT M10 - Call your local BRP dealership

232001600

Unavailable

21

Flat Washer 10 mm, Stainless

234002600

$2.12

22

Helicoidal Lock Washer M10 | XT Models

234101601

$1.06

23

HEX. NUT M10 - Call your local BRP dealership

232001600

Unavailable

24

Instant Gasket

219701421

$51.99

25

Drive Shaft

271001449

$276.09

26

Not Available As Spare Part - Friction Washer

Unavailable

27

Drive Shaft Plug

272000173

$8.06

28

Synthetic Grease, 400 G

293550010

Unavailable

29

C-Clip

271001575

$5.21

30

Carbon Ring Kit This part replaces 272000177.

295501200

$77.58

31

O-Ring

293300044

$0.99

32

Carbon Ring Kit This part replaces 272000177.

295501200

$77.58

33

Bellows

272000183

$26.09

34

Norma Clamp

293650077

$7.01

35

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

36

Weedless Grate Ass’y, Starboard | Includes 29 to 34

204120258

Unavailable

36

Weedless Grate Ass’y, Port Side | Includes 29 to 34

204120259

Unavailable

37

Grate Support, Starboard

204120083

Unavailable

37

GRATE SUPPORT, PORT SIDE - Call your local BRP dealership

204120086

Unavailable

38

MOBILE GRATE, STARBOARD - Call your local BRP dealership

204120256

Unavailable

38

Mobile Grate, Port Side

204120257

Unavailable

39

PLASTIC BUSHING - Call your local BRP dealership

204390001

Unavailable

40

SOCKET SCREW M6 X 8 - Call your local BRP dealership

211000099

Unavailable

41

Loctite 243, 10 ml

293800060

$21.49

42

Phillips Screw M6 X 35 | W/O Weedless System

208563560

$1.88

43

Loctite 243, 10 ml

293800060

$21.49

44

Silicone Sealant 51388, 300 ml

296000309

$36.99

45

Instant Gasket

219701421

$51.99

46

Flat Washer M6, Stainless

234062600

$0.73

47

Hex. Elastic Stop Nut M6

232561600

$1.06

48

Anode Zinc

271001813

$15.64

49

Hex. Screw M6 X 20, Scotch Grip

207362060

$1.40

50

Stainless Flat Washer M6

234061600

$0.28
