1983 Kawasaki Spectre Handlebar Diagram

← All diagrams

Find the part on the Handlebar diagram for your 1983 Kawasaki Spectre, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

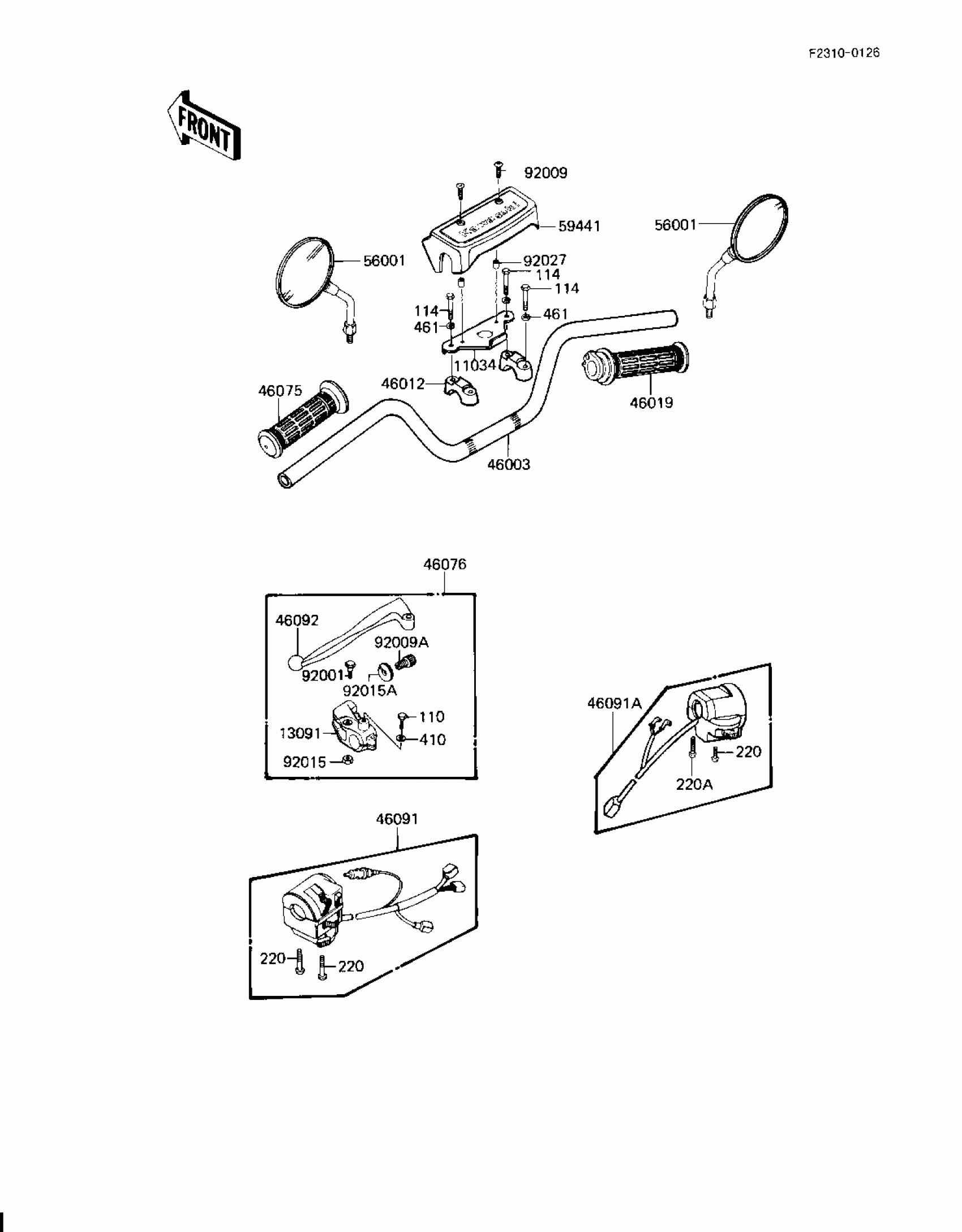

1983 Kawasaki Spectre Handlebar Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11034

BRACKET,HANDLE COVER

11034-1899

1
Out of stock

13091

HOLDER,CLUTCH LEVER,F.BLACK

13091-1046

1
Out of stock

46003

HANDLEBAR

46003-1096

1
Out of stock

46012

HOLDER-HANDLE

46012-1011

1

$40.03

In stock

46019

GRIP-ASSY,THROTTLE

46019-1015

1

$46.19

In stock

46075

GRIP,LH

46075-1022

1

$13.34

In stock

46076

LEVER-ASSY-GRIP,CLUTC

46076-1026

1
Out of stock

46091

HOUSING-ASSY-CNTRL,LH

46091-1183

1
Out of stock

46091A

HOUSING-ASSY-CNTRL,RH

46091-1201

1
Out of stock

46092

LEVER-GRIP,CLUTCH

46092-1024

1
Out of stock

56001

MIRROR-ASSY

56001-1340

1
Out of stock

59441

COVER-HANDLE

59441-1003

1
Out of stock

92001

BOLT,CLUTCH LEVER,BLACK

92001-1548

1
Out of stock

92009

SCREW,4X16

92009-1108

1
Out of stock

92009A

SCREW,CABLE ADJUST,8MM,BLACK

92009-1134

1
Out of stock

92015

NUT,LOCK,6MM,BLACK

92015-1191

1
Out of stock

92015A

NUT,CABLE ADJUST LOCK,8MM,BLK

92015-1197

1
Out of stock

92027

COLLAR,4.5X6.5X9.3

92027-1313

1
Out of stock

110

BOLT,6X22,BLACK

110C0622

1
Out of stock

114

BOLT-SMALL-UPSET

115G0835

1
Out of stock

220

SCREW-PAN-CROS

220B0535

1
Out of stock

220A

SCREW-PAN-CROS

220B0540

1
Out of stock

410

WASHER-PLAIN-SMALL,6MM,BLACK

410F0600

1
Out of stock

461

WASHER SPRING 8MM

461F0800

1
Out of stock
