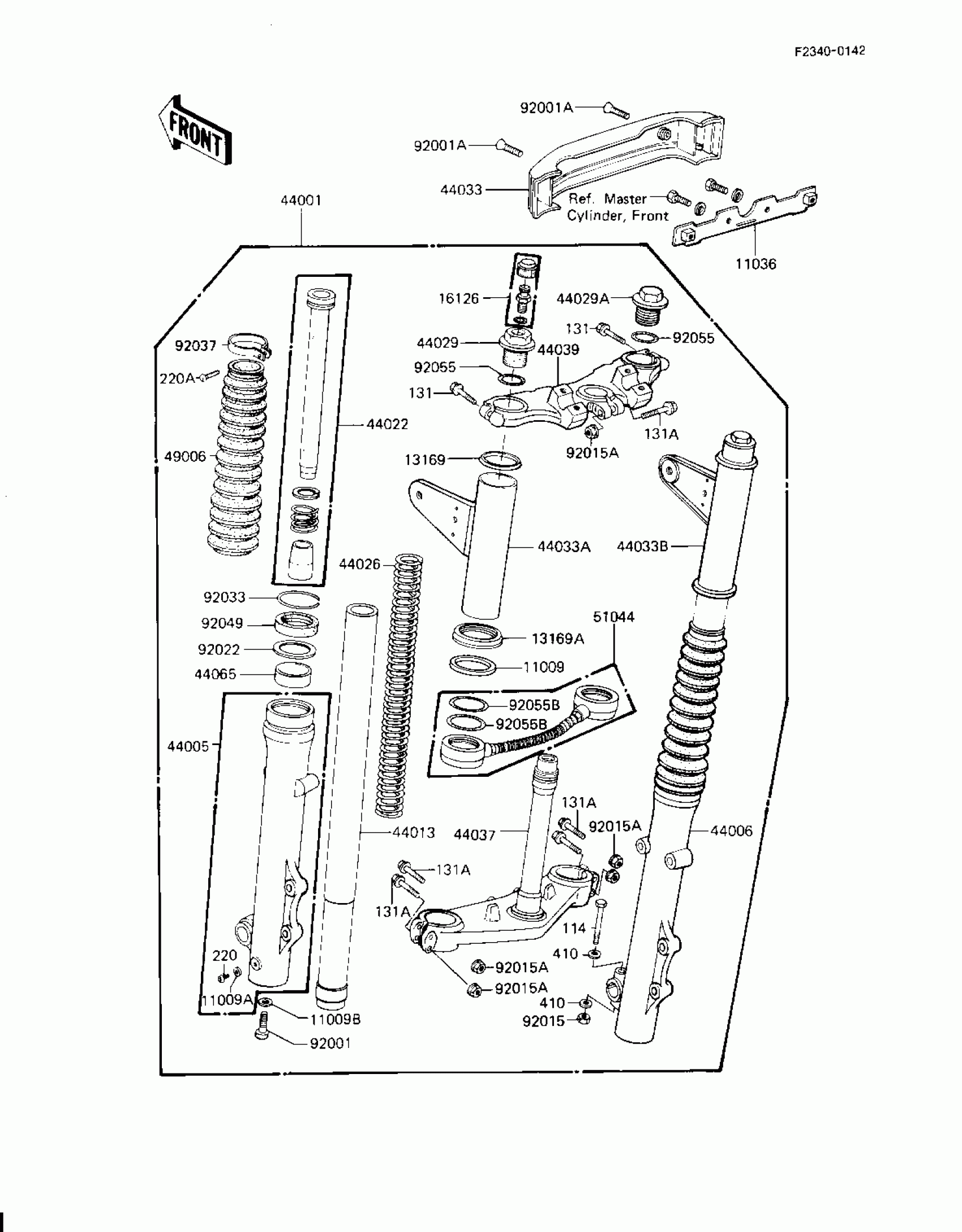

Kawasaki Spectre FRONT FORK (KZ1100-D2) Diagram

#

Description
Price

11009

GASKET,FORK COVER

11009-1015

Unavailable

11009A

GASKET,FORK DRAIN PLUG

44045-002

$3.95

11009B

GASKET

44045-057

$3.71

11036

BRACKET-A,FORK COVER

11036-1320

Unavailable

13169

PLATE,FORK COVER,UPP

13169-1498

Unavailable

13169A

PLATE,FORK COVER,LWR

13169-1499

Unavailable

16126

VALVE,AIR

16126-1052

$31.36

44001

FORK-FRONT

44001-1406

$1,269.04

44005

TUBE,LH,FORK OUTER

44005-1089

$272.25

44006

TUBE,RH,FORK OUTER

44006-1089

$272.73

44013

PIPE-FORK INNER

44013-1106

$265.34

44022

CYLINDER-FORK

44022-1045

$100.46

44026

SPRING-FRONT FORK

44026-1180

$53.24

44029

SEAT-FORK SPRING,LH

44029-1044

Unavailable

44029A

SEAT-FORK SPRING,RH

44029-1045

Unavailable

44033

COVER-FORK

44033-1084

$51.90

44033A

COVER-FORK,LH

44033-1113

$77.86

44033B

COVER-FORK,RH

44033-1114

$77.86

44037

HOLDER-FORK UNDER

44037-1081

$442.25

44039

HOLDER-FORK UPPER

44039-1069

$207.47

44065

BUSHING-FRONT FORK,OUTER TUBE

44065-1091

$21.02

49006

BOOT,FORK,BLACK

49006-1079

$86.19

51044

TUBE-ASSY,AIR,FORK

51044-1024

$108.10

92001

BOLT,SOCKET,FORK CYLINDER

44041-040

$4.93

92001A

SCREW-CSK-RD-CROS

222C0518

$4.15

92015

NUT,LOCK,8MM

92015-1124

$4.10

92015A

NUT,FLANGED,8MM

92015-1408

$4.07

92022

WASHER,FORK OUTER PIPE

92022-1262

$8.39

92033

RING-SNAP,FORK

92033-1047

$4.84

92037

CLAMP,BOOT,BLACK

92037-1321

Unavailable

92049

SEAL-OIL,FORK OUTER TUBE

92049-1295

$17.88

92055

RING-O,FORK TOP CAP

92055-1051

$4.85

92055A

RING-O,ROD

92055-1369

$7.71

114

BOLT,HEX HEAD,8X55

114G0855

Unavailable

131

BOLT-FLANGED,8X45,BLA

131J0845

Unavailable

131A

BOLT-FLANGED,8X55,BLA

131J0855

Unavailable

220

SCREW PAN HEAD 4X8

220B0408

Unavailable

220A

SCREW-PAN-CROS,4X20

220C0420

Unavailable

410

WASHER PLAIN 8MM

410B0800

Unavailable
