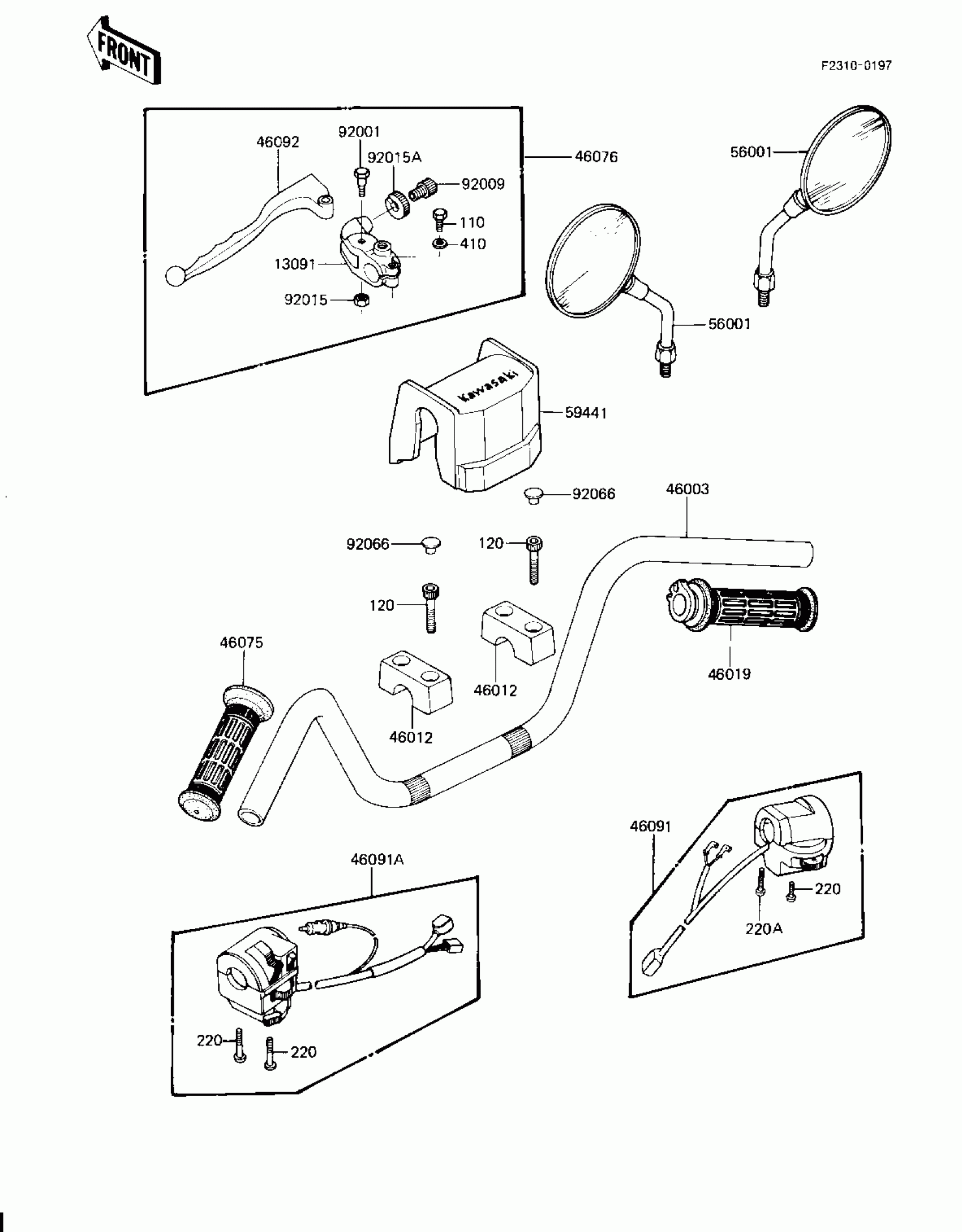

Kawasaki Spectre HANDLEBAR (KZ1100-D2) Diagram

#

Description
Price

13091

HOLDER,CLUTCH LEVER,F.BLACK

13091-1046

$51.67

46003

HANDLEBAR

46003-1096

Unavailable

46012

HOLDER-HANDLE

46012-1027

Unavailable

46019

GRIP-ASSY,THROTTLE

46019-1015

$45.12

46075

GRIP,LH

46075-1022

$12.80

46076

LEVER-ASSY-GRIP,CLUTC

46076-1026

Unavailable

46091

HOUSING-ASSY-CNTRL,RH

46091-1214

Unavailable

46091A

HOUSING-ASSY-CONTROL,

46091-1248

Unavailable

46092

LEVER-GRIP,CLUTCH

46092-1024

Unavailable

56001

MIRROR-ASSY

56001-1340

Unavailable

59441

COVER-HANDLE

59441-1010

Unavailable

92001

BOLT,CLUTCH LEVER,BLACK

92001-1548

$6.46

92009

SCREW,CABLE ADJUST,8MM,BLACK

92009-1134

$12.39

92015

NUT,LOCK,6MM,BLACK

92015-1191

Unavailable

92015A

NUT,CABLE ADJUST LOCK,8MM,BLK

92015-1197

$7.54

92066

PLUG

92066-1216

$3.54

110

BOLT,6X22,BLACK

110C0622

Unavailable

120

BOLT-SOCKET,8X30

120S0830

Unavailable

220

SCREW-PAN-CROS

220B0535

$2.80

220A

SCREW-PAN-CROS

220B0540

Unavailable

410

WASHER-PLAIN-SMALL,6MM,BLACK

410F0600

Unavailable
