1977 Kawasaki Special Taillight Diagram

← All diagrams

Find the part on the Taillight diagram for your 1977 Kawasaki Special, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

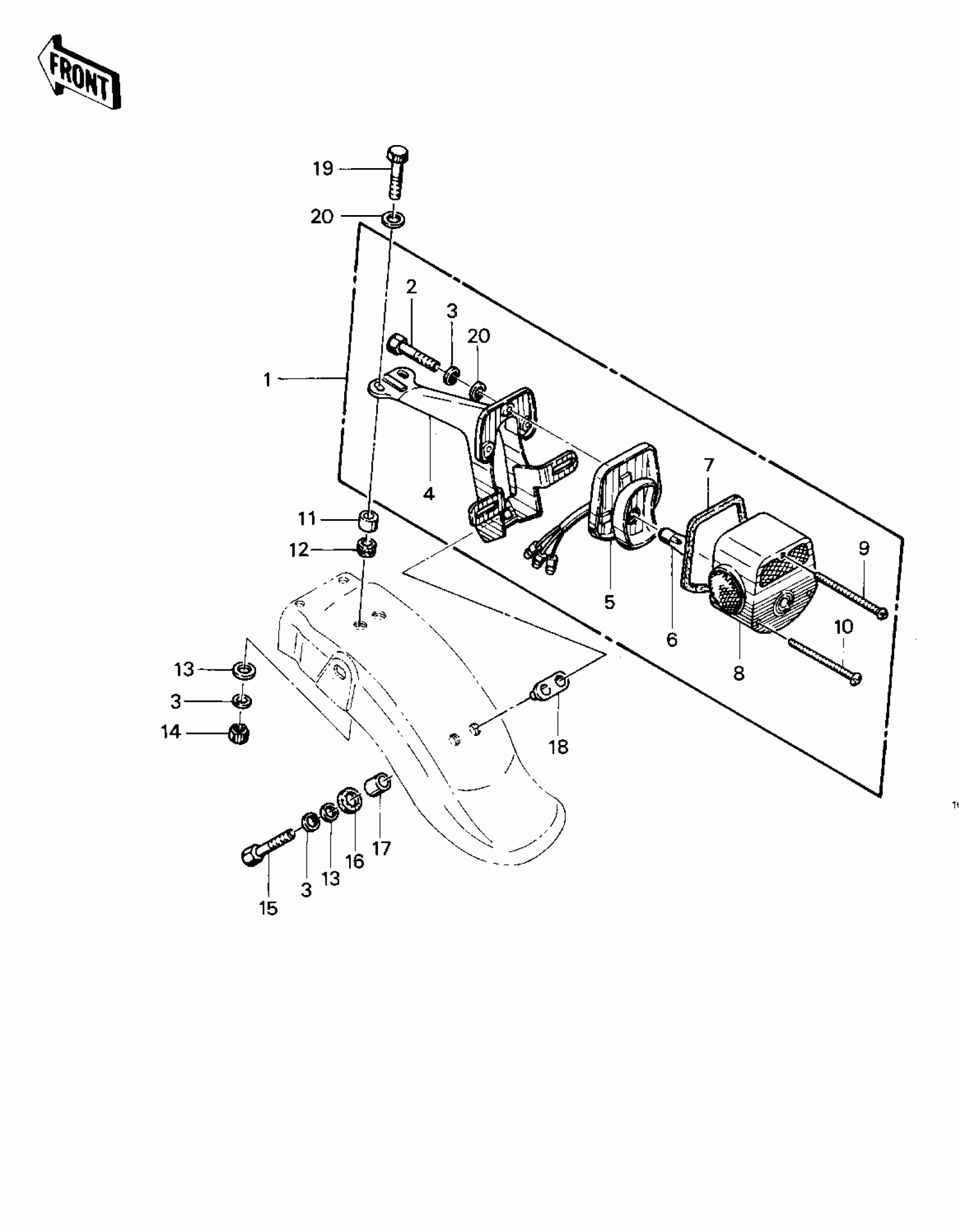

1977 Kawasaki Special Taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LIGHT ASSY TAIL BLACK

23024-059-10

1
Out of stock

2

BOLT-UPSET 6X14

112B0614

1
Out of stock

3

WASHER SPRING 6MM

461F0600

1
Out of stock

4

BKT LICENSE PLT BLACK

23036-041-10

1
Out of stock

5

BODY-COMP-TAIL LAMP

23027-1019

1
Out of stock

5

BODY-COMP-TAIL LAMP

23027-1019

—
Out of stock

6

BULB,12V 27/8W

92069-059

1
Out of stock

7

GASKET,TAIL LAMP LENS

23028-019

1
Out of stock

8

LENS,TAIL LAMP

23026-028

1
Out of stock

9

SCREW

220R0455

1
Out of stock

9

SCREW

220R0455

—
Out of stock

10

SCREW PAN HEAD 4X50

220E0450

1
Out of stock

11

COLLAR,6.8X10X8.5

92027-129

1
Out of stock

12

DAMPER RUBBER

92075-076

1
Out of stock

13

WASHER,6.5X20X1.6

92022-125

1
Out of stock

14

NUT 6MM

311B0600

1
Out of stock

15

BOLT-UPSET

112G0625

1
Out of stock

16

DAMPER,FENDER

92075-121

1
Out of stock

17

COLLAR,6.8X10X12

92027-162

1
Out of stock

18

DAMPER RUBBER,FENDER

92075-273

1
Out of stock

19

BOLT 6X22

112B0622

1
Out of stock

20

WASHER PLAIN 6MM

411B0600

1
Out of stock
