1977 Kawasaki Special Meter/ignition Switch Diagram

← All diagrams

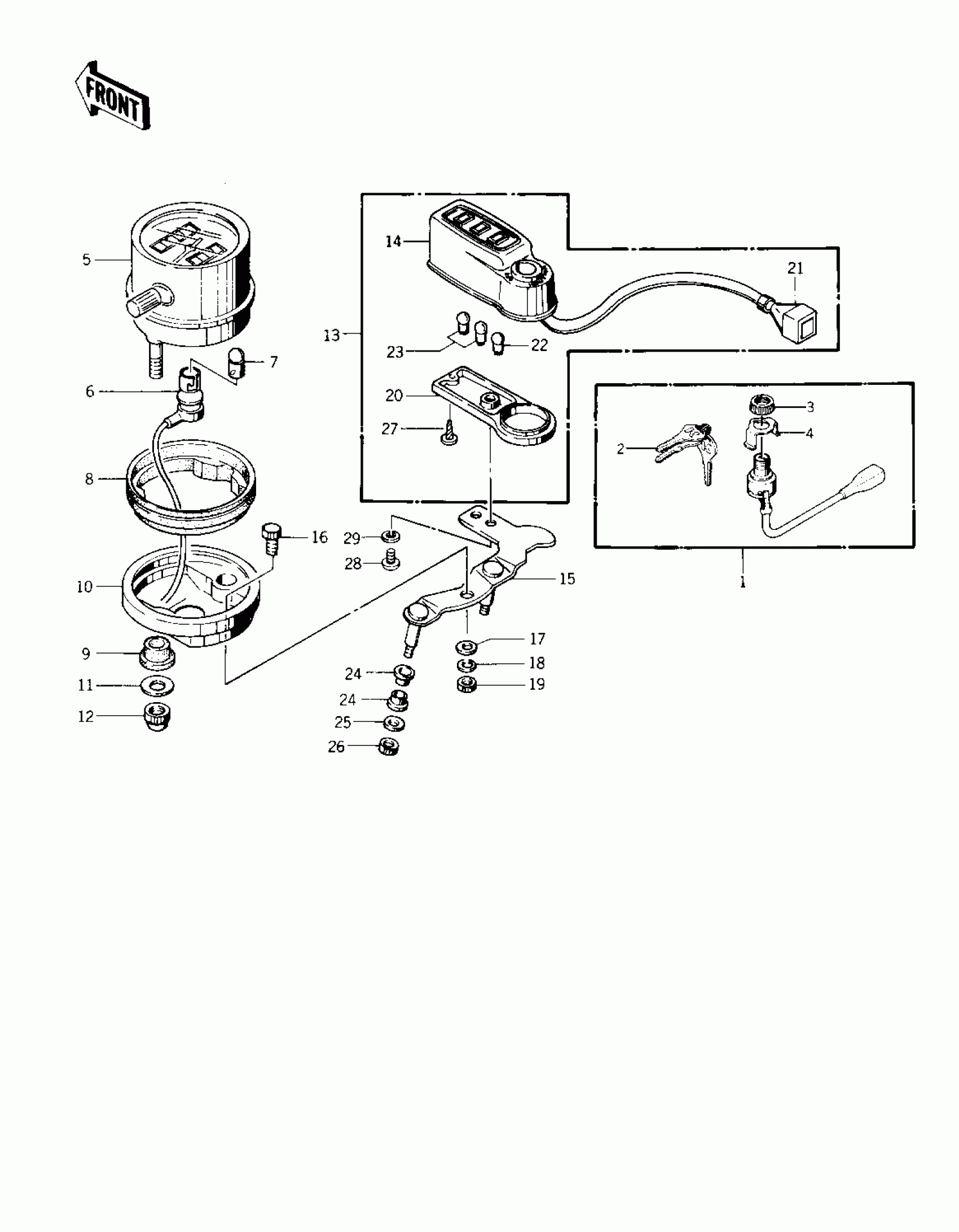

Find the part on the Meter/ignition Switch diagram for your 1977 Kawasaki Special, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1977 Kawasaki Special Meter/ignition Switch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SWITCH ASSY,IGNITION

27005-089

1
Out of stock

2

KEY SET,#751

27008-064-51

1
Out of stock

2

KEY SET, #752

27008-064-52

1
Out of stock

2

KEY SET, #753

27008-064-53

1
Out of stock

2

KEY SET, #754

27008-064-54

1
Out of stock

2

KEY SET,#755

27008-064-55

1
Out of stock

2

KEY SET, #756

27008-064-56

1
Out of stock

2

KEY SET, #757

27008-064-57

1
Out of stock

2

KEY SET,#758

27008-064-58

1
Out of stock

2

KEY SET, #759

27008-064-59

1
Out of stock

2

KEY SET, #760

27008-064-60

1
Out of stock

2

KEY SET,#761

27008-064-61

1
Out of stock

2

KEY SET,#762

27008-064-62

1
Out of stock

2

KEY SET,#763

27008-064-63

1
Out of stock

2

KEY SET,#764

27008-064-64

1
Out of stock

2

KEY SET,#765

27008-064-65

1
Out of stock

2

KEY SET,#766

27008-064-66

1
Out of stock

2

KEY SET,#767

27008-064-67

1
Out of stock

2

KEY SET,#768

27008-064-68

1
Out of stock

2

KEY SET,#769

27008-064-69

1
Out of stock

2

KEY SET,#770

27008-064-70

1
Out of stock

2

KEY SET, #771

27008-064-71

1
Out of stock

2

KEY SET, #772

27008-064-72

1
Out of stock

2

KEY SET,#773

27008-064-73

1
Out of stock

2

KEY SET,#774

27008-064-74

1
Out of stock

2

KEY SET, #775

27008-064-75

1
Out of stock

2

KEY SET, #776

27008-064-76

1
Out of stock

2

KEY SET, #777

27008-064-77

1
Out of stock

2

KEY SET, #778

27008-064-78

1
Out of stock

2

KEY SET, #779

27008-064-79

1
Out of stock

2

KEY SET, #780

27008-064-80

1
Out of stock

2

KEY SET, #781

27008-064-81

1
Out of stock

2

KEY SET, #782

27008-064-82

1
Out of stock

2

KEY SET, #783

27008-064-83

1
Out of stock

2

KEY SET,#784

27008-064-84

1
Out of stock

2

KEY SET, #785

27008-064-85

1
Out of stock

2

KEY SET, #786

27008-064-86

1
Out of stock

2

KEY SET, #787

27008-064-87

1
Out of stock

2

KEY SET, #788

27008-064-88

1
Out of stock

2

KEY SET, #789

27008-064-89

1
Out of stock

2

KEY SET, #790

27008-064-90

1
Out of stock

2

KEY SET, #791

27008-064-91

1
Out of stock

2

KEY SET, #792

27008-064-92

1
Out of stock

2

KEY SET, #793

27008-064-93

1
Out of stock

2

KEY SET, #794

27008-064-94

1
Out of stock

2-1

KEY,BLANK

27008-1013

—
Out of stock

3

NUT,IGNITION SW LOCK

27007-004

1
Out of stock

4

HOLDER,IGNITION SW

27019-004

1
Out of stock

5

SPEEDOMETER ASSY,MPH

25006-061

1
Out of stock

5

SPEEDOMETER ASSY,KP H (Canada)

25006-074

1
Out of stock

6

SOCKET,SPEEDOMETER

25010-020

1
Out of stock

7

BULB 12V 3W

92069-018

1
Out of stock

8

SHOCK DAMPER,SPEEDMET

25019-031

1
Out of stock

9

DAMPER,METER

25019-013

1
Out of stock

10

COVER,SPEEDOMETER

25012-022

1
Out of stock

11

WASHER-PLAIN,5MM

411B0500

1
Out of stock

12

NUT-CAP

322C0500

1
Out of stock

13

LIGHT ASSY,PILOT

23016-021

1
Out of stock

14

COVER,INDICATOR,UPPER

25023-016

1
Out of stock

15

BRACKET,SPEEDOMETER

25008-048

1
Out of stock

16

BOLT,HEX HEAD,8X16

92003-212

1
Out of stock

17

WASHER PLAIN 8MM

411B0800

1
Out of stock

18

WASHER SPRING 8MM

461F0800

1
Out of stock

19

NUT,8MM

311B0800

1
Out of stock

20

COVER,INDICATOR,LOWER

25024-017

1
Out of stock

21

SOCKET,INDICATOR

25011-052

1
Out of stock

22

BULB 12V 1.5W

92069-017

1
Out of stock

22

BULB 12V 3W

92069-018

1
Out of stock

23

BULB 12V 3W

92069-018

1
Out of stock

24

DAMPER RUBBER

92075-257

1
Out of stock

25

WASHER,PLAIN,6MM

92022-284

1
Out of stock

26

NUT 6MM

311B0600

1
Out of stock

27

SCREW,TAPPING,3.5X12

92008-012

1
Out of stock

28

SCREW PAN HEAD 5X10

220B0510

1
Out of stock

29

WASHER SPRING 6MM

461F0600

1
Out of stock
