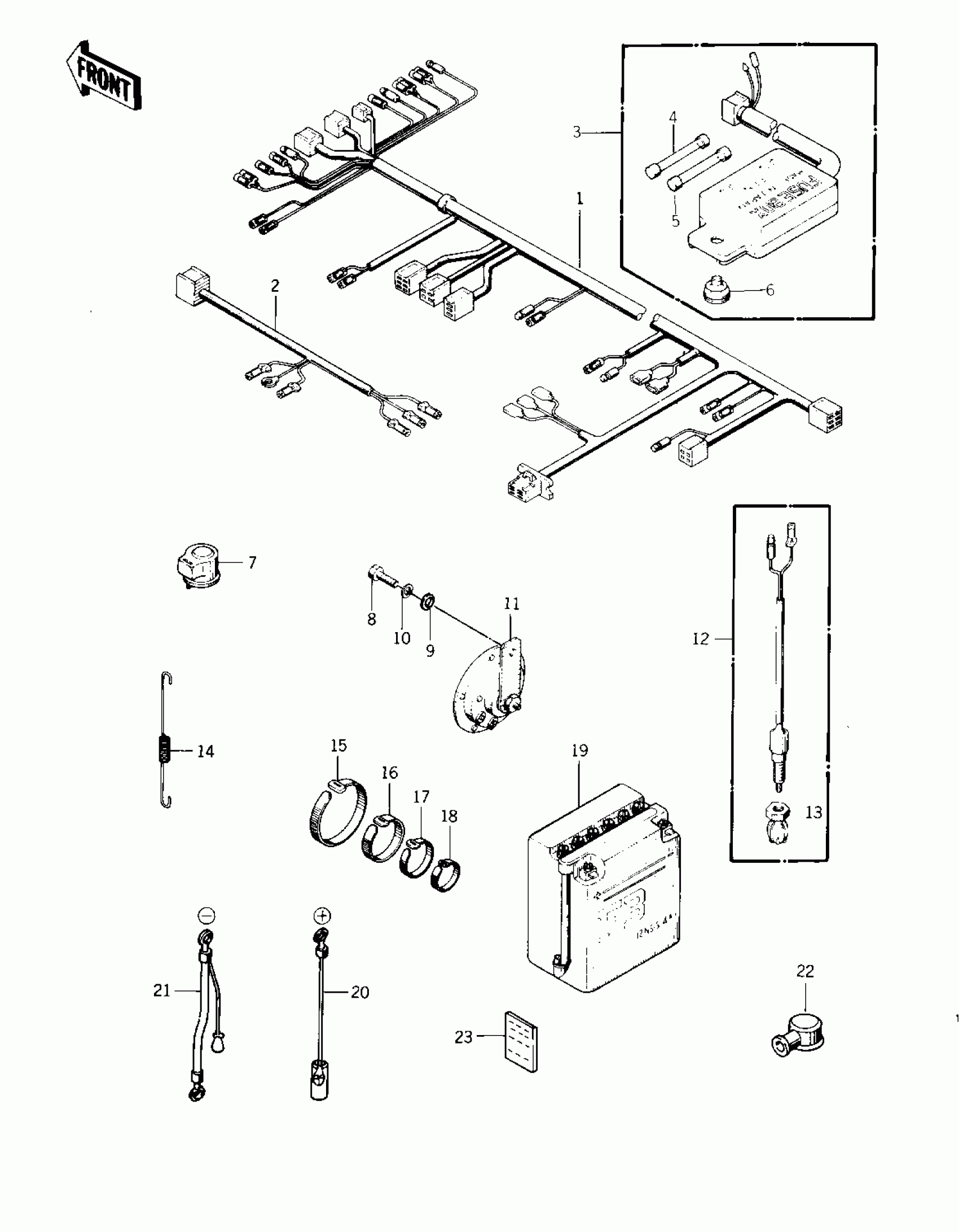

Find the part on the Chassis Electrical Equipment ('76-'77 S2 diagram for your 1977 Kawasaki Special, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1977 Kawasaki Special Chassis Electrical Equipment ('76-'77 S2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

WIRING HARNESS,MAIN

26001-136

1
Out of stock

2

WIRING HARNESS REAR

26002-049

1
Out of stock

3

FUSE-ASSY

26004-035

1
Out of stock

4

FUSE,20A,L=25

26006-005

1

$4.02

In stock

5

FUSE,10A,L=25

26006-003

1

$3.74

In stock

6

DAMPER,FUSE

92075-279

1
Out of stock

7

RELAY-ASSY,TURN SIGNAL

27002-011

1
Out of stock

8

BOLT,8X20

115G0820

1
Out of stock

9

WASHER PLAIN 8MM

410B0800

1
Out of stock

10

WASHER SPRING 8MM

461F0800

1
Out of stock

11

HORN

27003-1006

1
Out of stock

12

SWITCH,BRAKE LAMP

27010-025

1

$27.60

In stock

13

1

$27.60

In stock

14

1

$9.93

In stock

15

BAND,L=218

92072-032

1

$3.97

In stock

16

BAND,L=149

92072-031

1

$3.97

In stock

17

BAND,L=123

92072-030

1

$3.97

In stock

18

BAND,L=95

92072-067

1
Out of stock

19

FB BAT 12N5.5-4A

26012-022

1

$56.86

In stock

19

YUA BAT 12N5.5-4A

K26012-022

1

$56.86

In stock

20

WIRE,BATTERY LEAD

26010-046

1

$11.90

In stock

21

1

$11.90

In stock

22

CAP BAT TERMINAL RUBB

92073-001

1
Out of stock

23

LABEL-WARNING,BATTERY

56040-1036

1
Out of stock
