1985 Suzuki SP600 Front Brake Hose Diagram

← All diagrams

Find the part on the Front Brake Hose diagram for your 1985 Suzuki SP600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

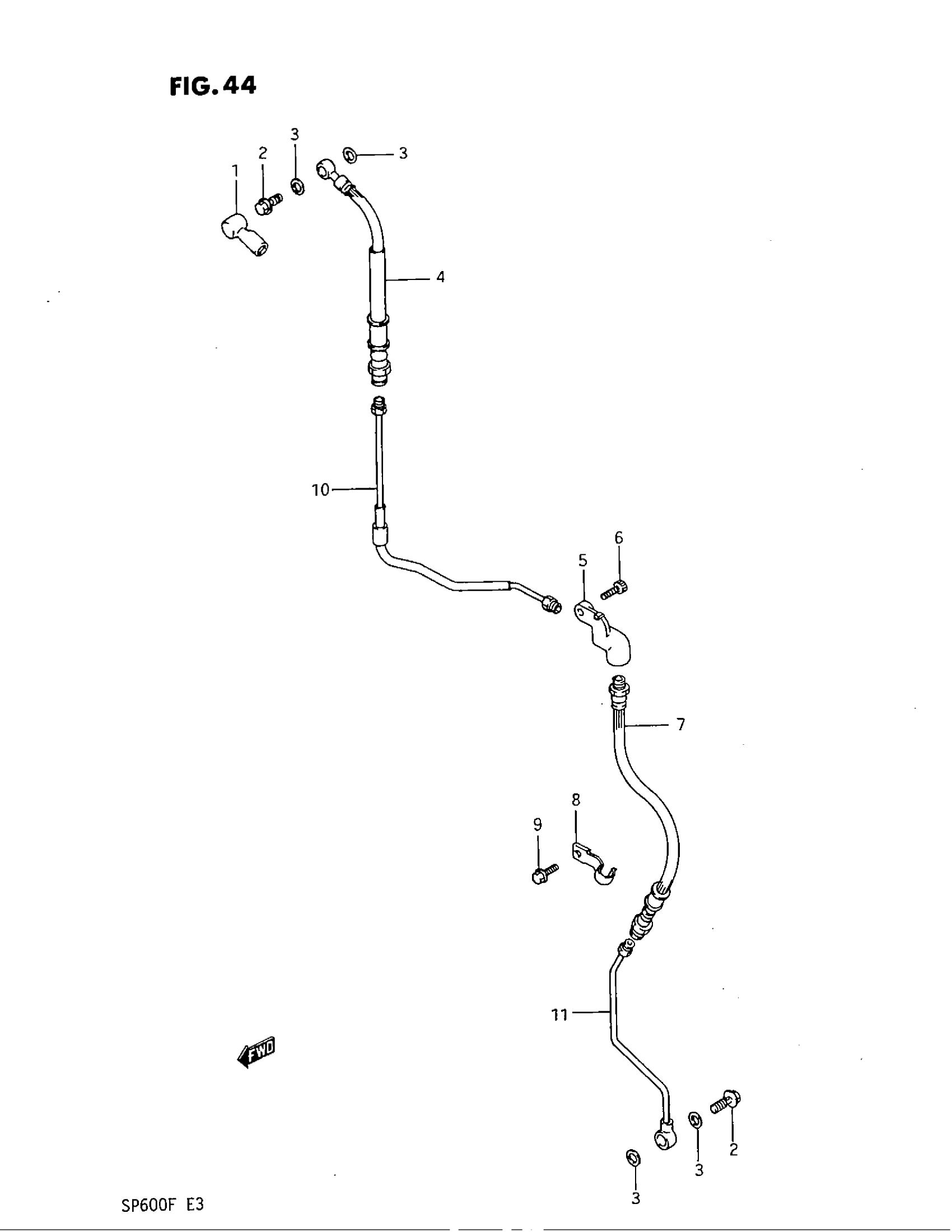

1985 Suzuki SP600 Front Brake Hose Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BOOT,MASTER CYL This part replaces 59711-04700.

59711-04701

1
Out of stock

2

2

$6.33

In stock

3

WASHER (10X15X1.5)

09161-10009

4
Out of stock

4

HOSE, FRONT BRAKE, NO.1

59480-14A01

1
Out of stock

5

JOINT

59490-14A00

1
Out of stock

6

BOLT

07110-06125

—
Out of stock

7

HOSE, FRONT BRAKE, NO.2

59240-14A00

1
Out of stock

8

NO DESCRIPTION AVAILABLE This part replaces 59268-14A00.

59268-14A10

1
Out of stock

9

BOLT This part replaces 01517-06128.

01550-06127

1
Out of stock

10

PIPE, FRONT BRAKE, NO.1

59250-14A01

1
Out of stock

11

PIPE, FRONT BRAKE, NO.2

59250-14A11

1
Out of stock
