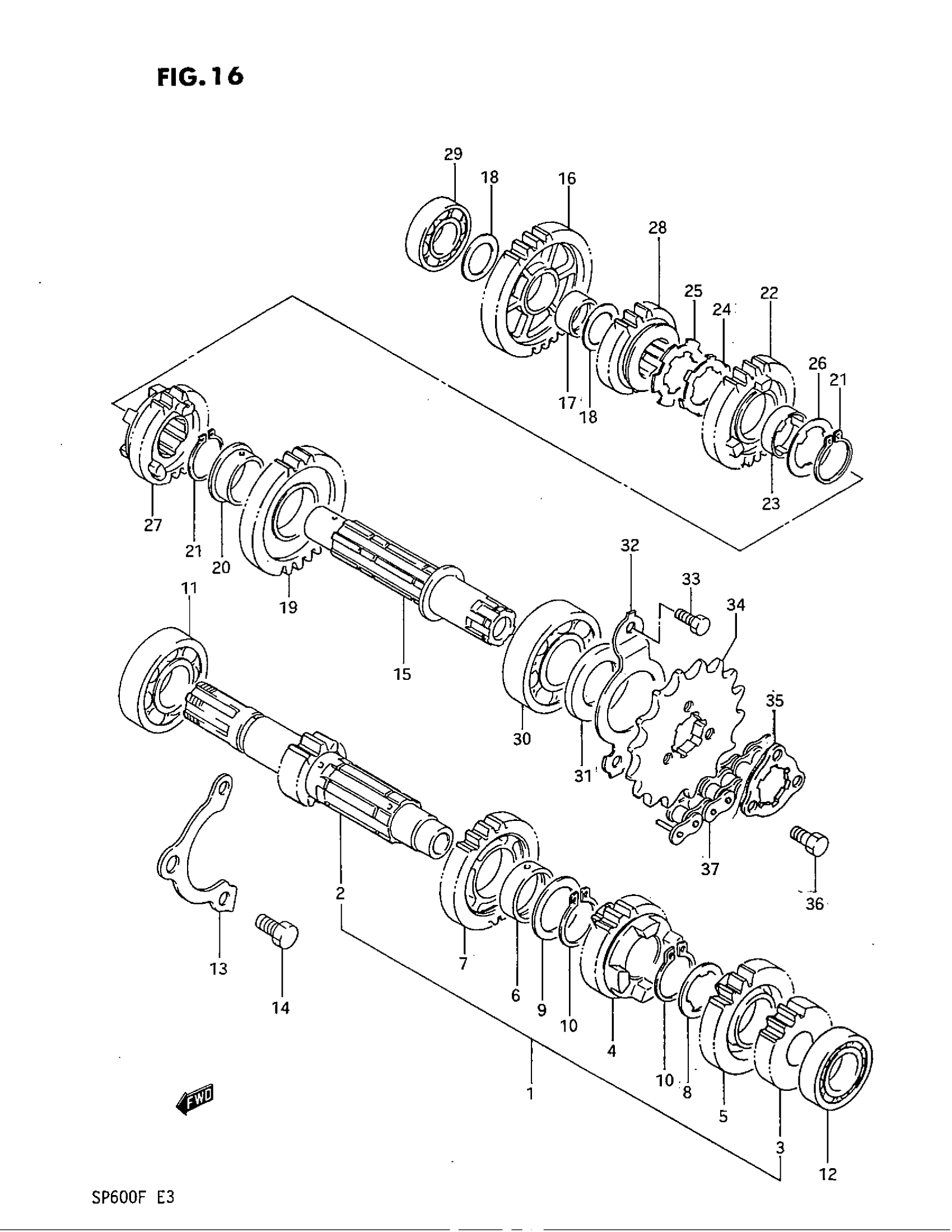

Suzuki SP600 (1985) TRANSMISSION Diagram

#

Description
Price

1

COUNTERSHAFT | Includes Item(s) 2 - 10

24120-14A00

Unavailable

2

COUNTERSHAFT (NT:12)

24121-14A00

Unavailable

3

GEAR, 2ND DRIVE This part replaces 24221-14A00.

24221-14A10

$130.03

4

GEAR, 3RD DRIVE (NT:19) This part replaces 24231-14A00.

24231-12D02

Unavailable

5

GEAR, 4TH DRIVE This part replaces 24241-14A00.

24241-14A10

$130.03

6

BUSH, 4TH DRIVE GEAR This part replaces 09300-25023.

24252-19F00

$19.32

7

GEAR, 5TH DRIVE (NT:23)

24251-14A00

Unavailable

8

WASHER LOCK (25.1X31X1.0)

09167-25012

$4.02

9

WASHER, 5TH DRIVE This part replaces 08211-25341.

09181-25167

$2.85

10

SNAP RING

09380-25003

$2.80

11

BEARING (22X56X16) This part replaces 09262-22014.

09262-22028

$69.91

12

BEARING (17X40X12) This part replaces 09262-17018.

09262-17027

$37.62

13

RETAINER,CNTR SHAFT BRG

24741-14A00

$10.35

14

PLUG, DRAIN This part replaces 01107-08166.

01500-0816B

$2.50

15

DRIVESHAFT

24131-14A00

Unavailable

16

GEAR, 1ST DRIVEN This part replaces 24311-14A00.

24311-14A01

$127.13

17

BUSH

09300-20032

$19.02

18

WASHER, LH

08211-20301

$2.97

19

GEAR, 2ND DRIVEN (NT:26)

24321-14A00

Unavailable

20

BUSH

09301-25002

$19.93

21

SNAP RING

09380-25003

$2.80

22

GEAR, 3RD DRIVEN (NT:24) This part replaces 24331-14A00.

24331-14A05

Unavailable

23

BUSH, 3RD DRIVEN GEAR This part replaces 24332-24500.

24332-24510

$21.07

24

WASHER

09169-25001

$2.95

25

WASHER,LOCK (25.1X41X1.5)

09167-25013

$3.58

26

WASHER

09167-25016

$4.03

27

GEAR, 4TH DRIVEN This part replaces 24341-14A01.

24341-14A10

$127.63

28

GEAR, 5TH DRIVEN This part replaces 24351-14A00.

24351-14A10

$125.27

29

BEARING, RH

09262-20059

$27.83

30

BEARING, LH

09262-25066

Unavailable

31

SEAL,OIL (25X45X5)

09283-25076

$9.33

32

HOLDER, OIL SEAL This part replaces 24751-14A00.

24751-14A01

Unavailable

33

BOLT This part replaces 01107-06126.

01500-0612A

$1.80

34

SPROCKET (NT:16)

27511-14A01

Unavailable

35

PLATE (YELLOW) This part replaces 27512-14A00.

27512-14A11

Unavailable

36

BOLT

09111-06039

$5.43

37

CHAIN, DRIVE (DID520V7x108LE) | DID 520 VC This part replaces 27600-38430.

27600-01C10-108

Unavailable
