1985 Suzuki SP600 Stand - Rear Brake Diagram

← All diagrams

Find the part on the Stand - Rear Brake diagram for your 1985 Suzuki SP600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

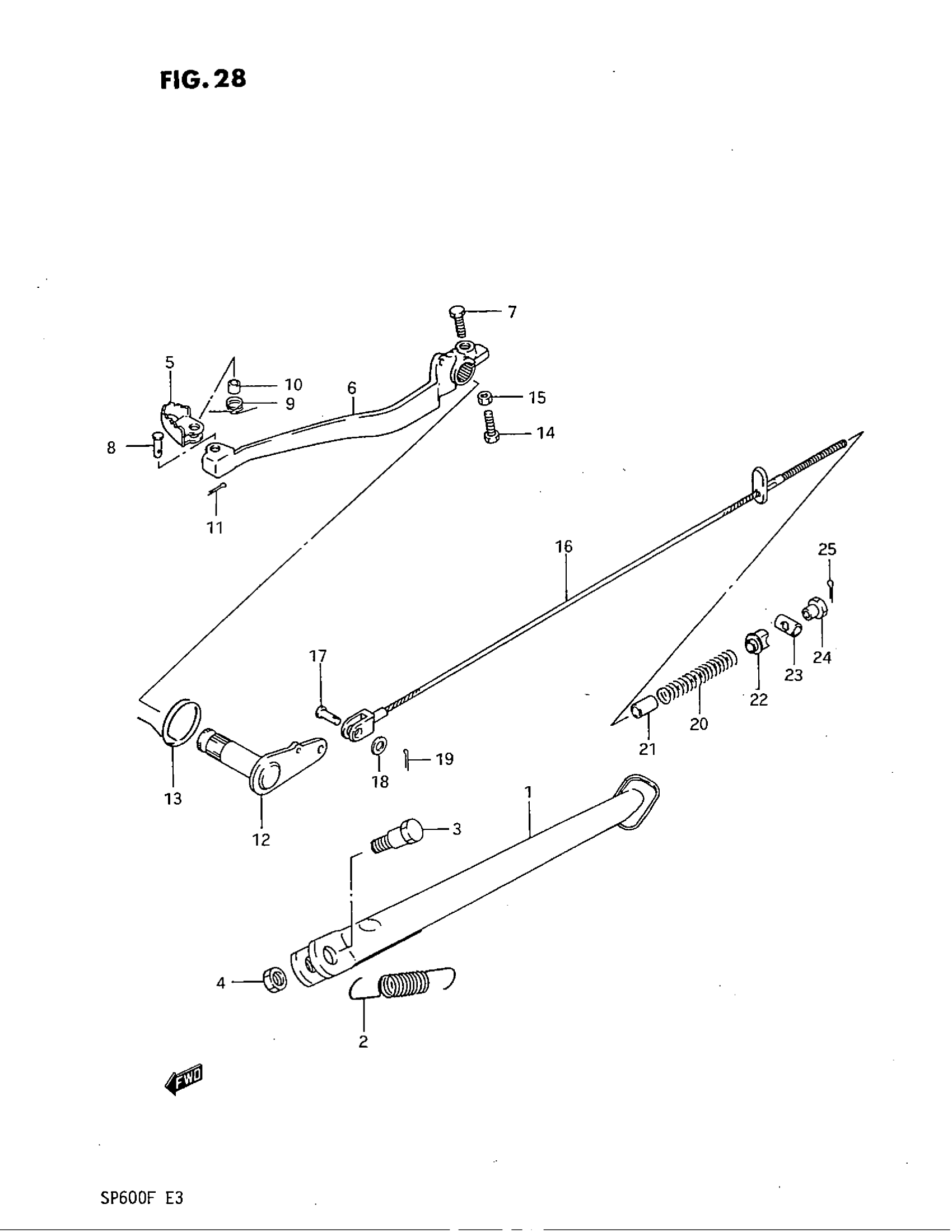

1985 Suzuki SP600 Stand - Rear Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STAND, PROP (BLACK)

42310-14A00-019

1
Out of stock

2

SPRING This part replaces 09443-15015.

09443-15026-XC0

1
Out of stock

3

BOLT This part replaces 09111-10019.

09111-10047

1
Out of stock

4

NUT This part replaces 08310-22108.

08310-00107

1
Out of stock

5

PEDAL, BRAKE

43110-14130

1
Out of stock

6

ARM, PEDAL

43120-14A00

1
Out of stock

7

BOLT, GEAR SHIFT LINK This part replaces 01107-06205.

01500-0620A

1
Out of stock

8

PIN

09200-06038

1
Out of stock

9

SPRING This part replaces 09444-11004.

09444-11005

1
Out of stock

10

SPACER

09180-06137

1
Out of stock

11

.COTTER PIN This part replaces 04111-20158.

04111-2015A

1
Out of stock

12

ARM, BRAKE PEDAL ROD

43130-14A00

1
Out of stock

13

NO DESCRIPTION AVAILABLE This part replaces 09448-25005.

09448-25005-XC0

1
Out of stock

14

BOLT (6x27)

09100-06009

1
Out of stock

15

.NUT This part replaces 08310-11068.

08310-00067

1
Out of stock

16

CABLE, REAR BRAKE

58510-14A00

1
Out of stock

17

PIN, FRONT

09200-05001

1
Out of stock

18

.WASHER This part replaces 08322-21066.

08322-0106B

1
Out of stock

19

.COTTER PIN This part replaces 04111-20158.

04111-2015A

1
Out of stock

20

SPRING

09440-11012

1
Out of stock

21

HOSE,5X10X600 This part replaces 61155-79000.

44421-13ER0

1
Out of stock

22

CUSHION, PIN

43370-37300

1
Out of stock

23

PIN

43380-37200

1
Out of stock

24

.NUT This part replaces 09150-06009.

09150-06010

1
Out of stock

25

.COTTER PIN This part replaces 04111-20158.

04111-2015A

1
Out of stock
