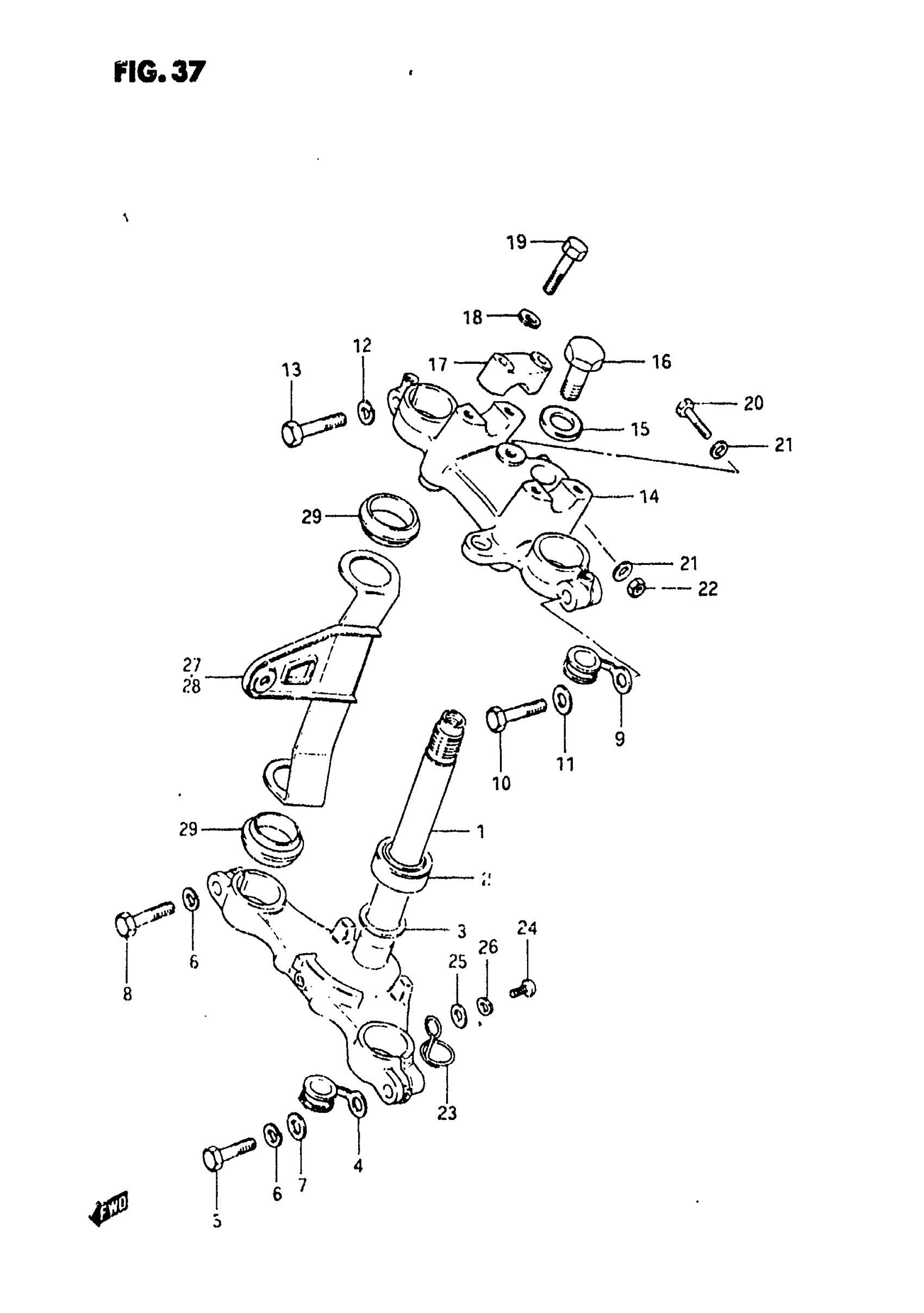

Suzuki SP250 (1983) STEERING STEM Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 3 This part replaces 51410-38210-08C.

51410-38230-08C

Unavailable

2

RT 30X55X17 BEA This part replaces 09265-30005.

09265-30034

$57.05

3

SHIM, 30X40X1.5 This part replaces 08211-30402.

09181-30184

$3.07

4

CLIP

51453-38250

Unavailable

5

BOLT This part replaces 01107-12458.

01500-12457

$6.12

6

LOCK WASHER This part replaces 08321-21128.

08321-01127

$2.06

7

WASHER This part replaces 08322-11128.

08322-01127

$1.84

8

NO DESCRIPTION AVAILABLE This part replaces 01104-12408.

01500-12403

Unavailable

9

CLIP

51455-38250

Unavailable

10

BOLT This part replaces 01107-10408.

01500-10407

$3.55

11

WASHER This part replaces 08322-11108.

08322-01107

$2.15

12

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

13

BOLT This part replaces 01107-10408.

01500-10407

$3.55

14

HEAD, STEERING STEM (GOLD)

51311-38210-08C

Unavailable

15

WASHER

51356-41310

Unavailable

16

BOLT

51351-30540

Unavailable

17

HOLDER, HANDLE (GOLD)

56211-40300-08C

Unavailable

18

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

19

BOLT

01204-08357

$2.09

20

BOLT This part replaces 01107-08508.

01500-08507

$3.05

21

WASHER This part replaces 08322-21088.

08322-01087

$2.13

22

NUT This part replaces 08310-12088.

08310-00087

$2.13

23

CLIP

51452-48500

Unavailable

24

.SCREW This part replaces 02112-06148.

02112-0616B

$2.12

25

WASHER This part replaces 08322-21068.

08322-01067

$2.13

26

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

27

NO DESCRIPTION AVAILABLE This part replaces 51530-38210-291.

51500-38810-291

Unavailable

28

BRACKET, HEADLAMP LH (BLACK)

51540-38210-291

Unavailable

29

GASKET

51556-41410

Unavailable
