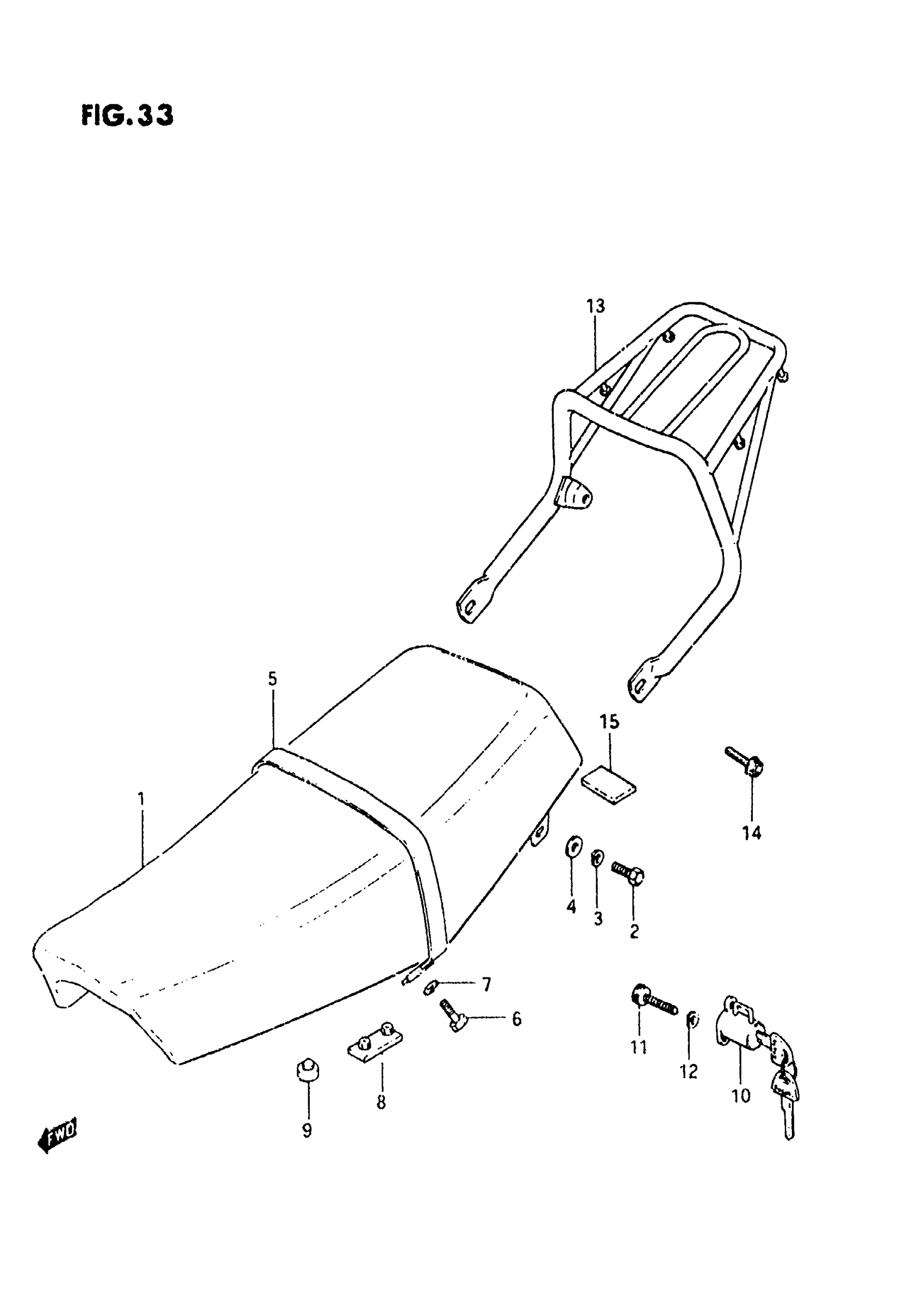

Suzuki SP250 (1983) SEAT Diagram

#

Description
Price

1

SEAT ASSY (BLUE) | MODEL Z This part replaces 45100-38200-47U.

45100-38201-49R

Unavailable

1

SEAT ASSY (BLUE) | MODEL D

45100-38201-49R

Unavailable

2

PLUG, DRAIN This part replaces 01107-08168.

01500-0816B

$2.50

3

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

4

WASHER This part replaces 08322-11088.

08322-01087

$2.13

5

BAND, SEAT GRIP (BLACK) | MODEL Z

45180-38200-48H

Unavailable

5

BAND, SEAT GRIP (BLACK) | MODEL D This part replaces 45180-38200-49R.

45180-38200-48H

Unavailable

6

PLUG, DRAIN This part replaces 01107-08168.

01500-0816B

$2.50

7

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

8

CUSHION

09321-08009

$3.05

9

CUSHION

09329-10001

$2.12

10

LOCK SET, HELME This part replaces 95700-35821.

95700-49850

Unavailable

11

BOLT, NO.3 This part replaces 09106-06024.

07130-0610B

$3.21

12

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

13

CARRIER, SPORTS | OPT

46310-38200

Unavailable

14

BOLT | OPT This part replaces 01517-08258.

01550-08257

$2.81

15

TAPE, SEAT UNDER This part replaces 94982-38200.

94982-38201

Unavailable
