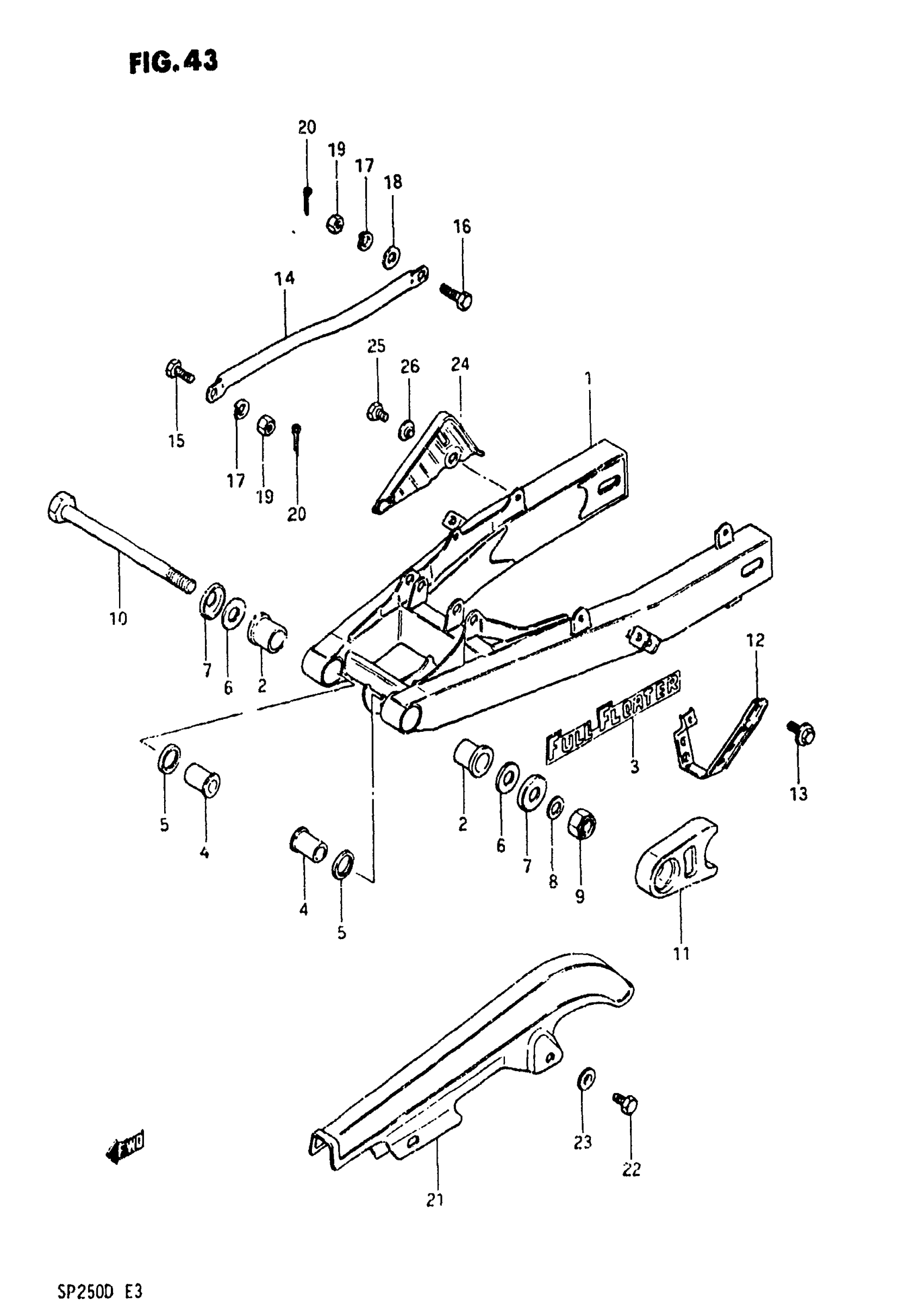

Suzuki SP250 (1983) REAR SWINGING ARM Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL Z This part replaces 61000-38200-08C.

61000-38201-08C

Unavailable

1

SWINGING ARM, REAR (GOLD) | MODEL D; Includes Item(s) 2 - 3

61000-38270-08C

Unavailable

2

BUSH

61261-38200

Unavailable

3

EMBLEM | MODEL Z

68381-20400-64D

Unavailable

3

EMBLEM | MODEL D

68381-14110-69L

Unavailable

4

SPACER

61251-38200

Unavailable

5

OIL SEAS

09286-20001

$4.32

6

WASHER

08211-15341

$2.85

7

COVER This part replaces 61262-38200.

61262-22A01

$6.05

8

WASHER This part replaces 08322-11148.

08322-01147

$1.91

9

NUT This part replaces 08319-21148.

08319-2114A

$3.96

10

NO DESCRIPTION AVAILABLE This part replaces 61211-38200.

64711-26B00

Unavailable

11

BUFFER, CHAIN DEFENSE

61273-38200

Unavailable

12

GUIDE, CHAIN This part replaces 61341-30500.

61341-30501

Unavailable

13

BOLT This part replaces 01517-08128.

01550-08127

$2.85

14

TORQUE LINK, REAR (GOLD)

64311-31001-08C

Unavailable

15

BOLT, FRONT

09111-08012

$3.78

16

BOLT, REAR

09111-08013

$3.04

17

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

18

WASHER This part replaces 08322-11088.

08322-01087

$2.13

19

NUT

09140-08008

$1.49

20

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

21

NO DESCRIPTION AVAILABLE | MODEL Z This part replaces 61311-38201-291.

61311-38203

Unavailable

21

NO DESCRIPTION AVAILABLE | MODEL D This part replaces 61311-38202-291.

61311-38203

Unavailable

22

BOLT, PLATE (6X8) This part replaces 09100-06092.

09100-06157

$2.72

23

WASHER

09169-06026

$2.20

24

GUARD

61391-38200

Unavailable

25

BOLT, PLATE (6X8) This part replaces 09100-06092.

09100-06157

$2.72

26

WASHER

09169-06026

$2.20
