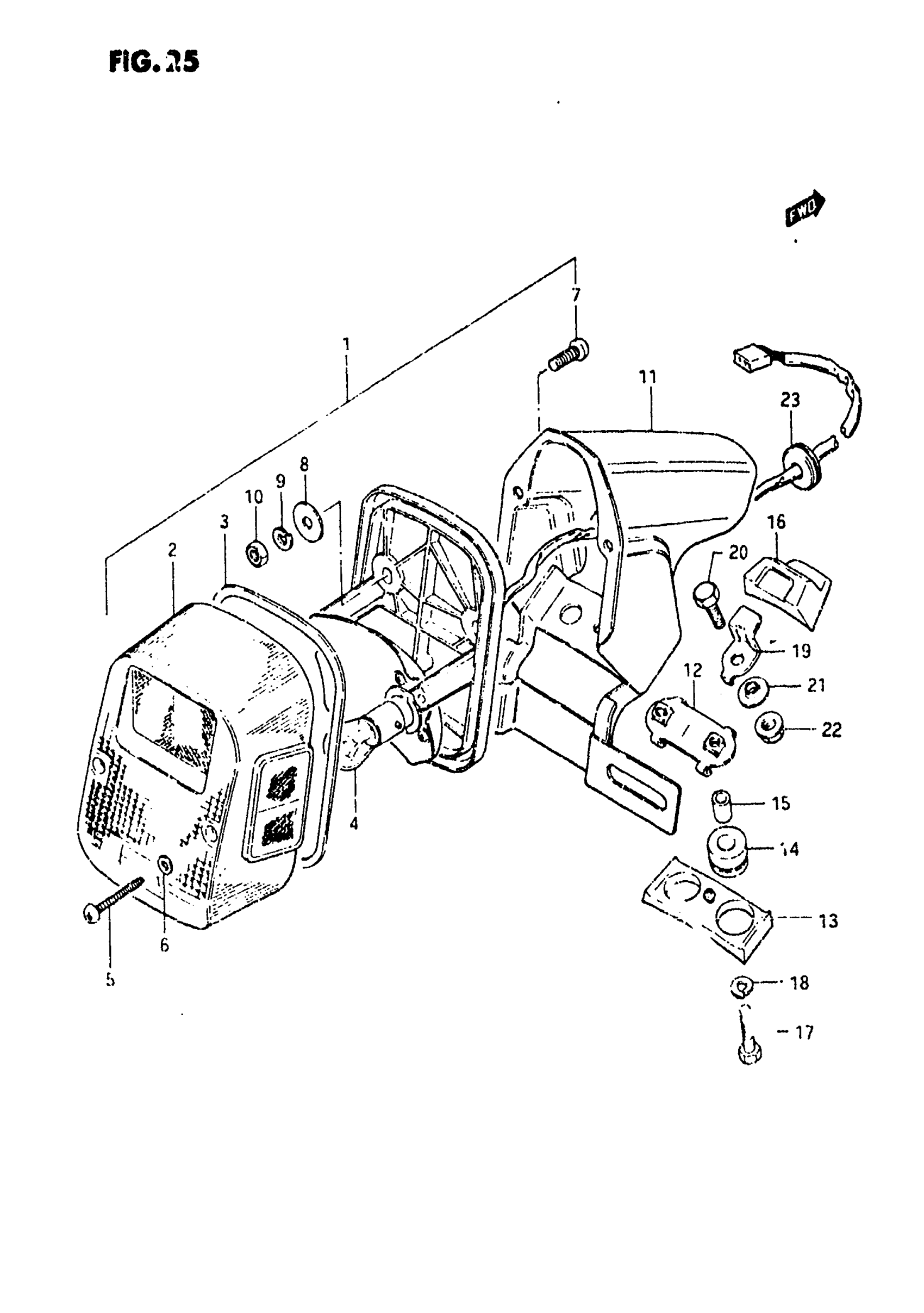

Suzuki SP250 (1983) REAR COMBINATION LAMP Diagram

#

Description
Price

1

LAMP UNIT, REAR COMBINATION | Includes Item(s) 2 - 10

35720-38230

Unavailable

2

LENS

35712-38230

Unavailable

3

GASKET

35713-38210

Unavailable

4

BULB (6V,32/3CP)

09471-06030

Unavailable

5

SCREW This part replaces 03211-04258.

03211-0425B

$2.70

6

GASKET

35627-43010

$2.28

7

SCREW This part replaces 02112-05168.

02112-05167

$1.97

8

WASHER This part replaces 35727-36510.

35727-37410

Unavailable

9

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

10

NUT This part replaces 08310-11058.

08310-00057

$1.84

11

BRACKET UNIT | Includes Item(s) 12 - 16

35730-38230

Unavailable

12

PLATE

35716-38210

Unavailable

13

CUSHION

35765-38210

Unavailable

14

CUSHION

35765-30950

$8.95

15

SPACER

35766-38210

Unavailable

16

CUSHION

35717-38210

Unavailable

17

BOLT This part replaces 01107-06258.

01500-06257

$1.97

18

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

19

PLATE

35793-37201

Unavailable

20

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

21

WASHER This part replaces 09169-06025.

09169-06010

$2.60

22

NUT This part replaces 08316-26066.

08316-1006B

$2.50

23

GROMMET

09308-09004

Unavailable
