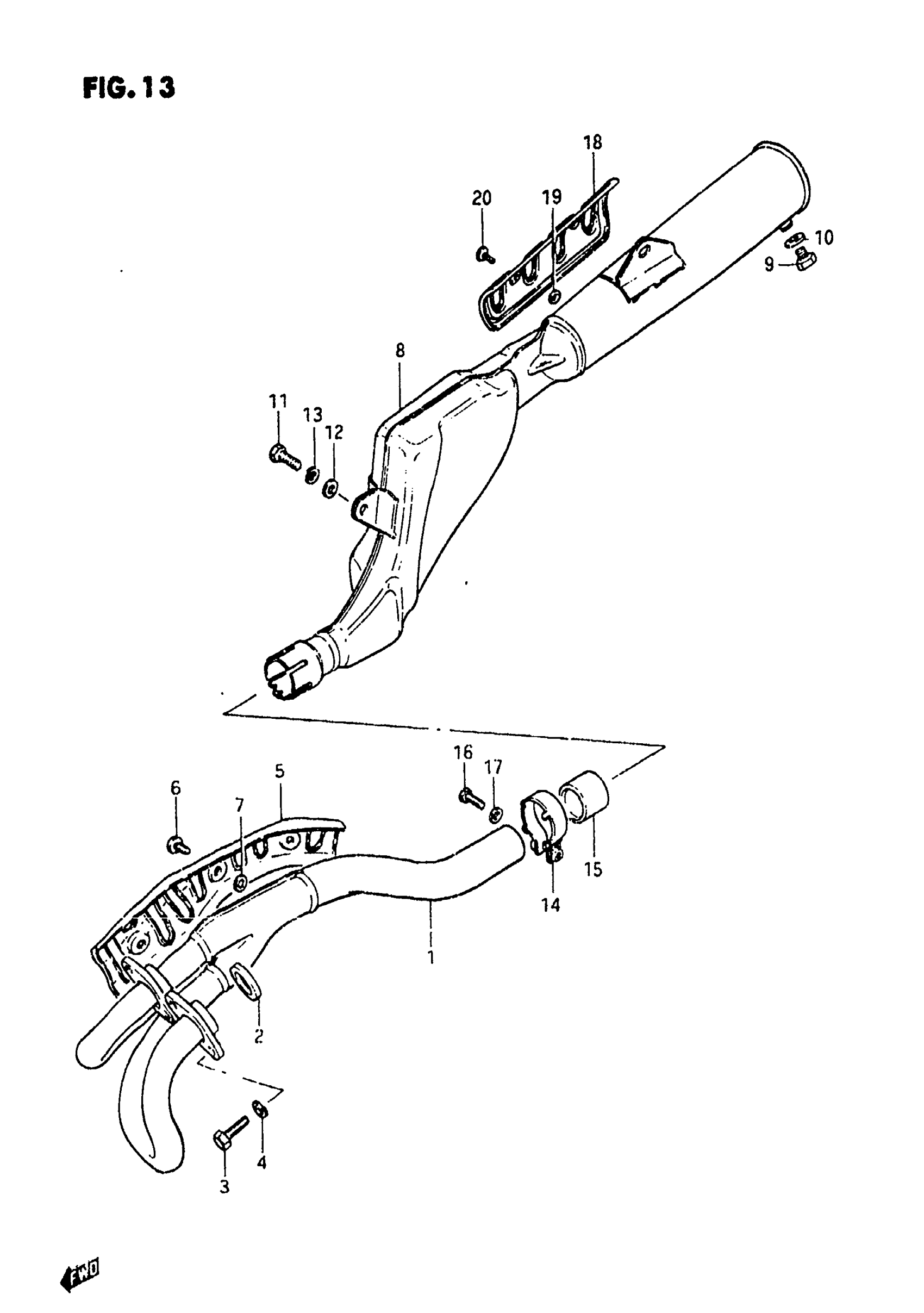

Suzuki SP250 (1983) MUFFLER Diagram

#

Description
Price

1

PIPE, EXHAUST This part replaces 14150-38201.

14150-38202-H01

Unavailable

2

GASKET, EXHAUST PIPE This part replaces 14181-03310.

14181-37D00

$4.56

3

BOLT, GEAR SHIFT ARM This part replaces 01107-06255.

01500-0625A

$1.78

4

LOCK WASHER This part replaces 08321-21065.

08321-0106A

$1.84

5

COVER

14186-38200

Unavailable

6

STOPPER, CL RLSE CAM SHAFT This part replaces 02142-06105.

02142-0610A

$1.49

7

GASKET,MUFFLER This part replaces 09168-06005.

09168-06105

$2.12

8

MUFFLER ASSY | Includes Item(s) 9 - 10 This part replaces 14301-38210.

14301-38240-H01

Unavailable

9

PLUG, DRAIN

09247-12103

$2.84

10

GASKET

09168-12002

$1.59

11

BOLT This part replaces 01107-08205.

01500-0820A

$2.28

12

WASHER This part replaces 08322-11085.

08322-0108A

$1.92

13

LOCK WASHER This part replaces 08321-21085.

08321-0108A

$1.84

14

CLAMP

14459-32400

Unavailable

15

CONNECTOR,MUFFL This part replaces 14771-38200.

14771-38200-H17

Unavailable

16

BOLT

09100-08195

Unavailable

17

WASHER This part replaces 08322-11085.

08322-0108A

$1.92

18

COVER

14781-38200

Unavailable

19

GASKET,MUFFLER This part replaces 09168-06005.

09168-06105

$2.12

20

STOPPER, CL RLSE CAM SHAFT This part replaces 02142-06105.

02142-0610A

$1.49
