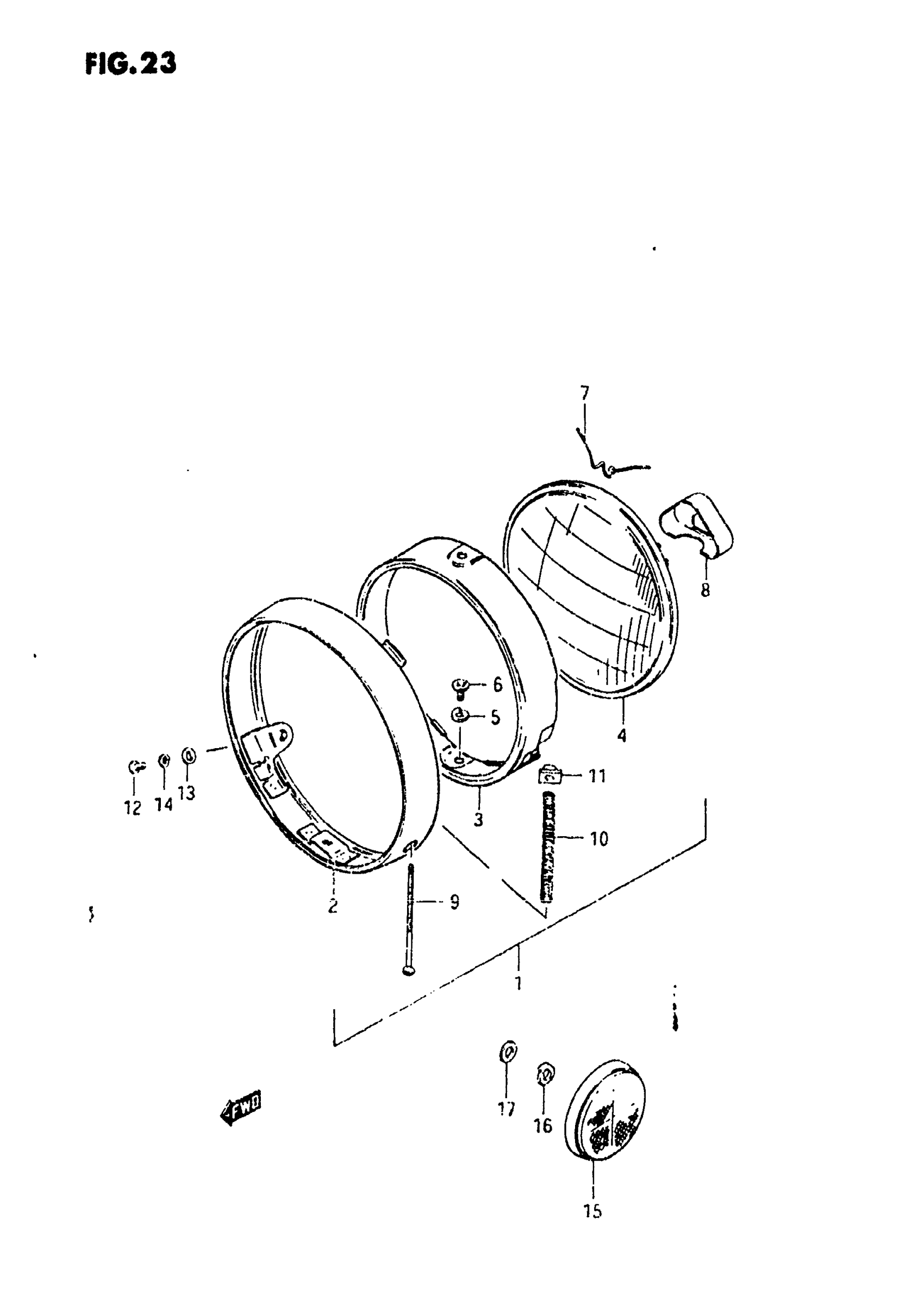

Suzuki SP250 (1983) HEADLAMP Diagram

#

Description
Price

1

HEADLAMP ASSY | Includes Item(s) 2 - 11

35100-37130

Unavailable

2

RIM

35111-37130

Unavailable

3

RING

35127-29610

Unavailable

4

UNIT (6V,35/35W)

35121-32410

Unavailable

5

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

6

SCREW

35136-29610

Unavailable

7

SPRING

35128-29611

Unavailable

8

COVER, SOCKET

35173-29610

Unavailable

9

SCREW

35151-31610

Unavailable

10

SPRING | FROM 35154-29610

35154-33630

Unavailable

11

NUT

35152-15611

$3.25

12

SCREW This part replaces 02112-04128.

02112-0412A

$1.49

13

WASHER This part replaces 08322-21048.

08322-01047

$1.86

14

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

15

REFLEX REFLECTOR, FRONT

35950-30910

$30.05

16

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

17

WASHER This part replaces 08322-21058.

08322-01057

$2.13
