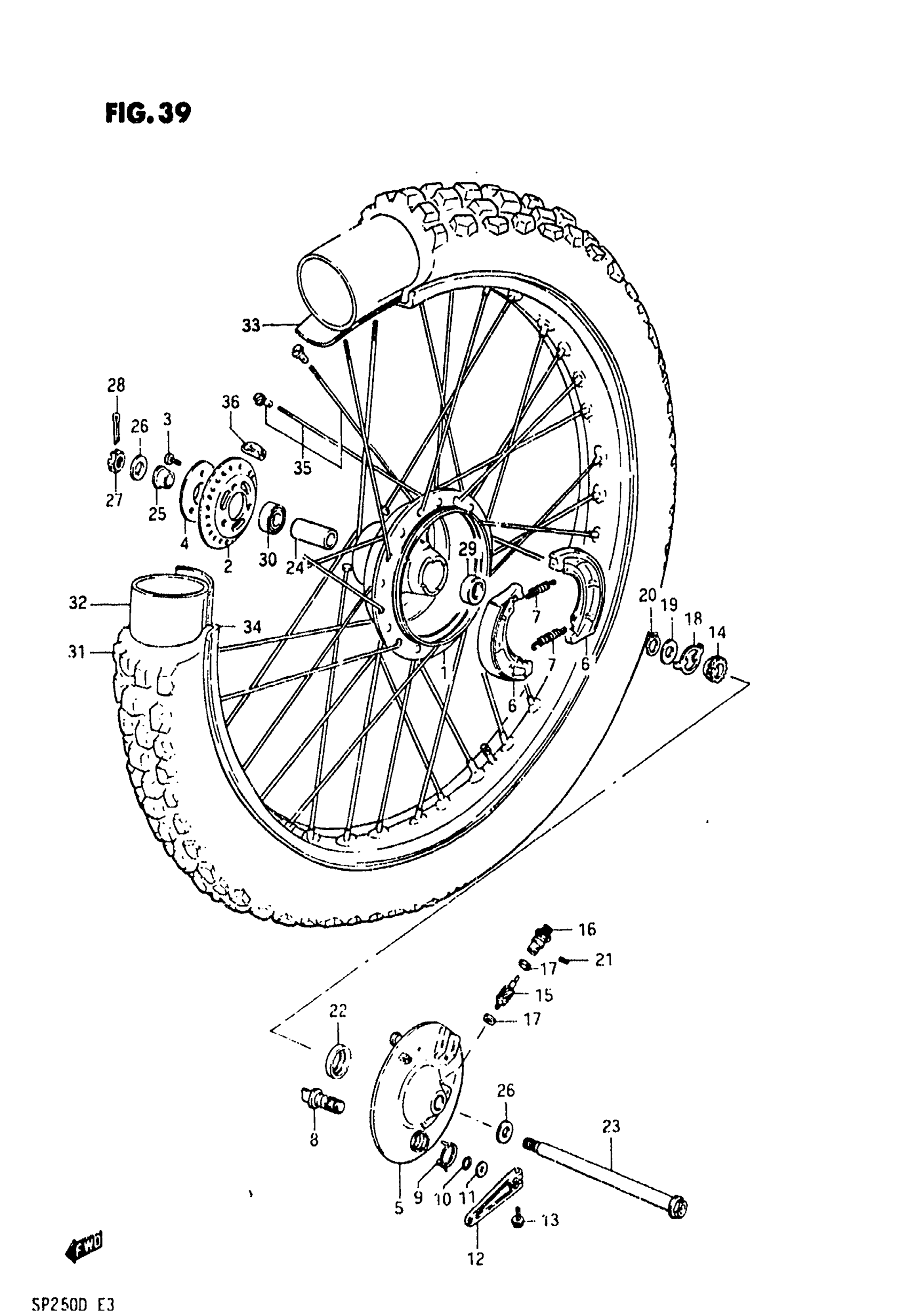

Suzuki SP250 (1983) FRONT WHEEL Diagram

#

Description
Price

23

AXLE, FRONT

54711-38200

Unavailable

24

SPACER (12.5X19X52) This part replaces 09180-12041.

09180-12144

$10.30

25

SPACER (12.2X19X18.5)

54741-41100

$15.13

26

WASHER This part replaces 08322-11128.

08322-01127

$1.84

27

NUT This part replaces 08314-41128.

08314-4012A

$2.50

28

PIN This part replaces 04111-30308.

04111-3030A

$1.49

29

BEARING This part replaces 08143-62017.

08143-6201B

$10.80

30

BEARING This part replaces 08123-62017.

08133-62017

$18.47

31

TIRE, FRONT (3.00-21) | IRC This part replaces 55100-38210.

55100-37410

Unavailable

31

TIRE, FRONT (3.00-21) | BS

55100-38230

Unavailable

32

TIRE, FRONT This part replaces 55200-16510.

55200-16511

$36.73

33

PROTECTOR, INNER TUBE | 25X21 This part replaces 55261-16510.

55261-14540

$3.83

34

NO DESCRIPTION AVAILABLE | MODEL Z This part replaces 55311-38200.

55311-05210

Unavailable

34

RIM, WHEEL (1.60X21AL) | MODEL D

55311-38230

Unavailable

35

SPOKE SET

55320-38200

Unavailable

36

BALANCER

55411-30000

Unavailable
