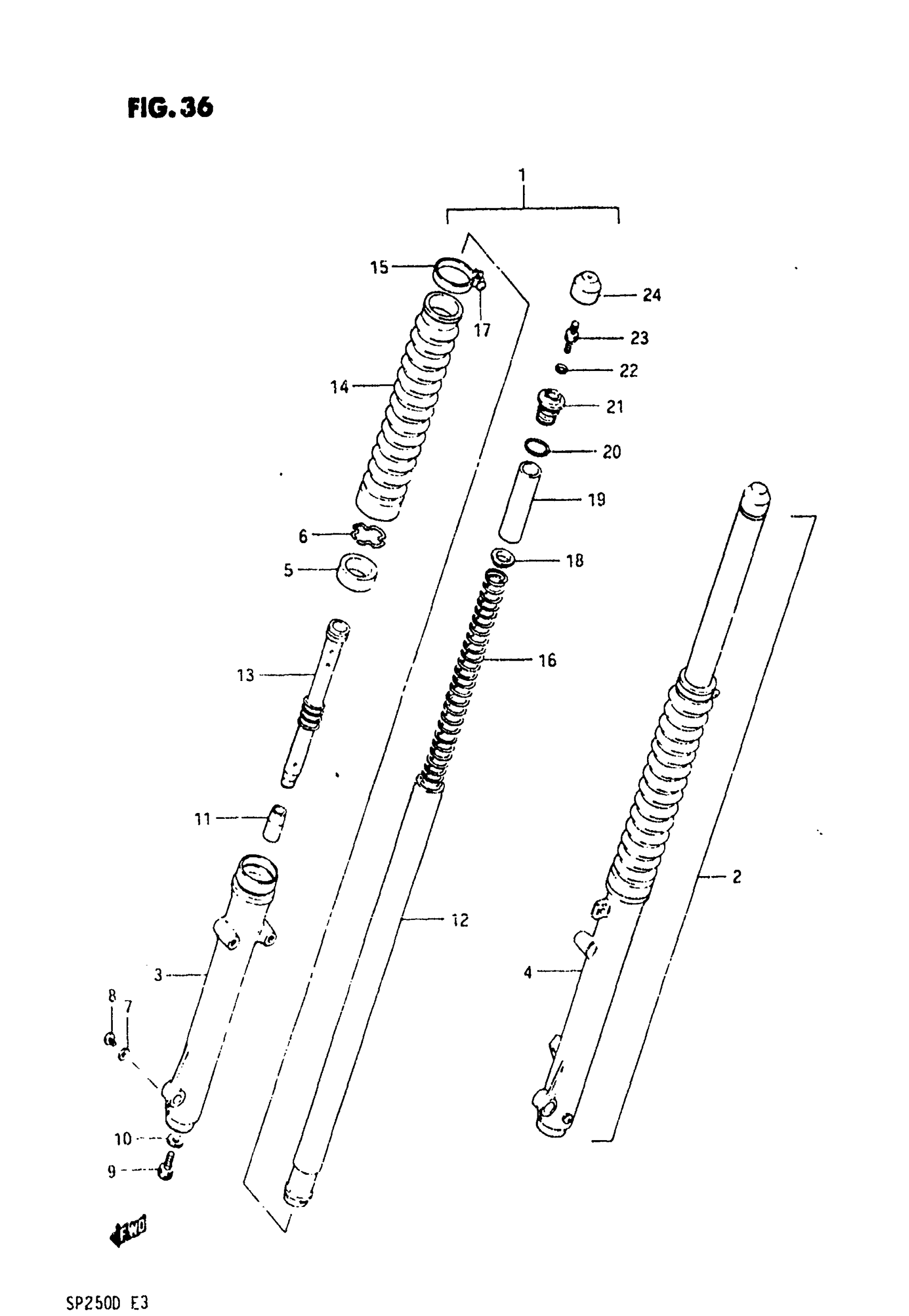

Suzuki SP250 (1983) FRONT FORK Diagram

#

Description
Price

1

DAMPER ASSY, RH

51103-38210

Unavailable

2

DAMPER ASSY, LH | Includes Item(s) 3 - 24

51104-38210

Unavailable

3

OUTER TUBE, RH

51130-38210

Unavailable

4

OUTER TUBE, LH

51140-38210

Unavailable

5

OIL SEAL

51153-34010

Unavailable

6

SNAP RING

51156-30400

Unavailable

7

GASKET

51183-03010

$2.07

8

SCREW This part replaces 02112-04088.

02112-04087

$1.49

9

BOLT

51147-16510

$4.34

10

GASKET

51148-41310

$2.26

11

PIECE, OIL LOCK This part replaces 51195-41210.

51195-49071

$21.43

12

INNER TUBE

51110-38210

Unavailable

13

CYLINDER

51146-30400

Unavailable

14

NO DESCRIPTION AVAILABLE This part replaces 51571-30540.

51571-38215-34S

Unavailable

15

BAND

51575-41410

Unavailable

16

SPRING

51171-38210

Unavailable

17

SCREW This part replaces 02112-04168.

02112-0416A

$1.49

18

GUIDE, SPRING

51172-38010

Unavailable

19

SPACER

51176-38200

Unavailable

20

O RING

51117-16310

Unavailable

21

CAP

51351-40630

Unavailable

22

.O RING (D:1.9,ID:5.7) This part replaces 51117-14210.

09280-06005

$1.49

23

VALVE This part replaces 51293-14200.

51169-14200

Unavailable

24

CAP

51189-41220

Unavailable
