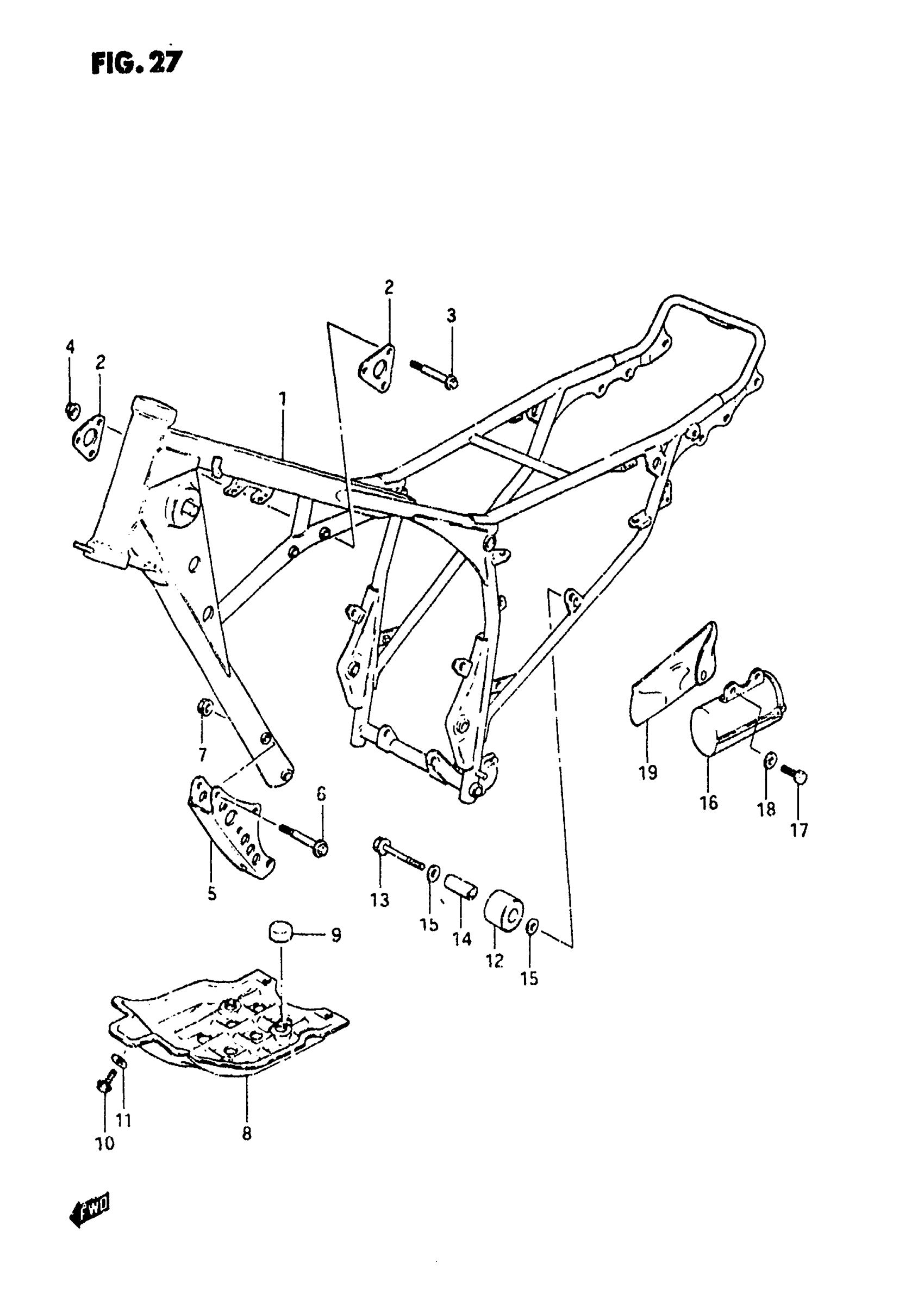

Suzuki SP250 (1983) FRAME Diagram

#

Description
Price

1

FRAME (BLACK) | MODEL Z This part replaces 41100-38200-019.

41100-38201-019

Unavailable

1

FRAME (BLACK) | MODEL D

41100-38201-019

Unavailable

2

PLATE, UPPER

41991-38200

Unavailable

3

BOLT, LH | MODEL Z This part replaces 01527-08507.

01550-08507

$3.55

3

BOLT (8X50) | MODEL D

09103-08081

$3.72

4

NUT This part replaces 08319-31085.

08319-3108A

$2.32

5

NO DESCRIPTION AVAILABLE This part replaces 41992-38200.

41992-38200-019

Unavailable

6

BOLT | MODEL Z This part replaces 01527-08657.

01550-08657

$4.68

6

BOLT (8X67) | MODEL D This part replaces 09103-08075.

09103-08037

$5.57

7

NUT This part replaces 08319-31085.

08319-3108A

$2.32

8

NO DESCRIPTION AVAILABLE This part replaces 42510-38200-019.

42510-38200-13L

Unavailable

9

CUSHION

09329-12003

Unavailable

10

BOLT This part replaces 01517-06128.

01550-06127

$2.30

11

WASHER, CLUTCH RLSE NO.2 This part replaces 09160-06069.

09160-06052

$1.49

12

ROLLER, CHAIN

43911-14200

Unavailable

13

BOLT

09103-08043

$3.18

14

SPACER

43913-40400

Unavailable

15

WASHER This part replaces 09160-08035.

09160-08130

$2.03

16

HOLDER, TOOL This part replaces 41551-38200.

41551-38201

$41.63

17

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

18

WASHER (6.5X18X1.6) This part replaces 09160-06039.

09160-06109

$1.49

19

TOOL ASSY This part replaces 09800-00242.

09800-21024

Unavailable
