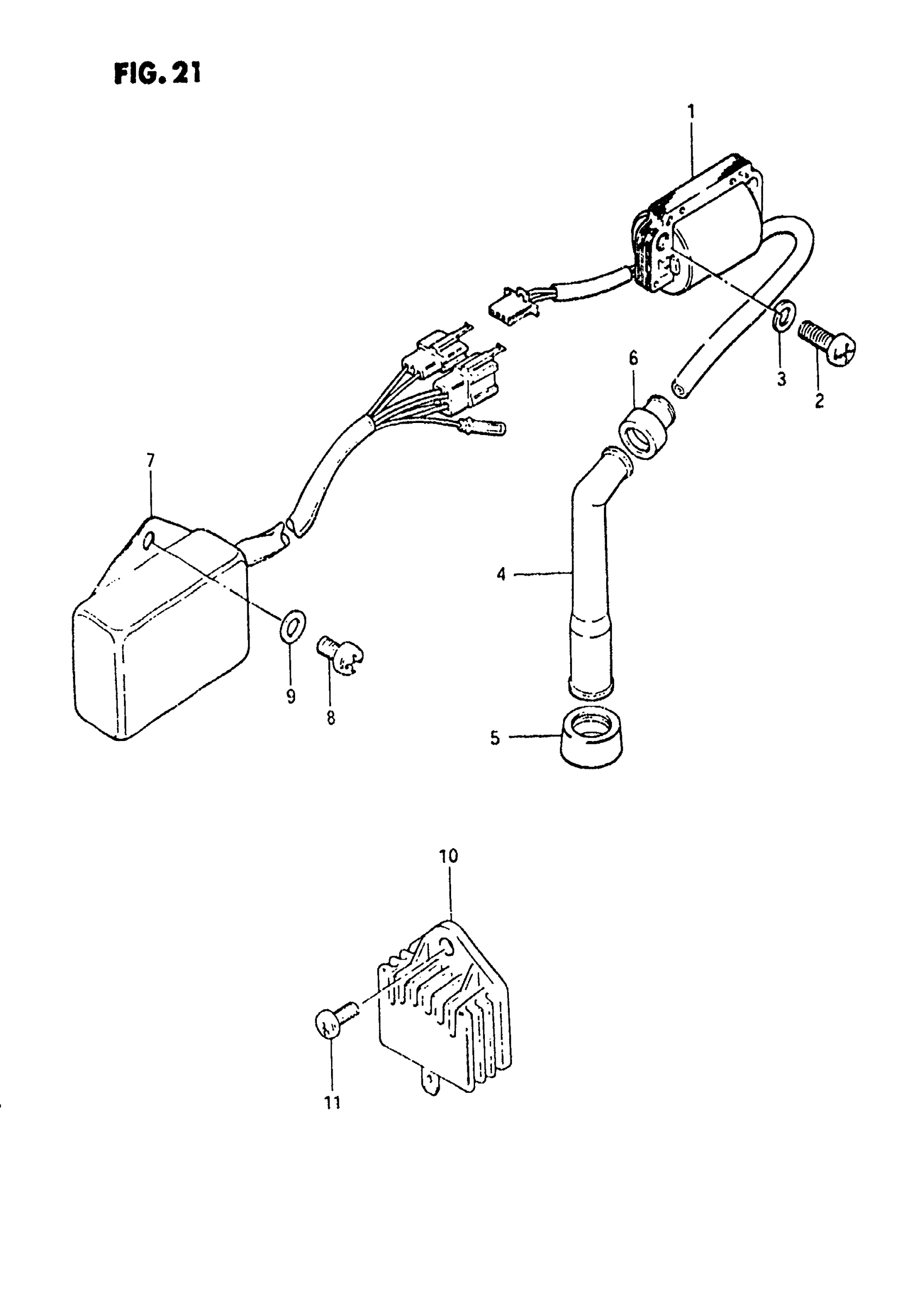

Suzuki SP250 (1983) ELECTRICAL Diagram

#

Description
Price

1

COIL ASSY, IGNITION

33410-38210

Unavailable

2

SCREW This part replaces 02112-06208.

02112-06207

$1.78

3

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

4

CAP, SPARK PLUG

33510-45010

$24.99

5

SEAL, SPARK PLUG

33541-38210

$4.68

6

SEAL,HIGH TENSION CORD (SIDE) This part replaces 33542-98000.

33542-38B00

$4.34

7

IGNITER UNIT

32900-38210

Unavailable

8

SCREW This part replaces 02112-06108.

02112-06107

$1.49

9

WASHER This part replaces 08322-21068.

08322-01067

$2.13

10

RECTIFIER, REGULATOR

32800-38200

Unavailable

11

SCREW This part replaces 02112-06128.

02112-06127

$1.84
