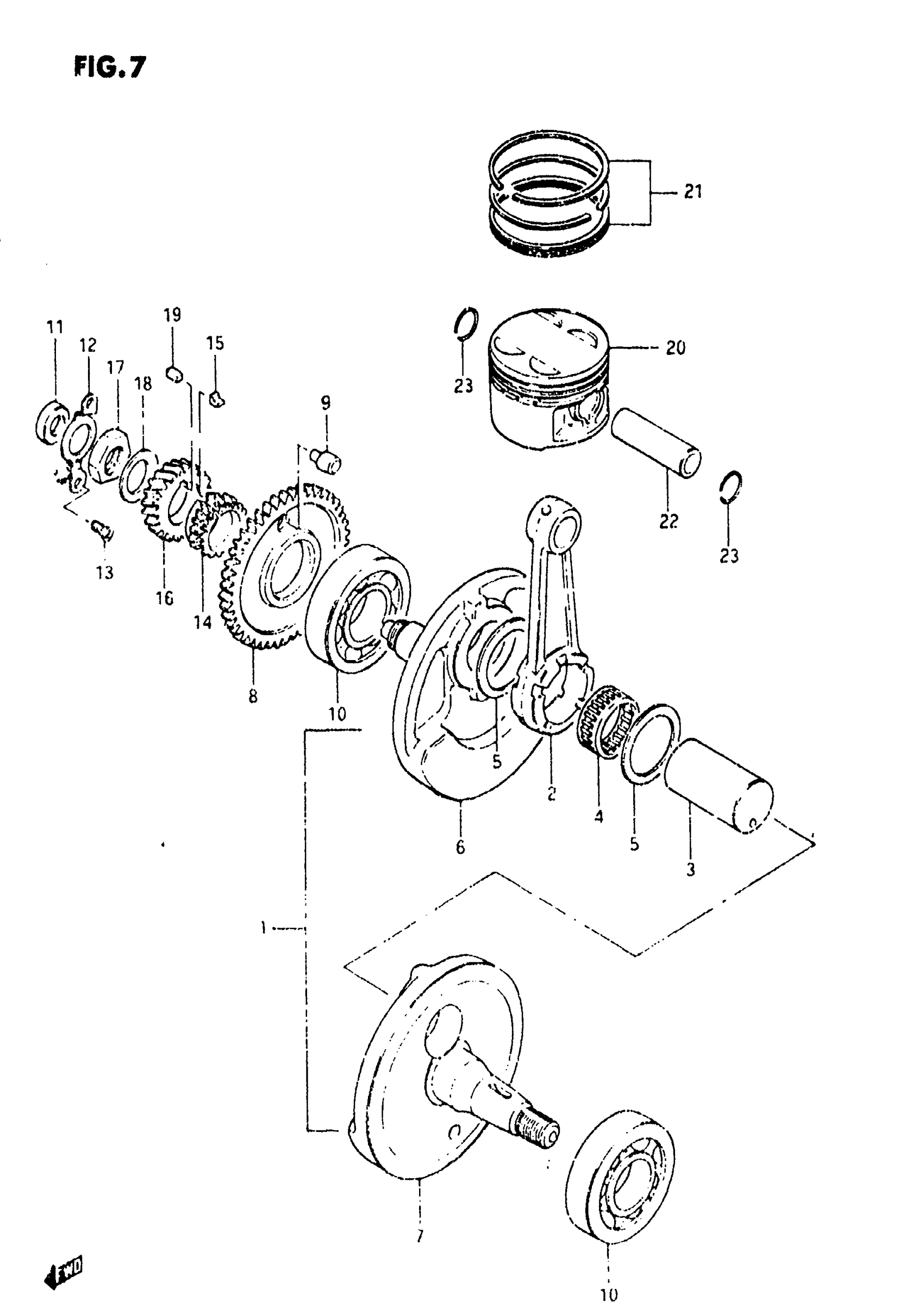

Suzuki SP250 (1983) CRANKSHAFT Diagram

#

Description
Price

1

CRANKSHAFT ASSY | Includes Item(s) 2 - 9 This part replaces 12200-38200.

12200-38201

Unavailable

2

ROD, CONNECTING This part replaces 12161-38200.

12161-38201

Unavailable

3

PIN, CRANK This part replaces 12211-38200.

12211-38211

Unavailable

4

BEARING (31X39X21) This part replaces 09263-31005.

09263-31004

$64.62

5

WASHER

09160-31002

$7.82

6

CRANKSHAFT, RH

12221-38200

Unavailable

7

CRANKSHAFT, LH

12261-38200

Unavailable

8

GEAR, CRANK BALANCER DRIVE This part replaces 12661-38201.

12661-38202

Unavailable

9

PIN

09209-12006

Unavailable

10

BEARING, RH (30x72x19) This part replaces 09262-30059.

09262-30077

$58.43

11

OIL SEAL, RH

09282-14001

Unavailable

12

PLATE, RH

12548-38200

Unavailable

13

SCREW This part replaces 02122-05108.

02122-05107

$1.49

14

SPROCKET, DRIVE (NT:21)

12731-38200

Unavailable

15

KEY

12749-32400

Unavailable

16

GEAR, PRIMARY DRIVE (NT:21)

21111-38200

Unavailable

17

NUT This part replaces 09140-20008.

09140-20013

$4.26

18

LOCK WASHER

09164-20003

$3.85

19

KEY, GEAR

09421-07002

Unavailable

20

PISTON This part replaces 12111-38201.

12111-38201-0F0

$91.88

20

PISTON SET (OS:0.5) | OPT This part replaces 12111-38201-050.

12100-38200-050

$161.73

20

PISTON SET (OS:1.0) | OPT This part replaces 12111-38201-100.

12100-38200-100

Unavailable

21

RING SET, PISTON This part replaces 12140-49220.

12140-49270

$44.54

21

RING SET,PISTON | OPT This part replaces 12140-49220-050.

12140-49270-050

$56.23

21

RING SET, PISTON (OS:1.0) | OPT This part replaces 12140-49220-100.

12140-49221-100

Unavailable

22

PIN, PISTON This part replaces 12151-49202.

12151-15501

$17.37

23

CIRCLIP

09381-18002

$1.67
