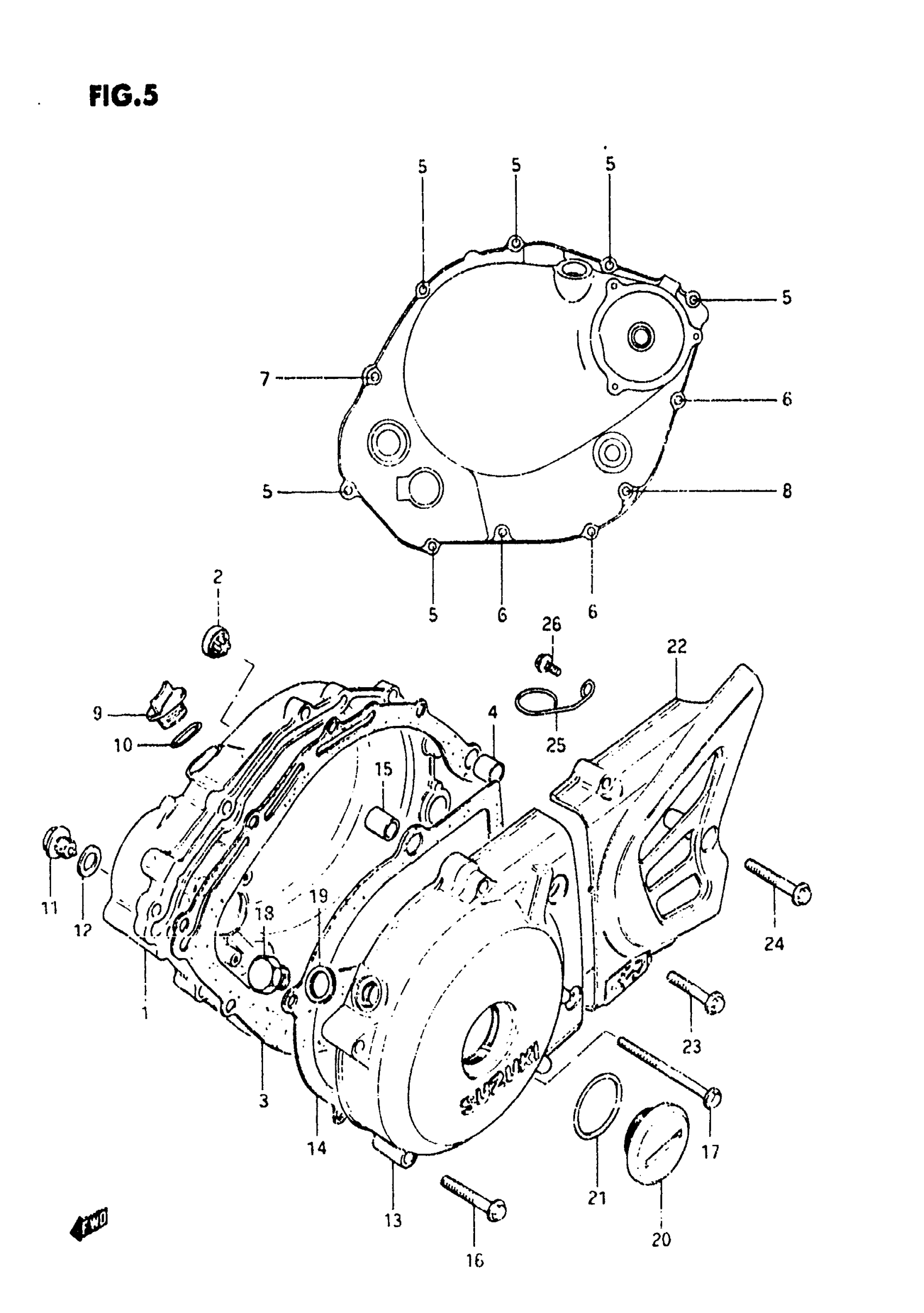

Suzuki SP250 (1983) CRANKCASE COVER (MODEL Z) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 This part replaces 11340-38200.

11340-38201

Unavailable

2

.LENS, OIL LEVEL CHECK

11971-45010

$16.76

3

GASKET, CLUTCH COVER This part replaces 11482-38200.

11482-38212

$27.42

4

PIN This part replaces 09206-13001.

04211-13189

$2.19

5

BOLT This part replaces 01547-06258.

01547-06257

$2.03

6

BOLT This part replaces 01547-06358.

01547-06357

$2.03

7

BOLT This part replaces 01547-06408.

01547-06407

$2.32

8

BOLT This part replaces 01547-06458.

01547-06457

$2.32

9

PLUG, OIL FILLER

09259-20007

$7.53

10

GASKET

09280-17003

$1.65

11

PLUG This part replaces 09247-14012.

09247-14026

$3.76

12

GASKET

09168-14004

$1.83

13

COVER, MAGNETO This part replaces 11351-38200.

11351-38230

Unavailable

14

GASKET,MAGNETO This part replaces 11483-38200.

11483-38210

Unavailable

15

PIN This part replaces 09206-13001.

04211-13189

$2.19

16

BOLT This part replaces 01547-06358.

01547-06357

$2.03

17

BOLT This part replaces 01547-06508.

01547-06507

$2.41

18

PLUG, T.D.C

09247-12104

$2.73

19

GASKET

09168-12002

$1.59

20

PLUG

09259-36006

Unavailable

21

.O-RING (D:3.1,ID:32.7)

09280-33004

$2.23

22

COVER, ENGINE SPROCKET This part replaces 11361-38200.

11361-38230

Unavailable

23

BOLT This part replaces 01544-05308.

01547-05307

$2.30

24

BOLT

01544-05358

Unavailable

25

CLAMP, CLEANER DRAIN HOSE

58621-17200

Unavailable

26

BOLT This part replaces 01517-06108.

01550-06107

$2.80
