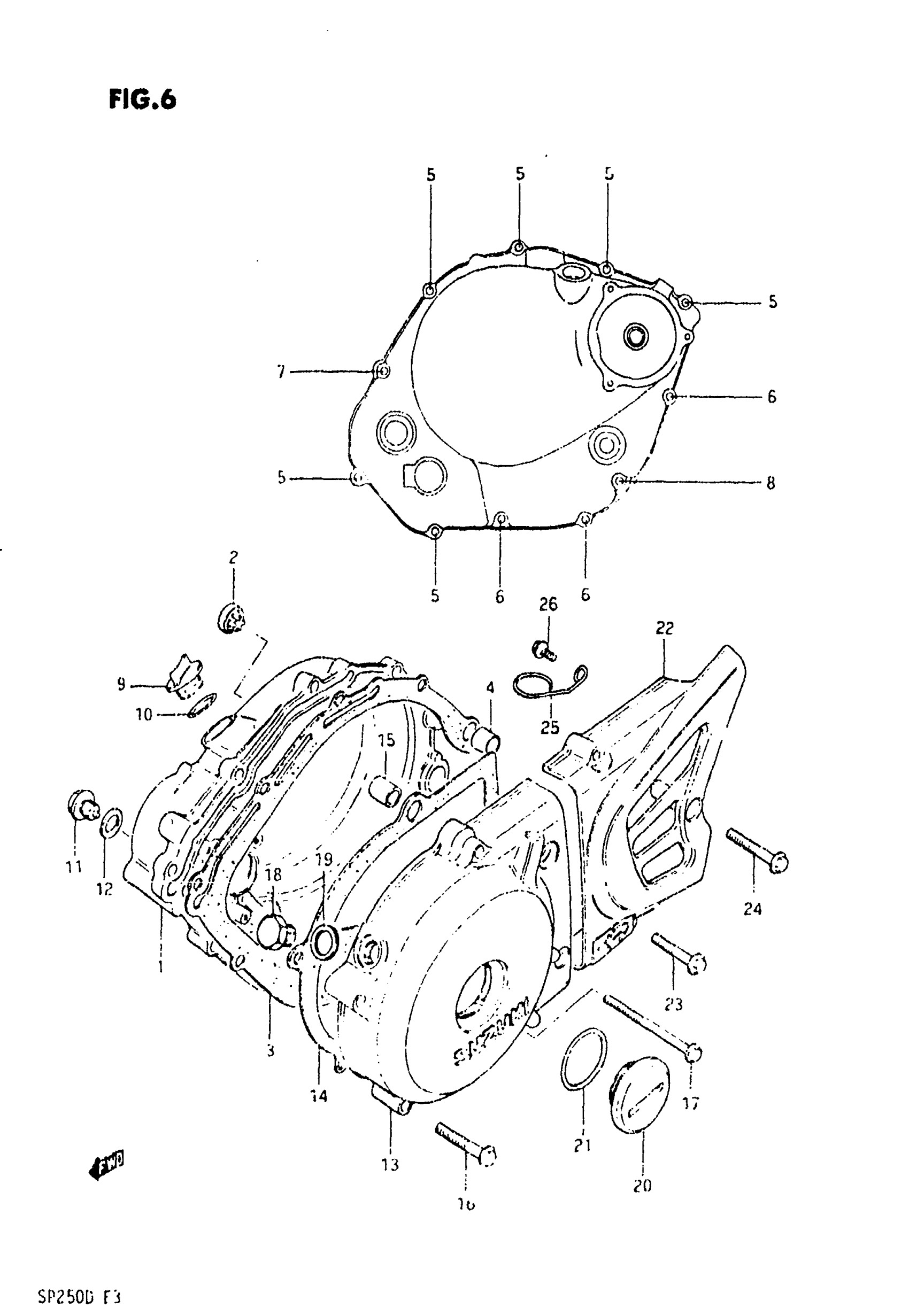

Suzuki SP250 (1983) CRANKCASE COVER (MODEL D) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 This part replaces 11340-38211.

11340-38240

Unavailable

2

.LENS, OIL LEVEL CHECK

11971-45010

$16.76

3

GASKET, CLUTCH COVER This part replaces 11482-38200.

11482-38212

$27.42

4

PIN This part replaces 09206-13001.

04211-13189

$2.19

5

BOLT (6x25)

01547-06255

Unavailable

6

BOLT, WATER PUMP This part replaces 01547-06355.

01547-0635B

$2.73

7

BOLT This part replaces 01547-06405.

01547-0640B

$2.75

8

BOLT This part replaces 01547-06455.

01547-0645B

$2.73

9

.PLUG This part replaces 09259-20008.

09259-20008-XC0

$7.50

10

GASKET

09280-17003

$1.65

11

PLUG This part replaces 09247-14012.

09247-14026

$3.76

12

GASKET

09168-14004

$1.83

13

COVER, MAGNETO This part replaces 11351-38210.

11351-38230

Unavailable

14

GASKET,MAGNETO This part replaces 11483-38200.

11483-38210

Unavailable

15

PIN This part replaces 09206-13001.

04211-13189

$2.19

16

BOLT, WATER PUMP This part replaces 01547-06355.

01547-0635B

$2.73

17

BOLT This part replaces 01547-06505.

01547-0650B

$2.75

18

PLUG, T.D.C

09247-12103

$2.84

19

GASKET

09168-12002

$1.59

20

PLUG, SHAFT HOLE This part replaces 09259-36005.

09259-36021

$13.80

21

.O-RING (D:3.1,ID:32.7)

09280-33004

$2.23

22

COVER, ENGINE SPROCKET This part replaces 11361-38210.

11361-38230

Unavailable

23

BOLT This part replaces 01547-05305.

01547-0530B

$2.56

24

BOLT This part replaces 01547-05355.

01547-0535B

$3.05

25

CLAMP, CLEANER DRAIN HOSE

58621-17200

Unavailable

26

BOLT This part replaces 01517-06108.

01550-06107

$2.80
