Description

Price

1

CHAIN, CAM SHAFT DRIVE This part replaces 12760-38200.

12760-13F00

$131.98

2

GUIDE,CAM CHAIN This part replaces 12771-38200.

12771-38201

$39.58

3

TENSIONER,CAM C This part replaces 12811-38200.

12811-38201

$36.78

4

BOLT

12812-32410

$4.52

5

GASKET (8.2X14X1) This part replaces 09168-08008.

09168-08016

$1.65

6

ADJUSTER ASSY, TENSIONER | MODEL Z This part replaces 12830-38200.

12830-38201

$143.67

6

ADJUSTER ASSY, TENSIONER | MODEL D; Includes Item(s) 7 This part replaces 12830-38210.

12830-38201

$143.67

7

GASKET This part replaces 12838-38200.

12838-38200-H17

$3.17

8

.GASKET,TENSIONER ADJUSTER This part replaces 12837-38200.

12837-24A10

$3.25

9

PLUG

12839-38200

$2.08

10

BOLT | MODEL Z This part replaces 09106-06003.

07130-06257

$3.16

10

BOLT | MODEL D This part replaces 09106-06029.

07130-0625B

$3.04

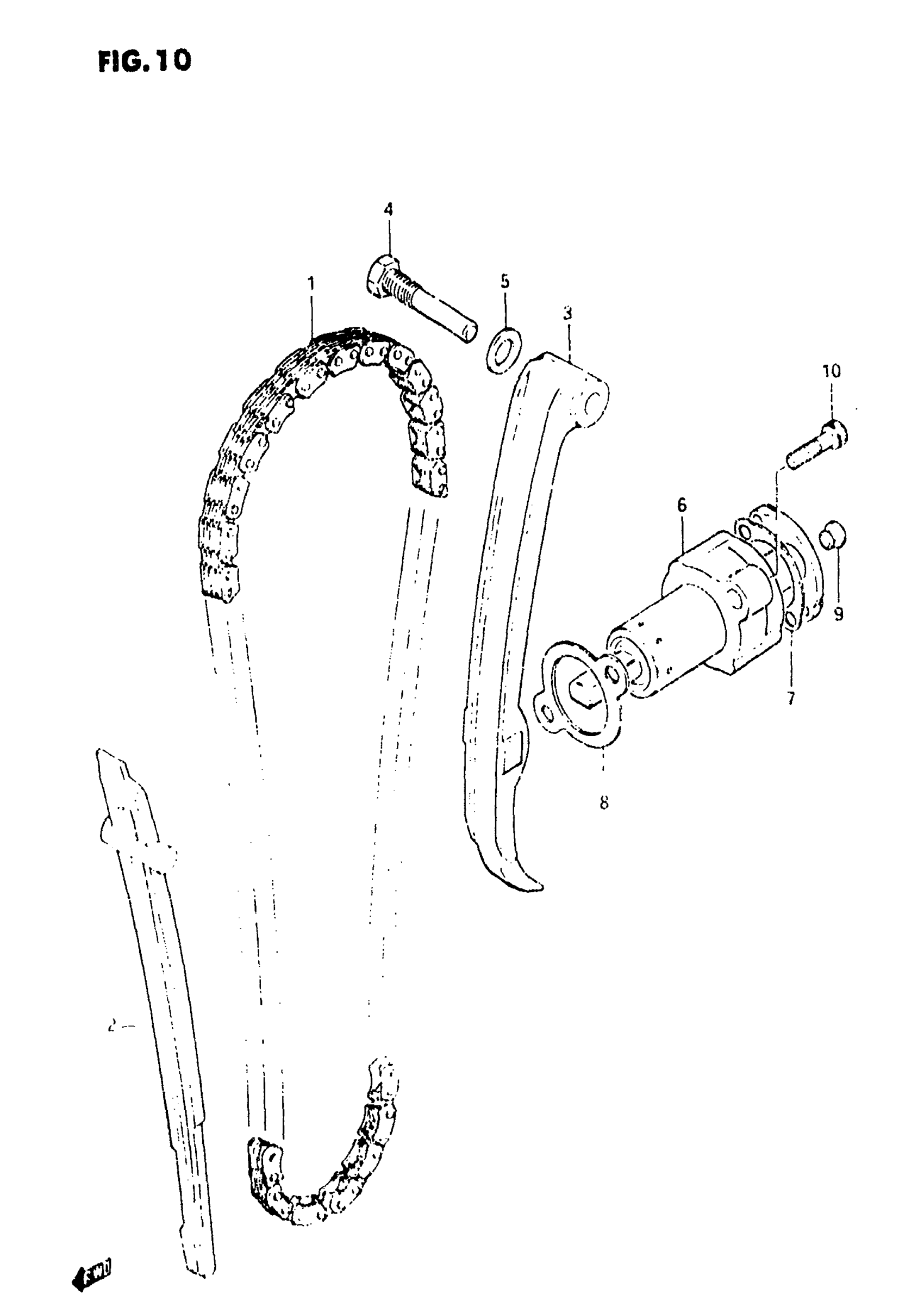

Suzuki SP250 (1983) CAM CHAIN Diagram
