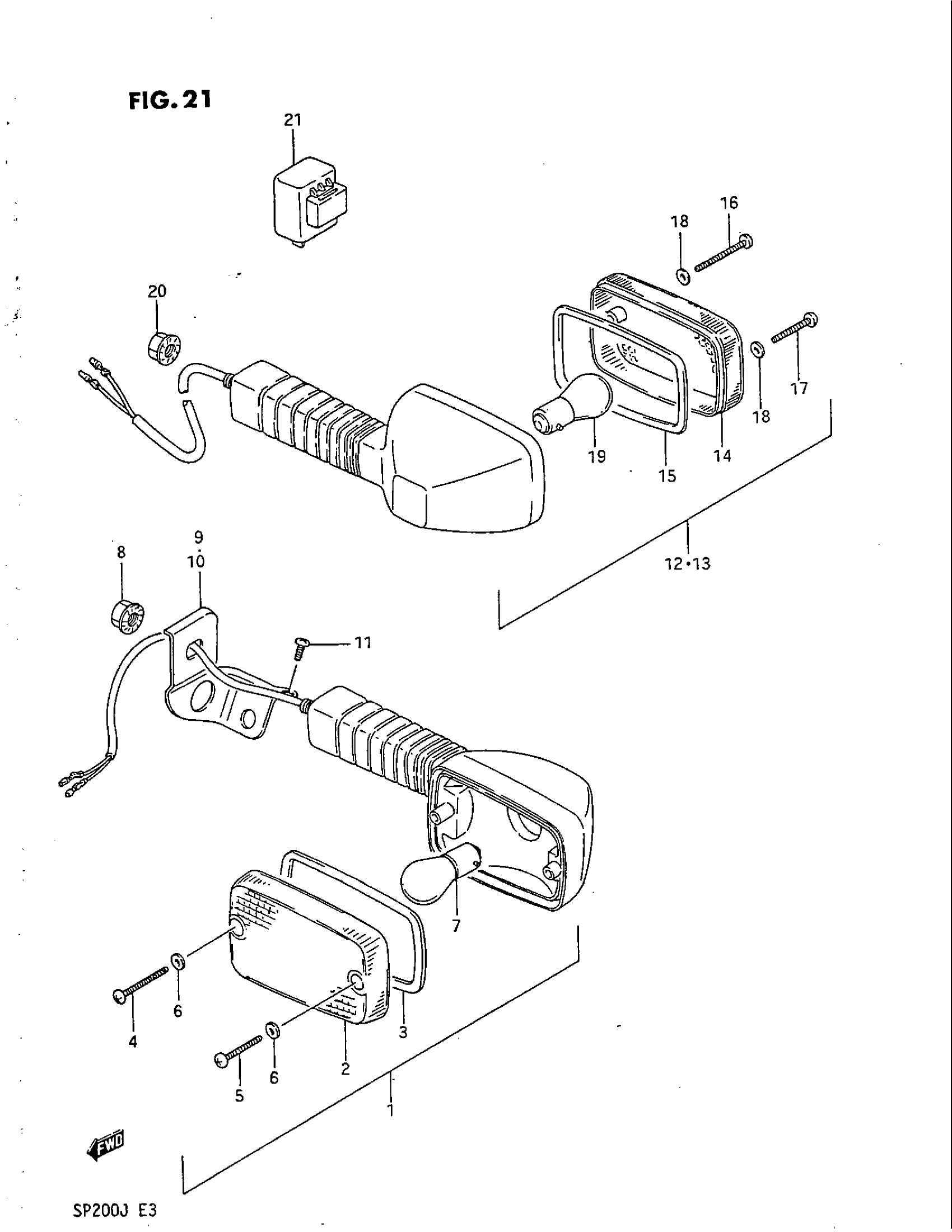

Suzuki SP200 (1988) TURN SIGNAL LAMP Diagram

#

Description
Price

1

LAMP ASSY, REAR TURN SIGNAL | Includes Item(s) 2 - 6 This part replaces 35601-14A53-999.

35603-44A31-999

Unavailable

2

LENS

35612-02181

Unavailable

3

GASKET

35613-48700

Unavailable

4

SCREW (4X38)

35623-02180

Unavailable

5

SCREW This part replaces 03211-04308.

03211-04306

$1.80

6

GASKET

35627-43010

$2.29

7

BULB (12V,23W)

09471-12006

$3.64

8

NUT This part replaces 08316-26105.

08316-2010B

$4.38

9

BRACKET, FRONT TURN RH This part replaces 35670-44A00.

35670-44A01

$12.75

10

BRACKET, FRONT TURN LH This part replaces 35680-44A00.

35680-44A01

$12.75

11

SCREW

02142-06108

$2.67

12

LAMP ASSY, REAR TURN SIGNAL | Includes Item(s) 13 - 19 This part replaces 35603-44A41.

35603-44A31-999

Unavailable

13

LAMP ASSY, REAR TURN SIGNAL

35603-44A31-999

Unavailable

14

LENS

35612-02181

Unavailable

15

GASKET

35613-48700

Unavailable

16

SCREW (4X38)

35623-02180

Unavailable

17

SCREW This part replaces 03211-04308.

03211-04306

$1.80

18

GASKET

35627-43010

$2.29

19

BULB (12V,23W)

09471-12006

$3.64

20

NUT This part replaces 08316-26105.

08316-2010B

$4.38

21

RELAY ASSY, TURNSIGNAL This part replaces 38610-31310.

38610-31X50

$90.45
