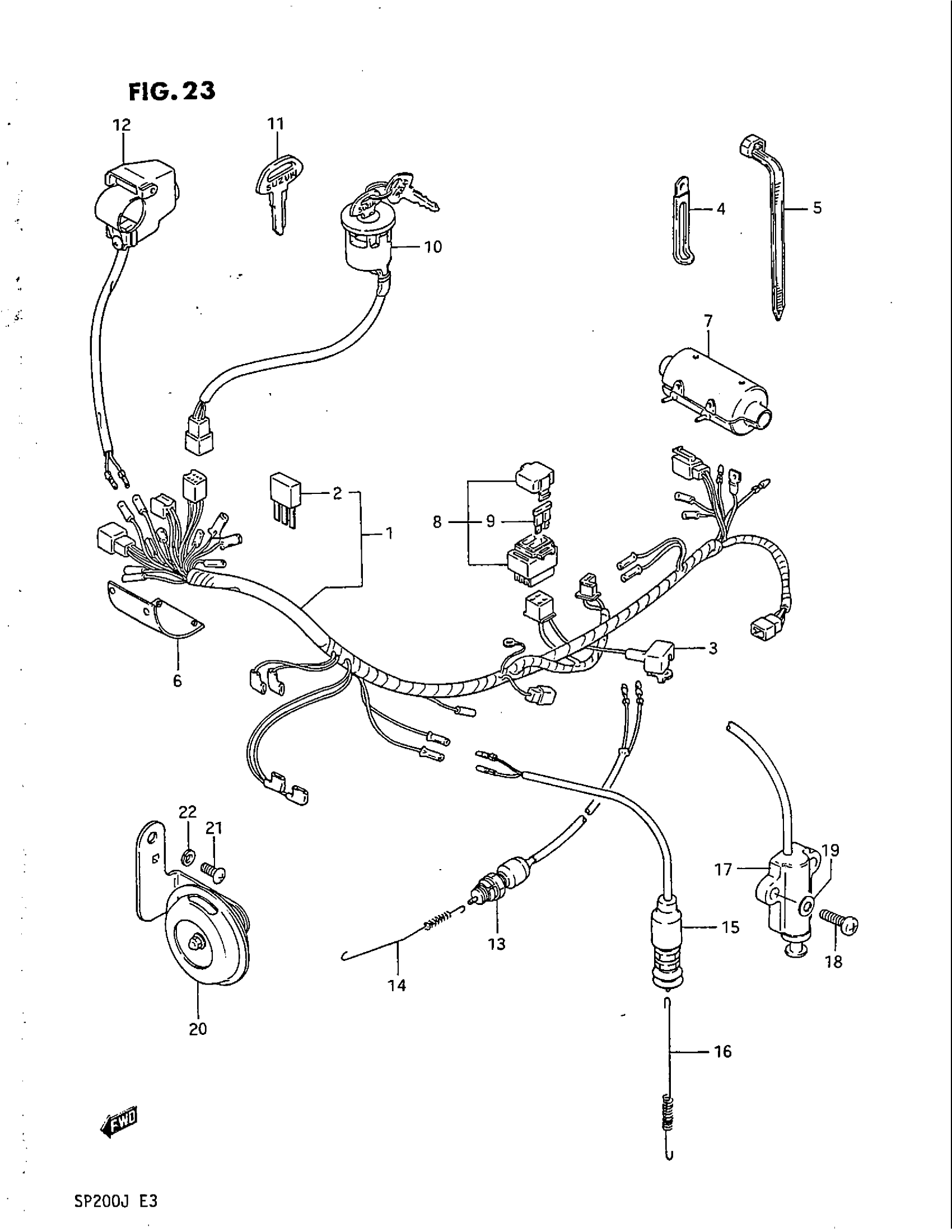

Suzuki SP200 (1988) WIRING HARNESS Diagram

#

Description
Price

1

HARNESS, WIRING | MODEL G

36610-44A50

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL H/J; Includes Item(s) 2 - 3 This part replaces 36610-44A70.

36610-44A71

Unavailable

2

.DIODE | MODEL H/J This part replaces 36611-38A00.

36611-38A10

$12.39

3

CAP, BATTERY PLUS This part replaces 33624-44A00.

33624-03D00

Unavailable

4

CLAMP This part replaces 09404-06401.

09404-06039

$1.73

4

CLAMP(L:80) This part replaces 09404-06415.

09404-06036

$1.76

5

CLAMP (L:125)

09407-14403

$2.24

5

CLAMP (L:165)

09407-18402

$2.21

5

CLAMP (L:235)

09407-25401

$4.21

6

COVER WIRING HARNESS This part replaces 36618-44A00.

36618-15D21

$21.28

7

BOOT, WIRING HARNESS

36618-30610

$9.68

8

FUSE ASSY | Includes Item(s) 9

36740-04701

$25.08

9

FUSE (15A)

09481-15101

$2.77

10

SWITCH ASSY,IGN | MODEL G This part replaces 37110-13A01.

37110-13A30

Unavailable

10

SWITCH ASSY,IGN | MODEL H/J This part replaces 37110-01A01.

37110-13A20

Unavailable

11

KEY, BLANK | OPT This part replaces 37145-02400.

37146-49300

$15.08

12

SWITCH ASSY, ENGINE STOP

37830-13A00

Unavailable

13

SWITCH ASSY, STOP LAMP

37740-04A10

$26.32

14

SPRING

09443-06064

$5.65

15

SW ASSY SIDE ST | MODEL G This part replaces 37840-49202.

37840-38301

Unavailable

16

SPRING | MODEL G

09443-06060

Unavailable

17

SWITCH ASSY,SID | MODEL H This part replaces 37840-44A00.

37840-44X52

$75.68

17

SWITCH ASSY,SID | MODEL J This part replaces 37840-44A10.

37840-44X52

$75.68

18

SCREW | MODEL H/J This part replaces 02112-06205.

02112-0620A

$1.45

19

.WASHER | MODEL H/J This part replaces 08322-21064.

08322-0106B

$2.24

20

HORN ASSY

38500-42A10

Unavailable

21

SCREW This part replaces 02112-06125.

02112-0612A

$1.43

22

LOCK WASHER This part replaces 08321-21064.

08321-0106A

$1.83
