1988 Suzuki SP200 Rear Combination Lamp Diagram

← All diagrams

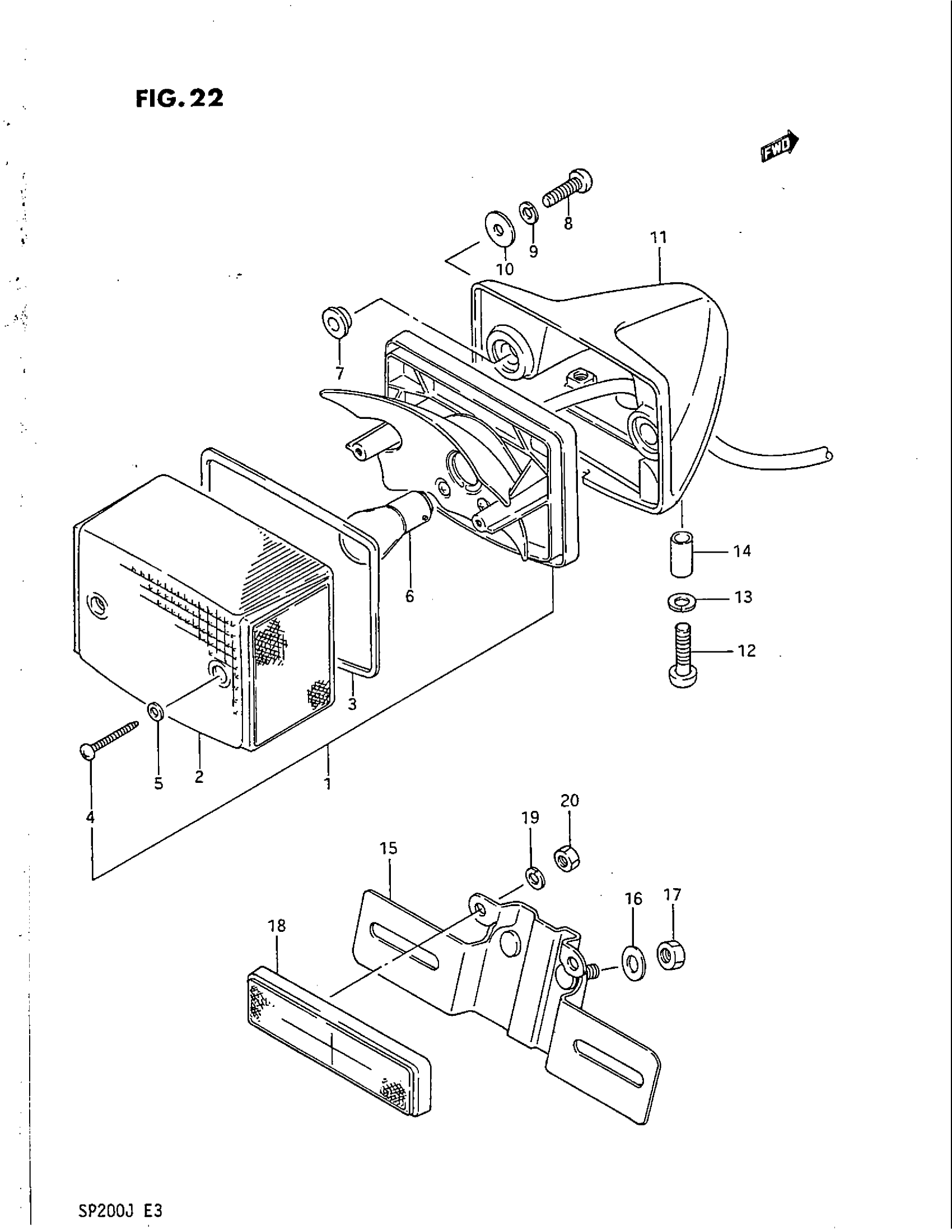

Find the part on the Rear Combination Lamp diagram for your 1988 Suzuki SP200, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1988 Suzuki SP200 Rear Combination Lamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LAMP ASSY,RR CO | Includes Item(s) 2 - 10 This part replaces 35720-44A40.

35710-44B10-999

1
Out of stock

2

LENS

35712-48510

1

$73.03

In stock

3

GASKET

35713-48510

1

$6.95

In stock

4

2

$2.25

In stock

5

GASKET

35627-43010

2

$2.65

In stock

6

BULB (12V,32/3CP)

09471-12084

1
Out of stock

7

SPACER

35766-01A00

2
Out of stock

8

SCREW This part replaces 02112-05205.

02112-0520B

2
Out of stock

9

LOCK WASHER This part replaces 08321-21055.

08321-0105A

2
Out of stock

10

2

$1.61

In stock

11

BRACKET UNIT

35730-44A30

1
Out of stock

12

SCREW This part replaces 02112-06256.

02112-0625A

3
Out of stock

13

3

$1.97

In stock

14

SPACER (6.4x9.2x12)

09180-06121

3

$2.17

In stock

15

BRACKET, LICENSE PLATE

35927-42A00

1
Out of stock

16

2

$2.05

In stock

17

NUT This part replaces 08310-11065.

08310-0006A

2
Out of stock

18

REFLEX REFLECTOR, REAR

35970-44A00

1
Out of stock

19

LOCK WASHER This part replaces 08321-21055.

08321-0105A

2
Out of stock

20

2

$1.97

In stock
