1983 Suzuki SP100 Rear Swinging ARM Diagram

← All diagrams

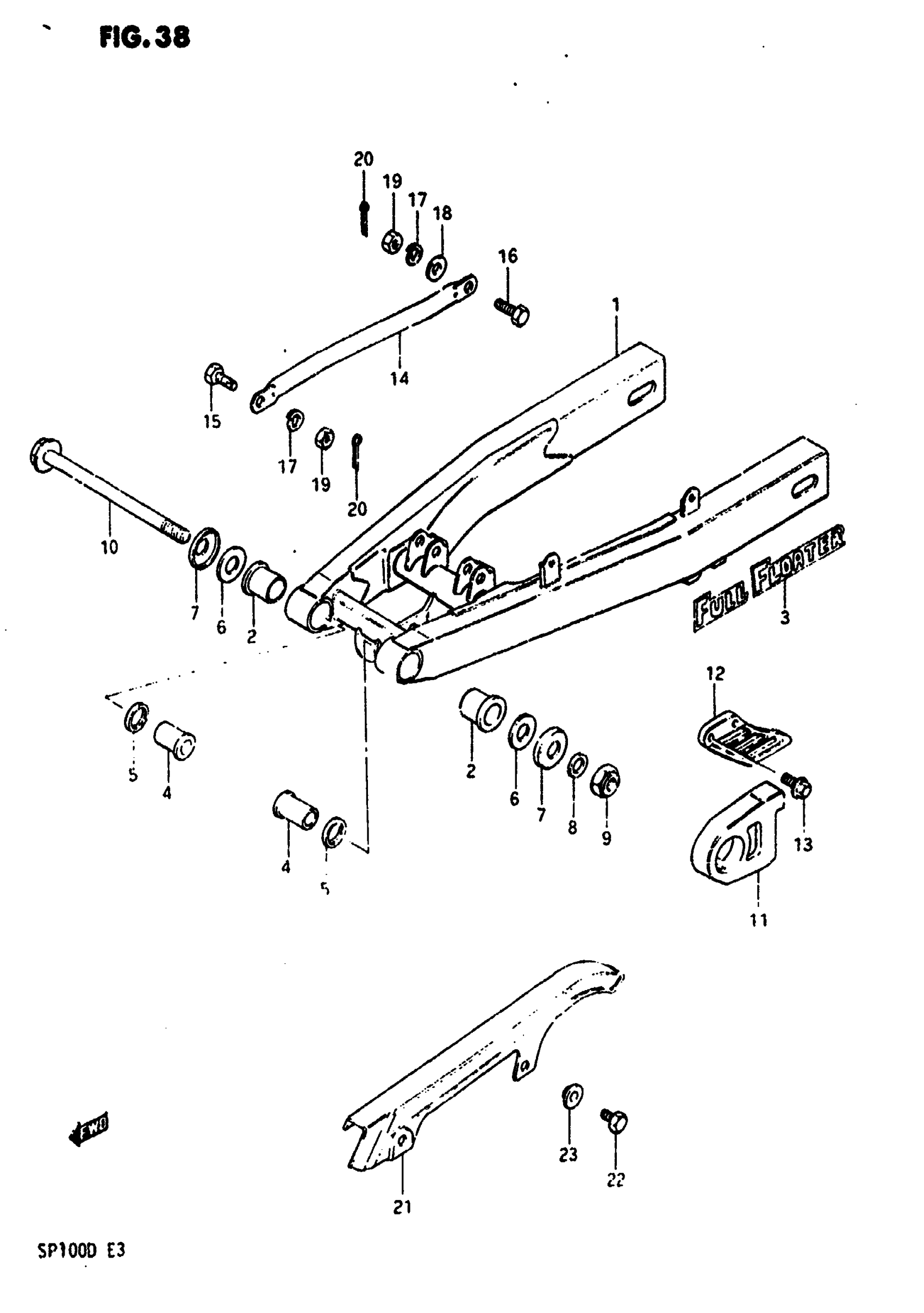

Find the part on the Rear Swinging ARM diagram for your 1983 Suzuki SP100, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1983 Suzuki SP100 Rear Swinging ARM Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

REAR SWINGING ARM (GOLD) | Includes Item(s) 2 - 3

61000-05260-08C

1
Out of stock

2

BUSH This part replaces 61261-05300.

61261-05301

2
Out of stock

3

EMBLEM

68381-03400-69L

2
Out of stock

4

SPACER

61251-05300

2
Out of stock

5

OIL SEAL

09286-20001

2
Out of stock

6

WASHER

08211-14341

2
Out of stock

7

COVER

61262-45002

2
Out of stock

8

WASHER This part replaces 08322-11148.

08322-01147

1
Out of stock

9

NUT This part replaces 08319-21148.

08319-2114A

1
Out of stock

10

SHAFT, PIVOT This part replaces 61211-05301.

61211-05302

1
Out of stock

11

BUFFER, CHAIN DEFENSE

61273-05251

1
Out of stock

12

GUIDE, CHAIN

61341-05260

1
Out of stock

13

BOLT This part replaces 01517-06168.

01550-06167

2
Out of stock

14

TORQUE LINK, REAR (SILVER) This part replaces 64311-48700-08C.

64311-48700-13L

1
Out of stock

15

BOLT, FRONT

09111-08015

1
Out of stock

16

BOLT, REAR

09111-08013

1
Out of stock

17

2

$2.28

In stock

18

WASHER This part replaces 08322-11088.

08322-01087

1
Out of stock

19

NUT

09140-08008

2
Out of stock

20

COTTER PIN This part replaces 04111-20208.

04111-2020A

2
Out of stock

21

CHAIN CASE (BLACK) This part replaces 61310-03400-291.

61310-03400

1
Out of stock

22

BOLT This part replaces 01107-06128.

01500-06127

2
Out of stock

23

WASHER

09169-06026

2
Out of stock
