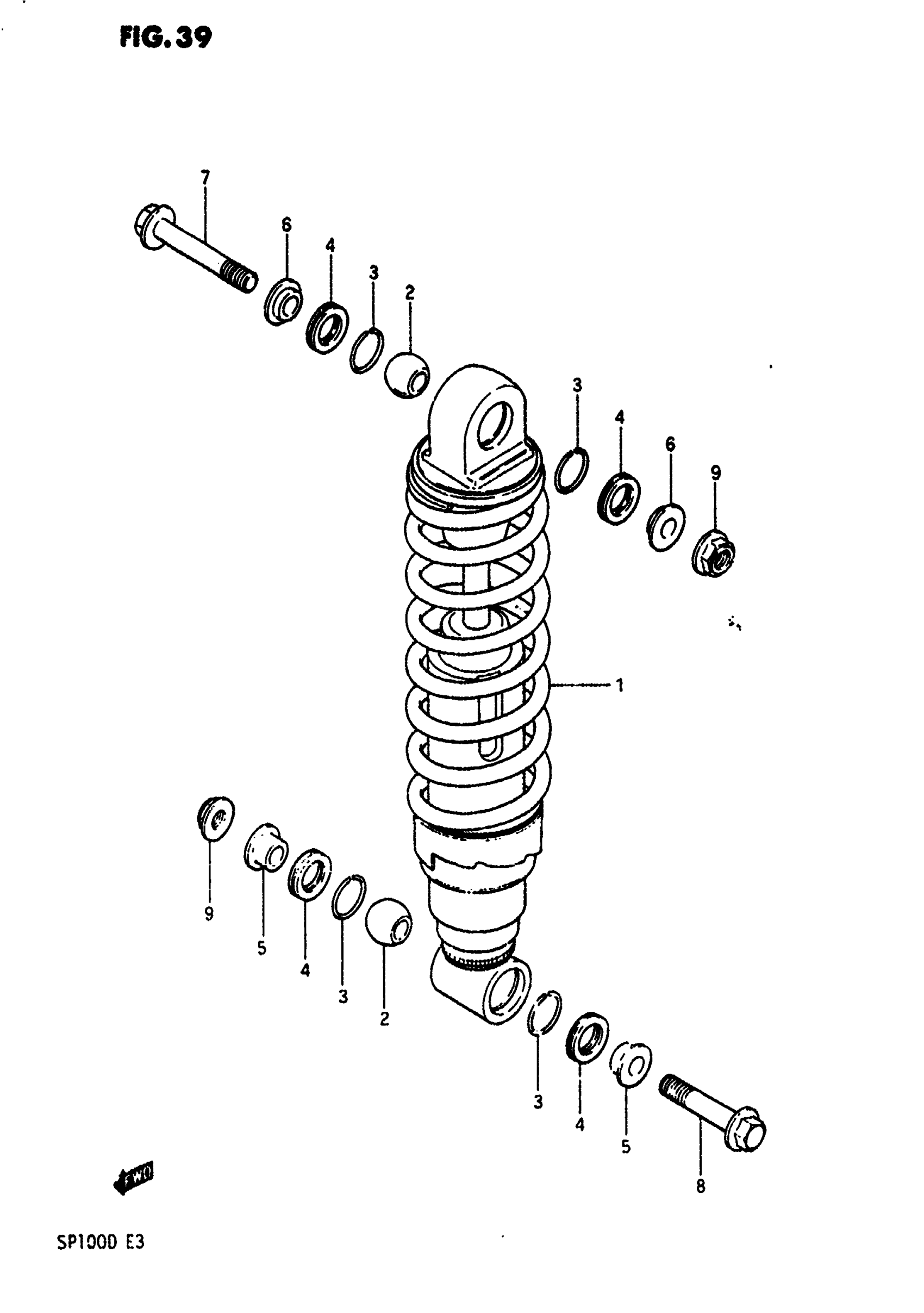

Suzuki SP100 (1983) SHOCK ABSORBER Diagram

#

Description

Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 6 This part replaces 62100-05230.

62100-05231

Unavailable

2

BEARING, REAR (10x24x14.5) This part replaces 62175-05220.

62175-00B00

$57.58

3

RING, STOPPER This part replaces 62277-20900.

62657-34A01

$2.06

4

DUST SEAL

62226-05220

Unavailable

5

COLLAR

62684-05220

Unavailable

6

COLLAR

62686-05220

Unavailable

7

BOLT, UPPER

09103-10058

Unavailable

8

BOLT, LOWER

09103-10045

$5.05

9

NUT This part replaces 08319-31108.

08319-31107

$2.73
