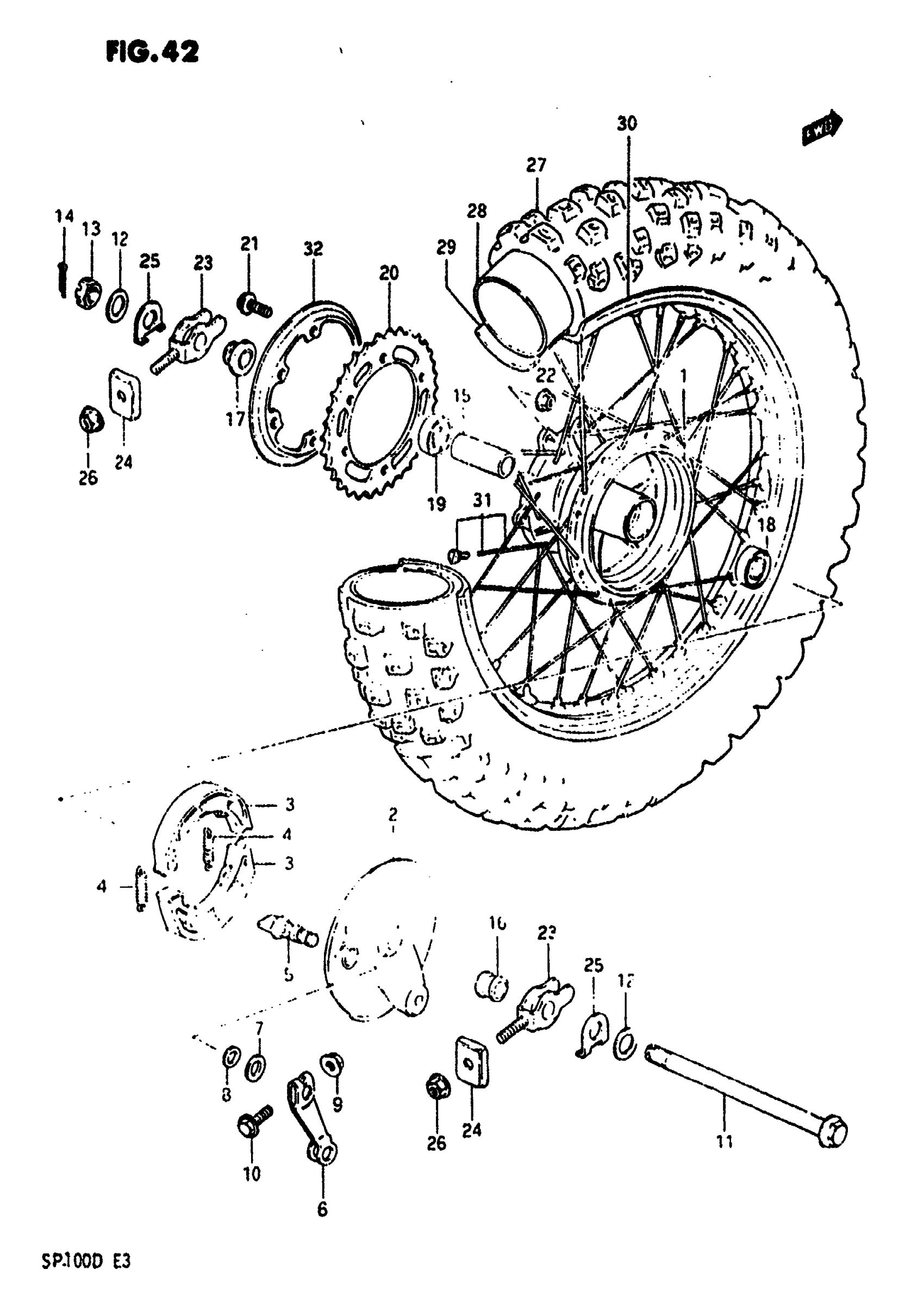

Suzuki SP100 (1983) REAR WHEEL Diagram

#

Description
Price

1

DRUM, REAR HUB

64110-48700

Unavailable

2

PANEL, REAR HUB (BLACK) This part replaces 64210-48700.

64210-48701

Unavailable

3

SHOE & SPRING S This part replaces 54410-43010.

54400-43880

$42.75

4

SPRING This part replaces 09443-07001.

09443-07025

$1.68

5

CAM, BRAKE This part replaces 54441-29303.

54441-29305

$22.58

6

LEVER, BRAKE CAM

64451-48000

$29.95

7

WASHER This part replaces 09160-14001.

09160-14055

$2.40

8

O RING (D:2.5,ID:13.8) This part replaces 09280-14003.

09280-14011

$4.30

9

NUT This part replaces 08316-16068.

08319-31067

$2.01

10

BOLT This part replaces 01517-06358.

01550-06357

$2.80

11

AXLE, REAR

64711-05210

Unavailable

12

WASHER This part replaces 08322-21148.

08322-01147

$1.92

13

NUT

09141-14001

$5.00

14

PIN This part replaces 04111-30308.

04111-3030A

$1.37

15

SPACER, HUB BEARING

09180-15062

Unavailable

16

SPACER,REAR AXL This part replaces 64751-48700.

64751-48701

Unavailable

17

SPACER, AXLE LH This part replaces 64750-48700.

64750-48701

$20.33

18

BEARING, RH

08143-62027

$14.44

19

BEARING This part replaces 08123-63027.

08123-6302B

$20.52

20

SPROCKET,REAR, This part replaces 64511-48720.

64511-48722

Unavailable

21

BOLT

09103-08107

$5.17

22

NUT This part replaces 08319-31088.

08319-3108A

$2.31

23

ADJUSTER, CHAIN

61410-05250

Unavailable

24

PLATE This part replaces 61421-26501.

61421-26502

$6.22

25

WASHER,CHAIN AD This part replaces 64712-05250.

64712-36A10

$4.37

26

NUT This part replaces 08319-31088.

08319-3108A

$2.31

27

TIRE, REAR (3.00x16) IRC

65100-05280

Unavailable

28

TUBE, INNER

55200-08011

Unavailable

29

PROTECTOR This part replaces 55261-08010.

65261-37300

Unavailable

30

RIM, WHEEL (160x16)

65311-05250

Unavailable

31

SPOKE ASSY, REAR

65320-05250

Unavailable

32

PLATE

64519-05210

Unavailable
