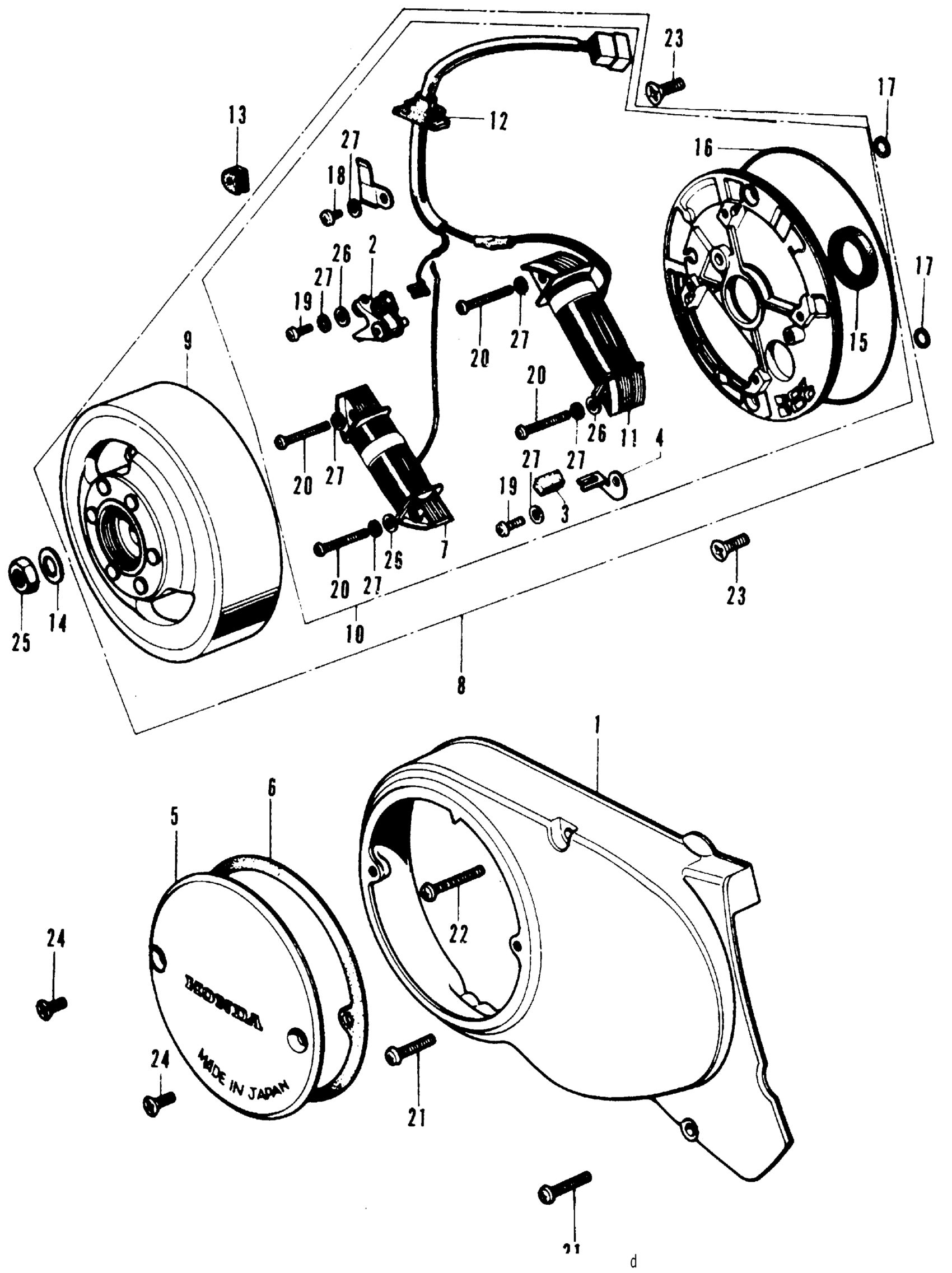

Honda SL70A MOTORCYCLE, JPN, VIN# SL70-1000001 SL70 LEFT CRANKCASE COVER + Diagram

#

Description
Price

NI

CONDENSER (MITSUBISHI)

30250-035-006

Unavailable

1

COVER, L. CRANKCASE This part replaces 11341-098-000.

11341-165-750

Unavailable

1

COVER, L. CRANKCASE This part replaces 11341-098-010.

11341-165-750

Unavailable

1

COVER, L. CRANKCASE

11341-165-750

Unavailable

2

POINTS (HITACHI)

30202-041-015

$26.27

3

FELT, OIL (HITACHI)

30205-041-005

$3.57

4

HOLDER, FELT (NOT AVAILABLE)

30206-118-671

Unavailable

5

COVER, POINTS This part replaces 30371-040-020.

30371-098-750

Unavailable

5

COVER, POINTS This part replaces 30371-098-730.

30371-098-750

Unavailable

5

COVER, POINTS

30371-098-750

Unavailable

5

COVER, POINTS This part replaces 30371-126-670.

30371-098-750

Unavailable

6

GASKET, POINTS COVER This part replaces 30374-040-010.

30374-040-020

$2.92

6

GASKET, POINTS COVER

30374-040-020

$2.92

6

GASKET, POINTS COVER This part replaces 30374-040-306.

30374-040-020

$2.92

7

COIL, PRIMARY (HITACHI)

30540-041-005

Unavailable

8

ALTERNATOR ASSY. (NOT AVAILABLE)

31100-118-671

Unavailable

9

FLYWHEEL (NOT AVAILABLE)

31121-118-671

Unavailable

10

STATOR ASSY. (NOT AVAILABLE)

31141-118-671

Unavailable

11

COIL, LIGHT (NOT AVAILABLE)

31631-118-671

Unavailable

12

GROMMET, WIRE

32971-035-000

$2.22

13

GROMMET, NEUTRAL SWITCH WIRE

32981-035-000

Unavailable

14

WASHER, MAGNET FIXING

90426-035-000

$2.35

15

OIL SEAL (18.9X30X5) This part replaces 91202-GB4-682.

91202-GK4-722

$5.71

15

OIL SEAL (18.9X30X5)

91202-GK4-722

$5.71

15

OIL SEAL (18.9X30X5) This part replaces 91202-035-000.

91202-GK4-722

$5.71

15

OIL SEAL (18.9X30X5) This part replaces 91202-035-003.

91202-GK4-722

$5.71

15

OIL SEAL (18.9X30X5) This part replaces 91202-035-005.

91202-GK4-722

$5.71

16

O-RING (107X2) (ARAI) This part replaces 91301-035-000.

91301-035-003

$6.56

16

O-RING (107X2)

91301-035-003

$6.56

17

O-RING (6X1.7)

91317-171-003

$2.80

17

O-RING (6X1.7) (ARAI) This part replaces 91317-703-000.

91317-171-003

$2.80

18

SCREW, PAN (4X6) This part replaces 93500-04005-0A.

93500-04006-0A

$0.75

18

SCREW, PAN (4X6) This part replaces 93500-04006.

93500-04006-0A

$0.75

18

SCREW, PAN (4X6)

93500-04006-0A

$0.75

18

SCREW, PAN (4X6) This part replaces 93500-04006-1A.

93500-04006-0A

$0.75

19

SCREW, PAN (4X10)

93500-04010-0A

$0.83

20

SCREW, PAN (4X25)

93500-04025-0A

$1.71

21

SCREW, PAN (6X20) This part replaces 93500-06020.

93500-06020-0A

$0.93

21

SCREW, PAN (6X20)

93500-06020-0A

$0.93

22

SCREW, PAN (6X35)

93500-06035-0A

$1.00

22

SCREW, PAN (6X35) This part replaces 93500-06036.

93500-06035-0A

$1.00

23

SCREW, FLAT (6X16) This part replaces 93600-06016.

93600-06016-0A

$0.90

23

SCREW, FLAT (6X16)

93600-06016-0A

$0.90

24

SCREW, OVAL (5X12)

93700-05012-0A

$0.71

25

NUT, HEX. (10MM)

94030-10000

$1.29

26

WASHER, PLAIN (4MM)

94101-04000

$0.90

27

WASHER, SPRING (4MM)

94111-04000

$0.97
