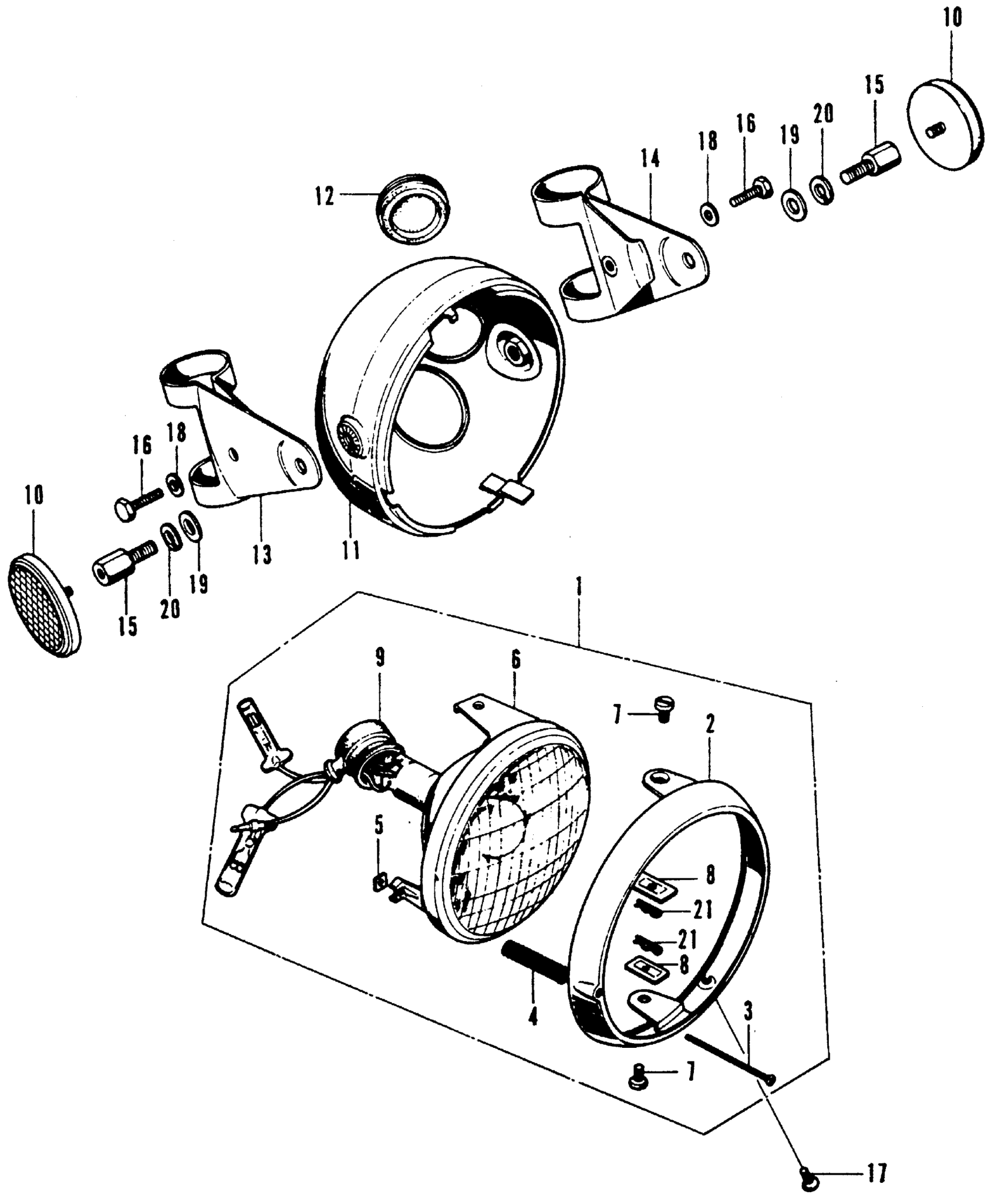

Honda SL70A MOTORCYCLE, JPN, VIN# SL70-1000001 SL70 HEADLIGHT + HEADLIGHT CASE Diagram

#

Description
Price

1

HEADLIGHT ASSY. (6V15/15W)

33100-111-671

Unavailable

2

RIM, HEADLIGHT (NOT AVAILABLE)

33101-111-671

Unavailable

3

SCREW, HEADLIGHT BEAM ADJ. (STANLEY)

33102-041-003

$2.25

3

SCREW, HEADLIGHT BEAM ADJ. (STANLEY) This part replaces 33102-041-670.

33102-041-003

$2.25

4

SPRING, HEADLIGHT SETTING

33107-030-003

$2.54

5

NUT, BEAM ADJ.

33117-041-003

$1.95

6

HEADLIGHT UNIT

33120-111-671

Unavailable

7

SCREW, UNIT HOLDER

33125-292-670

Unavailable

8

NUT, UNIT HOLDER

33128-292-670

$2.94

9

COVER, RUBBER

33130-111-671

Unavailable

10

REFLECTOR, FR. REFLEX This part replaces 33741-045-671.

33741-315-000

$25.26

10

REFLECTOR, FR. REFLEX This part replaces 33741-286-670.

33741-315-000

$25.26

10

REFLECTOR, FR. REFLEX

33741-315-000

$25.26

11

CASE, HEADLIGHT *Y23* (SUMMER YELLOW) (NOT AVAILABLE)

61301-111-670CC

Unavailable

11

CASE, HEADLIGHT *PB52* (AQUARIUS BLUE) (NOT AVAILABLE)

61301-111-670DY

Unavailable

11

CASE, HEADLIGHT *R25* (LIGHT RUBY RED) (NOT AVAILABLE)

61301-111-670HX

Unavailable

12

GROMMET, HEADLIGHT CASE (NOT AVAILABLE)

61303-118-670

Unavailable

13

STAY, R. HEADLIGHT CASE (NOT AVAILABLE)

61305-118-671

Unavailable

14

STAY, L. HEADLIGHT CASE

61306-118-671

Unavailable

15

BOLT, HEADLIGHT CASE SETTING STAY

61307-118-670

Unavailable

16

BOLT, HEX. (6X16) This part replaces 93000-06016-02.

93101-06016-0B

Unavailable

17

SCREW, OVAL (5X8) (SOURCE: VINTAGE PARTS INC.)

93700-05008-0B

Unavailable

18

WASHER, PLAIN (6MM)

94101-06200

$1.49

19

WASHER, PLAIN (8MM)

94101-08200

$1.49

20

WASHER, SPRING (8MM)

94111-08000

$1.49

21

PIN, LOCK (5MM)

94251-05000

$1.49
