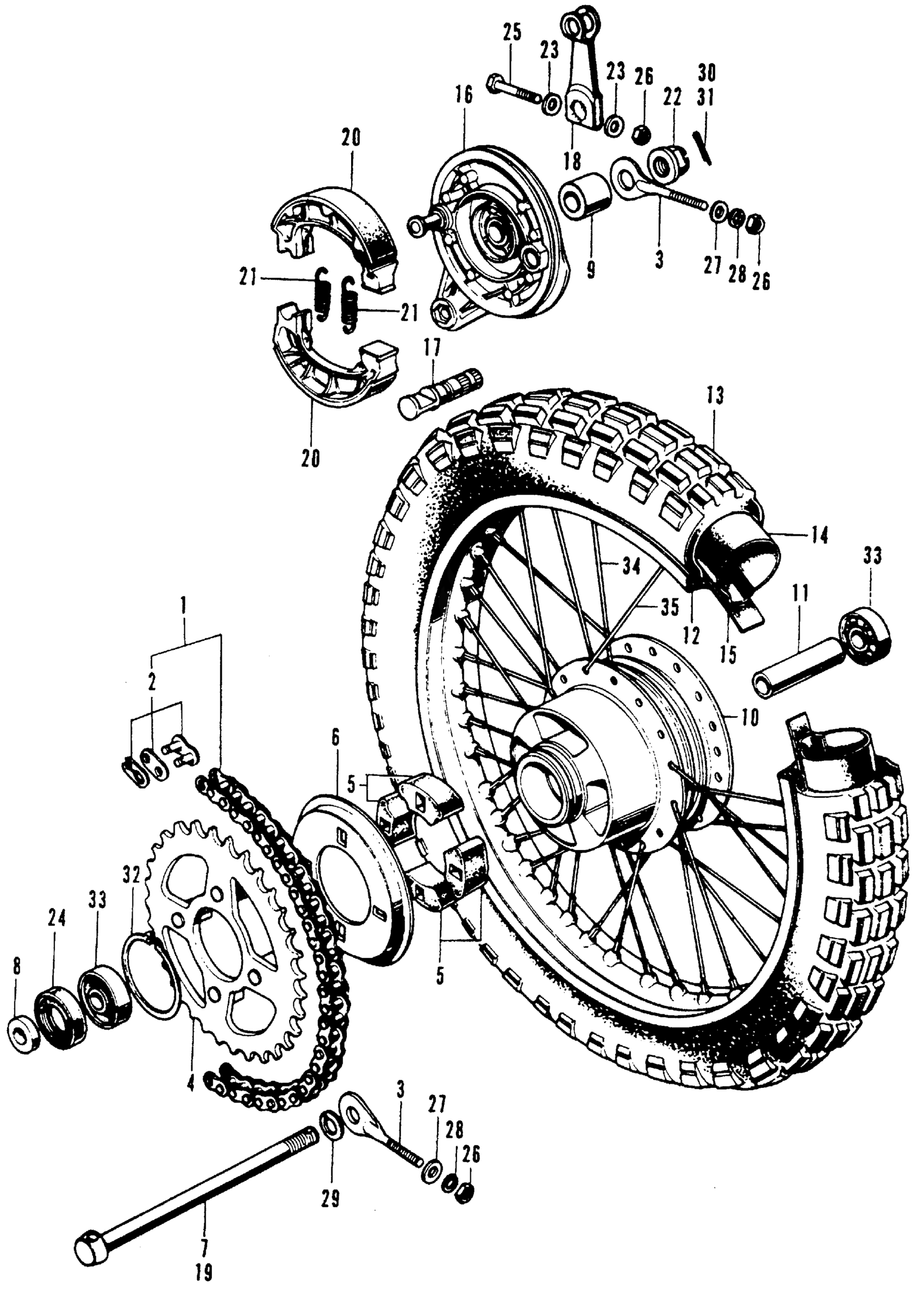

Honda SL70A MOTORCYCLE, JPN, VIN# SL70-1000001 REAR WHEEL Diagram

#

Description
Price

NI

SHOE SET, BRAKE (JB) This part replaces 06450-GAG-003.

06450-178-932

$24.89

NI

SHOE SET, BRAKE (JB) This part replaces 06450-001-405.

06450-178-932

$24.89

NI

SHOE SET, BRAKE (JB)

06450-178-932

$24.89

NI

SHOE SET, BRAKE (JB) This part replaces 451A0-001-670.

06450-178-932

$24.89

1

CHAIN, DRIVE (92L) This part replaces 40530-092-005.

405W3-179-505

Unavailable

1

CHAIN, DRIVE (92L) This part replaces 40530-118-005.

405W3-179-505

Unavailable

1

CHAIN, DRIVE (92L)

405W3-179-505

Unavailable

1

CHAIN, DRIVE (92L) This part replaces 40530-092-003.

405W3-179-505

Unavailable

1

CHAIN, DRIVE (92L) This part replaces 40530-092-015.

405W3-179-505

Unavailable

2

MASTER LINK (DAIDO) This part replaces 40531-035-005.

40531-098-003

$3.74

2

MASTER LINK (DAIDO) This part replaces 40531-098-005.

40531-098-003

$3.74

2

MASTER LINK (DAIDO)

40531-098-003

$3.74

2

MASTER LINK (DAIDO) This part replaces 40531-150-005.

40531-098-003

$3.74

3

ADJUSTER S, R. CHAIN This part replaces 40543-063-000.

95014-10010

$4.53

3

ADJUSTER S, R. CHAIN

95014-10010

$4.53

4

SPROCKET, FINAL DRIVEN (44T) This part replaces 41201-118-000.

41201-151-000

Unavailable

4

SPROCKET, FINAL DRIVEN (44T)

41201-151-000

Unavailable

5

DAMPER, RR. WHEEL

41241-051-000

$7.31

6

COVER, RR. WHEEL DAMPER

41245-051-000

$4.79

7

AXLE, RR. WHEEL (NOT AVAILABLE)

42301-051-020

Unavailable

8

COLLAR, RR. WHEEL SIDE

42304-098-000

$6.14

9

COLLAR, RR. BRAKE PANEL SIDE

42313-051-000

Unavailable

10

HUB, RR. WHEEL (NOT AVAILABLE)

42601-118-010

Unavailable

11

COLLAR, RR. AXLE DISTANCE

42620-051-000

Unavailable

12

RIM, RR. WHEEL (1.60X14) (DAIDO) This part replaces 42701-118-013.

42701-152-712

Unavailable

12

RIM, RR. WHEEL (1.60X14) (DAIDO) This part replaces 42701-152-711.

42701-152-712

Unavailable

13

TIRE, RR. (2.75-14) (4PR) (BS) (NOT AVAILABLE)

42711-118-003

Unavailable

14

TUBE, TIRE (3.00-14) (INOUE) This part replaces 0Y400-12801.

42712-116-672

Unavailable

14

TUBE, TIRE (3.00-14) (INOUE) This part replaces 08400-12800.

42712-116-672

Unavailable

14

TUBE, TIRE (3.00-14) (INOUE) This part replaces 08400-12801.

42712-116-672

Unavailable

14

TUBE, TIRE (3.00-14) (INOUE) This part replaces 42712-GC1-004.

42712-116-672

Unavailable

14

TUBE, TIRE (3.00-14) (INOUE)

42712-116-672

Unavailable

14

TUBE, TIRE (3.00-14) (INOUE) This part replaces 42712-118-003.

42712-116-672

Unavailable

14

TUBE, TIRE (3.00-14) (INOUE) This part replaces 42712-121-692.

42712-116-672

Unavailable

14

TUBE, TIRE (3.00-14) (INOUE) This part replaces 42712-128-003.

42712-116-672

Unavailable

14

TUBE, TIRE (3.00-14) (INOUE) This part replaces 42712-128-006.

42712-116-672

Unavailable

14

TUBE, TIRE (3.00-14) (INOUE) This part replaces 42712-169-005.

42712-116-672

Unavailable

15

FLAP, TIRE (1.60-14) (BS)

42713-GC4-003

$6.69

15

FLAP, TIRE (1.60-14) (BS) This part replaces 42713-118-003.

42713-GC4-003

$6.69

16

PANEL, RR. BRAKE (NOT AVAILABLE) This part replaces 43100-118-000.

43100-137-670

Unavailable

16

PANEL, RR. BRAKE (NOT AVAILABLE)

43100-137-670

Unavailable

17

CAM, RR. BRAKE

43141-098-000

Unavailable

18

ARM, RR. BRAKE

43410-098-000

Unavailable

20

SHOE, BRAKE (SEE KIT P/N--END OF BLOCK) (N/A: USE P/N 451A0-001-670)

45120-001-010

Unavailable

21

SPRING, BRAKE SHOE

45133-028-000

$2.03

22

NUT, AXLE (12MM) This part replaces 90305-051-000.

90305-169-000

$6.28

22

NUT, AXLE (12MM)

90305-169-000

$6.28

23

WASHER, RR. BRAKE ARM

90525-001-000

$1.95

24

OIL SEAL (26X37X6) This part replaces 90753-051-000.

90753-051-003

$7.66

24

OIL SEAL (26X37X6)

90753-051-003

$7.66

24

OIL SEAL (26X37X6) This part replaces 90753-051-005.

90753-051-003

$7.66

25

BOLT, HEX. (6X35) This part replaces 92000-06036.

92201-06035-0A

$1.75

25

BOLT, HEX. (6X35) This part replaces 92200-06035.

92201-06035-0A

$1.75

25

BOLT, HEX. (6X36)

92201-06035-0A

$1.75

26

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

26

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

26

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

26

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

26

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

26

NUT, HEX. (6MM)

94001-06200-0S

$1.49

26

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

27

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

27

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

27

WASHER, PLAIN (6MM)

94101-06800

$1.49

28

WASHER, SPRING (6MM)

94111-06000

$1.49

29

WASHER, SPRING (12MM)

94111-12000

$1.49

30

PIN, COTTER (2.5X22)

94201-25220

$1.49

32

CIRCLIP (OUTER) (50MM) (SOURCE: VINTAGE PARTS INC.)

94510-50000

Unavailable

33

BEARING, RADIAL BALL (6301U) This part replaces 96140-63010.

96140-63010-10

$14.84

33

BEARING, RADIAL BALL (6301U)

96140-63010-10

$14.84

34

SPOKE B (10X124.5)

97283-42089-10

$3.57

35

SPOKE B (10X124)

97600-42088-10

$3.57
