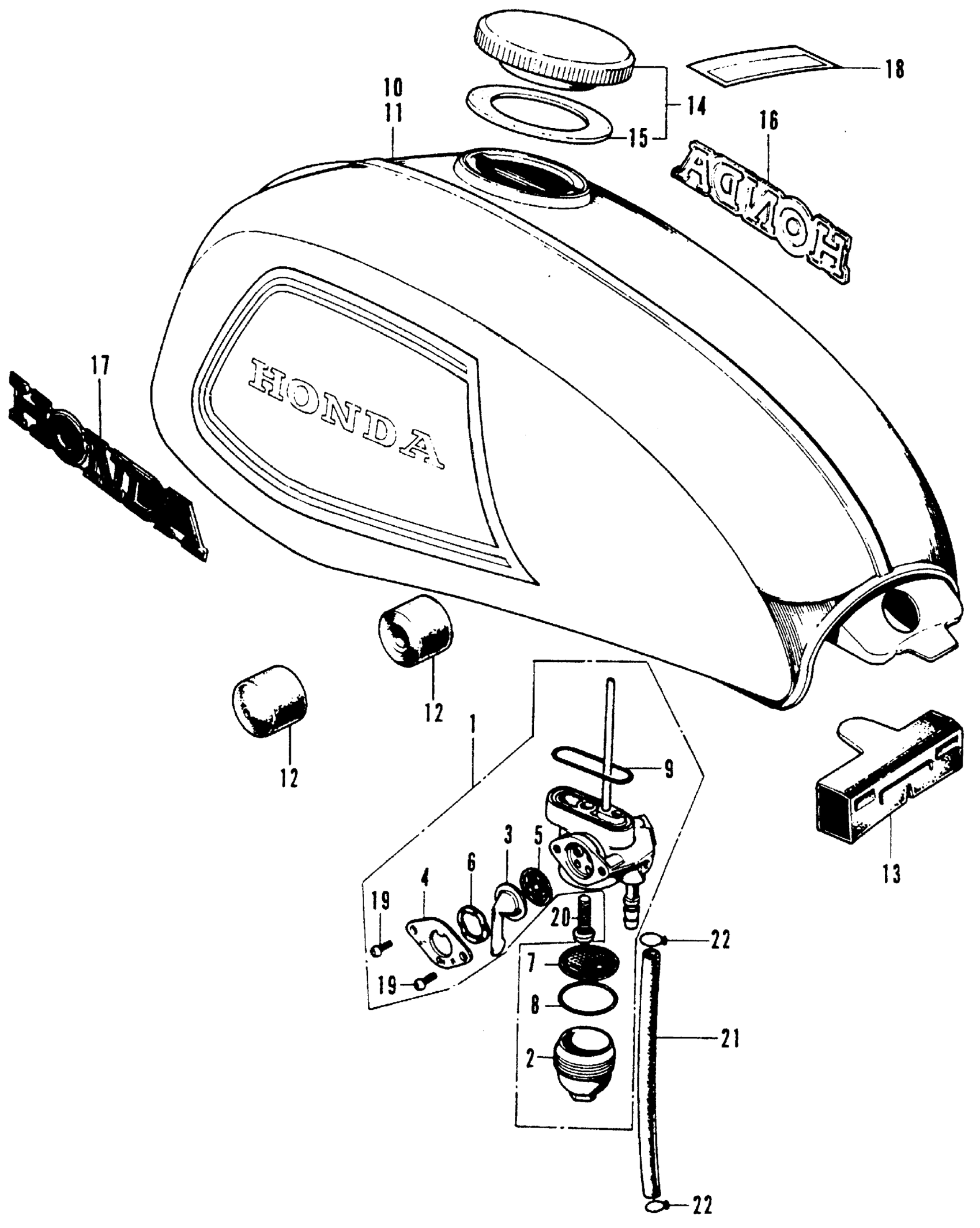

Honda SL70A MOTORCYCLE, JPN, VIN# SL70-1000001 FUEL TANK Diagram

#

Description
Price

1

PETCOCK ASSY. This part replaces 16950-028-010.

16950-070-700

$41.57

1

PETCOCK ASSY. This part replaces 16950-028-015.

16950-070-700

$41.57

1

PETCOCK ASSY.

16950-070-700

$41.57

2

CUP, FUEL STRAINER

16952-028-000

Unavailable

3

LEVER, PETCOCK

16953-028-004

Unavailable

4

PLATE, PETCOCK LEVER SETTING

16954-028-000

Unavailable

5

GASKET, VALVE This part replaces 16955-028-004.

16957-ZE1-812

$3.08

5

GASKET, VALVE

16957-ZE1-812

$3.08

6

SPRING, PETCOCK LEVER This part replaces 16956-011-000.

16956-ZE1-811

$3.41

6

SPRING, PETCOCK LEVER This part replaces 16956-011-010.

16956-ZE1-811

$3.41

6

SPRING, PETCOCK LEVER This part replaces 16956-028-004.

16956-ZE1-811

$3.41

6

SPRING, PETCOCK LEVER This part replaces 16964-720-005.

16956-ZE1-811

$3.41

7

SCREEN, FUEL STRAINER

16957-028-000

$16.22

8

GASKET SET, PETCOCK (CONTAINS 1 LARGE & 1 SMALL. USE AS NEEDED)

16080-898-631

$24.34

8

O-RING (2.4X18.6) This part replaces 16955-283-000.

16075-GHB-B00

$4.67

8

O-RING (2.4X18.6) This part replaces 16958-011-000.

16075-GHB-B00

$4.67

8

O-RING (2.4X18.6) This part replaces 16958-028-000.

16075-GHB-B00

$4.67

9

GASKET, PETCOCK BODY

16997-273-006

$6.74

10

TANK, FUEL *PB52/NH0* (AQUARIUS BLUE & WHITE) (NOT AVAILABLE)

17500-118-000EL

Unavailable

10

TANK, FUEL *Y23/NH1* (SUMMER YELLOW/BLACK) (NOT AVAILABLE)

17500-118-000EN

Unavailable

10

TANK, FUEL *R25/NH0* (LIGHT RUBY RED AND WHITE) (NOT AVAILABLE)

17500-118-000JM

Unavailable

12

RUBBER, FR. FUEL TANK

17611-303-000

$7.63

13

RUBBER, RR. FUEL TANK

17613-051-010

$9.78

14

CAP, FUEL FILLER This part replaces 17620-292-020.

17620-402-020

$17.03

14

CAP, FUEL FILLER This part replaces 17620-317-000.

17620-402-020

$17.03

14

CAP, FUEL FILLER This part replaces 17620-329-000.

17620-402-020

$17.03

14

CAP, FUEL FILLER This part replaces 17620-329-010.

17620-402-020

$17.03

14

CAP, FUEL FILLER This part replaces 17620-402-000.

17620-402-020

$17.03

14

CAP, FUEL FILLER This part replaces 17620-402-010.

17620-402-020

$17.03

15

GASKET (39X58X3) This part replaces 17631-259-000.

17631-ZE1-000

$2.85

15

GASKET (39X58X3) This part replaces 17631-329-000.

17631-ZE1-000

$2.85

15

GASKET (39X58X3) This part replaces 17631-329-003.

17631-ZE1-000

$2.85

16

EMBLEM, R. FUEL TANK (NOT AVAILABLE) | Use from Frame SN 1038657

87122-118-000

Unavailable

17

EMBLEM, L. FUEL TANK (NOT AVAILABLE) | Use from Frame SN 1038657

87123-118-000

Unavailable

18

LABEL, DRIVE CAUTION *NH0* (CHAMPIONSHIP WHITE) | Use from Frame SN 1053883

87560-323-670A

$3.00

18

LABEL, DRIVE CAUTION *NH1* (BLACK) | Use from Frame SN 1053883 This part replaces 87560-323-670B.

87560-323-670ZA

$2.84

18

LABEL, DRIVE CAUTION *NH1* (BLACK) | Use from Frame SN 1053883

87560-323-670ZA

$2.84

19

SCREW, PAN (3X6)

93500-03006-0A

$1.49

20

SCREW, PAN (6X16) This part replaces 93500-06016.

93500-06016-0A

$1.49

20

SCREW, PAN (6X16)

93500-06016-0A

$1.49

21

BULK HOSE, FUEL (4.5X3000) (4.5X130)

95001-45003-60M

$36.67

22

CLIP, TUBE (B8)

95002-02080

$1.80
