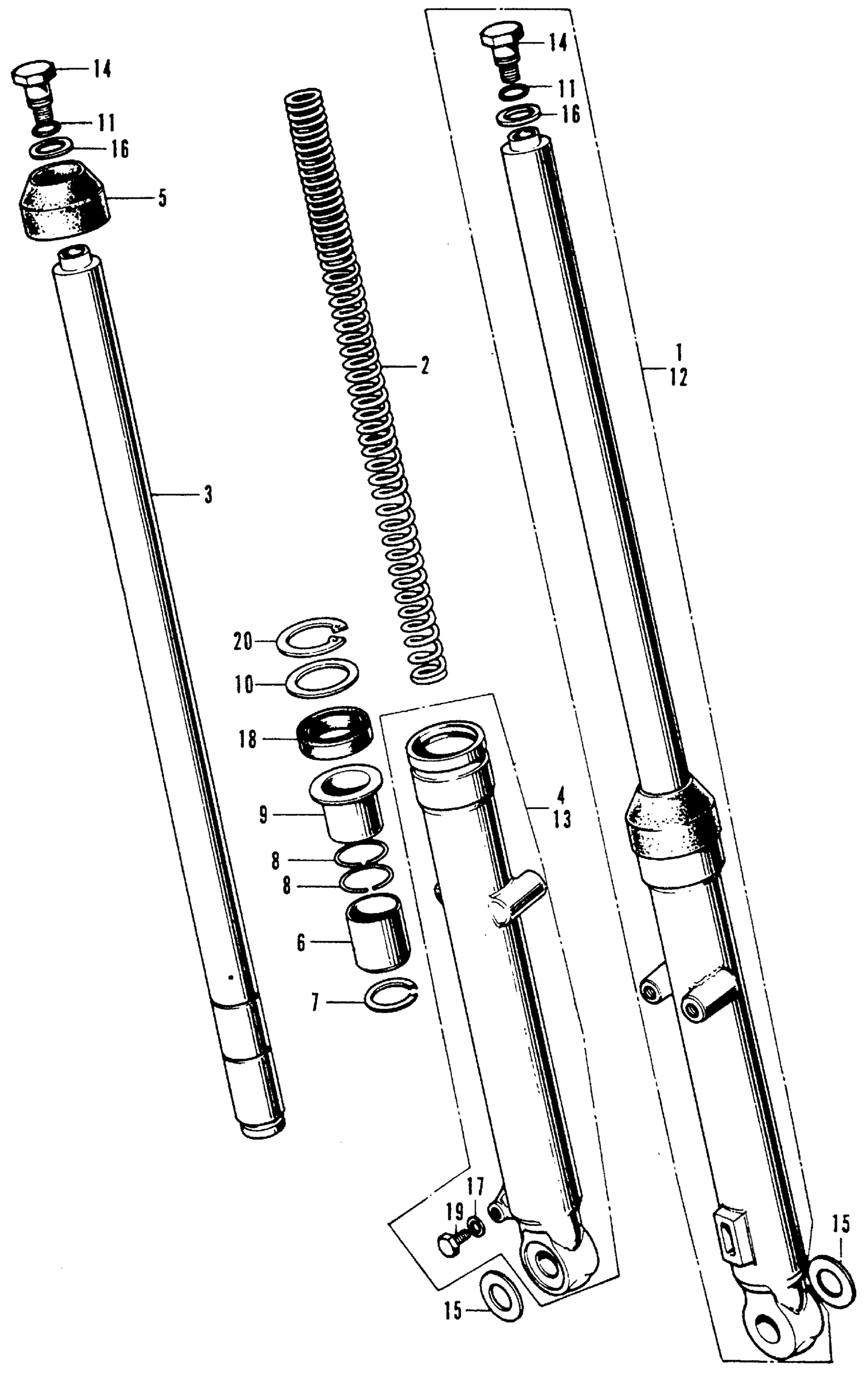

Honda SL70A MOTORCYCLE, JPN, VIN# SL70-1000001 FRONT FORK Diagram

#

Description
Price

1

FORK ASSY., R. FR. *A26* (POLISHING) (NOT AVAILABLE)

51400-116-671ZC

Unavailable

1

FORK ASSY., R. FR. *A26* (POLISHING) (NOT AVAILABLE) This part replaces 51400-118-010.

51400-116-671ZC

Unavailable

2

SPRING, FR. FORK This part replaces 51401-118-000.

51401-118-003

Unavailable

3

PIPE, FR. FORK (SHOWA) This part replaces 51410-116-671.

51410-152-003

Unavailable

3

PIPE, FR. FORK (SHOWA) This part replaces 51410-118-000.

51410-152-003

Unavailable

3

PIPE, FR. FORK (SHOWA)

51410-152-003

Unavailable

4

CASE, R. FR. FORK (LOWER) *A26* (POLISHING) (NOT AVAILABLE)

51420-116-671ZC

Unavailable

4

CASE, R. FR. FORK (LOWER) *A26* (POLISHING) (NOT AVAILABLE) This part replaces 51420-118-010.

51420-116-671ZC

Unavailable

5

DUST SEAL, FR. FORK (ARAI) This part replaces 51425-118-013.

51425-118-023

$11.06

5

DUST SEAL, FR. FORK (ARAI)

51425-118-023

$11.06

6

PISTON, FORK (27MM) This part replaces 51442-229-000.

94603-27002

Unavailable

6

PISTON, FORK (27MM)

94603-27002

Unavailable

7

RING B, SNAP (27MM) (NOT AVAILABLE) This part replaces 51445-028-000.

94580-27000

Unavailable

8

RING A, SNAP (27MM) This part replaces 51446-028-000.

94570-27000

Unavailable

8

RING A, SNAP (27MM)

94570-27000

Unavailable

9

GUIDE, FORK PIPE (27MM) This part replaces 51451-118-000.

94602-27101

Unavailable

9

GUIDE, FORK PIPE (27MM)

94602-27101

Unavailable

10

RING, BACK-UP

51452-118-000

Unavailable

11

O-RING (8.4X2.4) This part replaces 51493-273-000.

94608-10000

$1.49

11

O-RING (8.4X2.4)

94608-10000

$1.49

12

FORK ASSY., L. FR. *A26* (POLISHING) (NOT AVAILABLE)

51500-116-671ZC

Unavailable

12

FORK ASSY., L. FR. *A26* (POLISHING) (NOT AVAILABLE) This part replaces 51500-118-010.

51500-116-671ZC

Unavailable

13

CASE, L. FR. FORK *A26* (POLISHING) (NOT AVAILABLE)

51520-116-671ZC

Unavailable

13

CASE, L. FR. FORK *A26* (POLISHING) (NOT AVAILABLE) This part replaces 51520-118-010.

51520-116-671ZC

Unavailable

14

BOLT, FORK A This part replaces 90123-051-000.

94605-10101

$5.21

14

BOLT, FORK A

94605-10101

$5.21

15

WASHER (12.5MM)

90528-229-000

$2.02

16

WASHER, FORK BOLT (13MM) This part replaces 90537-051-000.

94606-13001

$1.49

16

WASHER, FORK BOLT (13MM) This part replaces 94606-13000.

94606-13001

$1.49

16

WASHER, FORK BOLT (13MM)

94606-13001

$1.49

17

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.46

18

OIL SEAL, FR. FORK This part replaces 90756-118-003.

90756-149-841

$14.86

18

OIL SEAL, FR. FORK

90756-149-841

$14.86

19

BOLT, HEX. (6X8) This part replaces 92000-06008.

92101-06008-0A

$1.49

19

BOLT, HEX. (6X8) This part replaces 92000-06008-0A.

92101-06008-0A

$1.49

19

BOLT, HEX. (6X8)

92101-06008-0A

$1.49

20

CIRCLIP (INNER) (40MM) (NOT AVAILABLE)

94521-40000

Unavailable
