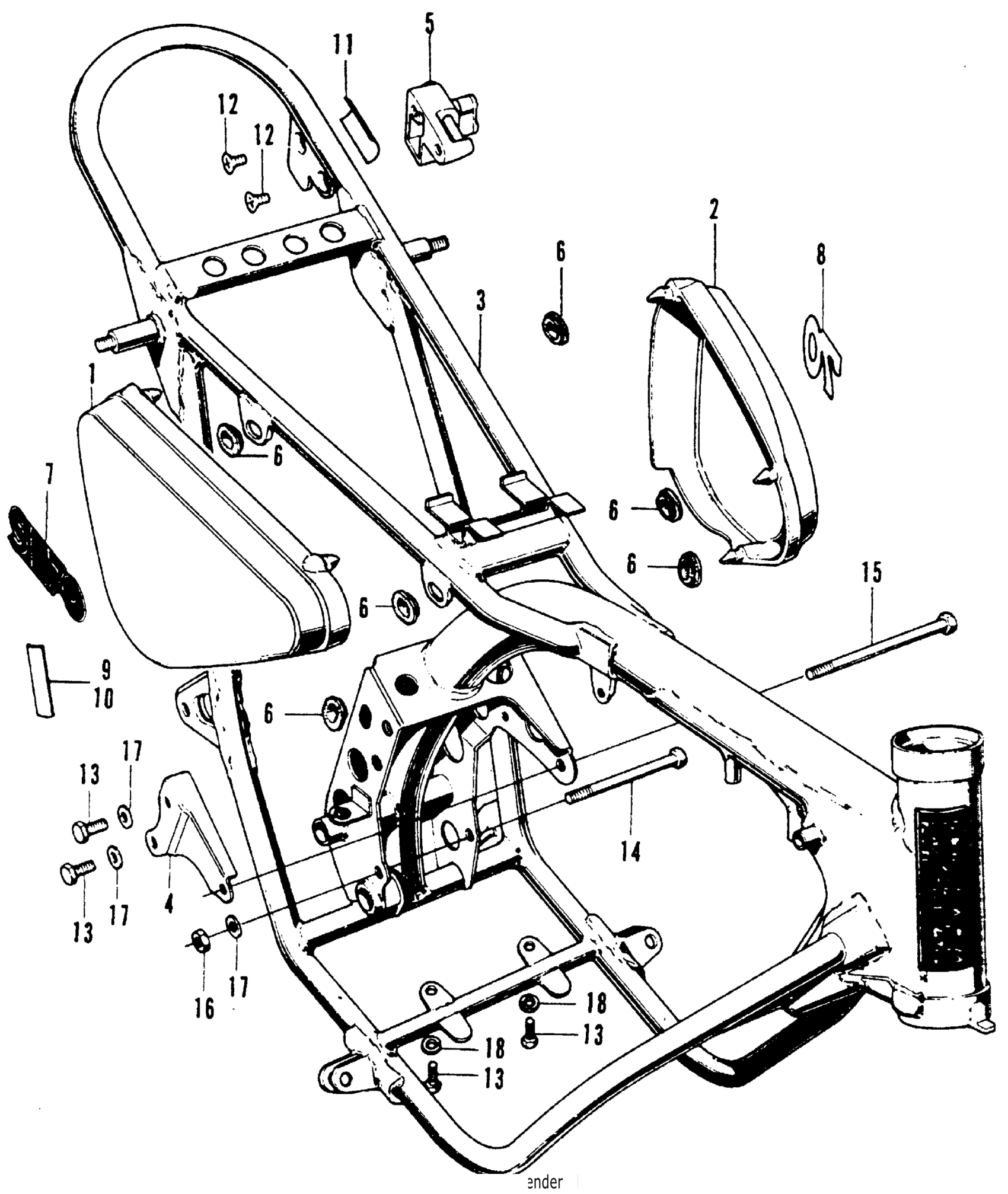

Honda SL70A MOTORCYCLE, JPN, VIN# SL70-1000001 FRAME + SIDE COVER Diagram

#

Description
Price

1

COVER, R. SIDE *Y23* (SUMMER YELLOW) (NOT AVAILABLE) This part replaces 17231-118-000CC.

17231-118-770CC

Unavailable

1

COVER, R. SIDE *PB52* (AQUARIUS BLUE) (NOT AVAILABLE) This part replaces 17231-118-000DY.

17231-118-770DY

Unavailable

1

COVER, R. SIDE *R25* (LIGHT RUBY RED) (NOT AVAILABLE) This part replaces 17231-118-000HX.

17231-118-770HX

Unavailable

1

COVER, R. SIDE *Y23* (SUMMER YELLOW) (NOT AVAILABLE)

17231-118-770CC

Unavailable

1

COVER, R. SIDE *PB52* (AQUARIUS BLUE) (NOT AVAILABLE)

17231-118-770DY

Unavailable

1

COVER, R. SIDE *R25* (LIGHT RUBY RED) (NOT AVAILABLE)

17231-118-770HX

Unavailable

2

COVER, L. SIDE *Y23* (SUMMER YELLOW) (NOT AVAILABLE) This part replaces 17331-118-000CC.

17331-118-770CC

Unavailable

2

COVER, L. SIDE *PB52* (AQUARIUS BLUE) (NOT AVAILABLE) This part replaces 17331-118-000DY.

17331-118-770DY

Unavailable

2

COVER, L. SIDE *R25* (LIGHT RUBY RED) (NOT AVAILABLE) This part replaces 17331-118-000HX.

17331-118-770HX

Unavailable

2

COVER, L. SIDE *Y23* (SUMMER YELLOW) (NOT AVAILABLE)

17331-118-770CC

Unavailable

2

COVER, L. SIDE *PB52* (AQUARIUS BLUE) (NOT AVAILABLE)

17331-118-770DY

Unavailable

2

COVER, L. SIDE *R25* (LIGHT RUBY RED) (NOT AVAILABLE)

17331-118-770HX

Unavailable

3

FRAME *NH10M* (DARK SILVER METALLIC) (NOT AVAILABLE) This part replaces 50100-118-670S.

50100-118-770S

Unavailable

3

FRAME *NH10M* (DARK SILVER METALLIC) (NOT AVAILABLE)

50100-118-770S

Unavailable

4

PLATE, ENGINE HANGER SET *NH10M* (DARK SILVER METALLIC) (NOT AVAILABLE)

50356-118-000S

Unavailable

6

GROMMET, AIR CLEANER HOUSING

83551-300-000

$3.67

7

EMBLEM, SIDE COVER (NOT AVAILABLE)

87128-118-000

Unavailable

9

LABEL, CAUTION (NOT AVAILABLE)

87505-114-670

Unavailable

13

BOLT, HEX. (8X16) This part replaces 92000-08016-0A.

92101-08016-0A

$1.49

13

BOLT, HEX. (8X16)

92101-08016-0A

$1.49

14

BOLT, HEX. (8X98) This part replaces 92000-08098-0A.

92101-08098-0A

Unavailable

15

BOLT, HEX. (8X111) (NOT AVAILABLE)

92000-08111-0A

Unavailable

16

NUT, HEX. (8MM)

94001-08000-0S

$1.49

17

WASHER, PLAIN (8MM)

94101-08000

$1.49

18

WASHER, SPRING (8MM)

94111-08000

$1.49
